Product picture

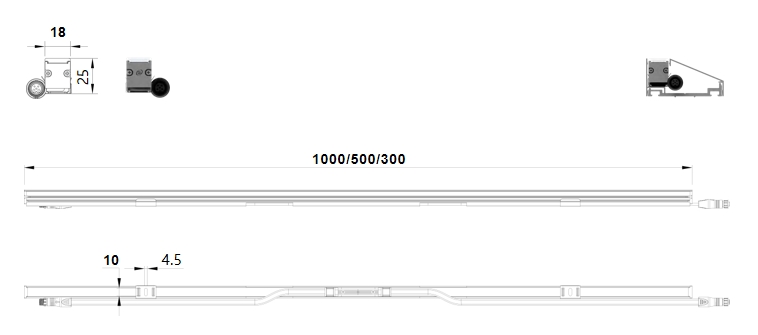

Product Size

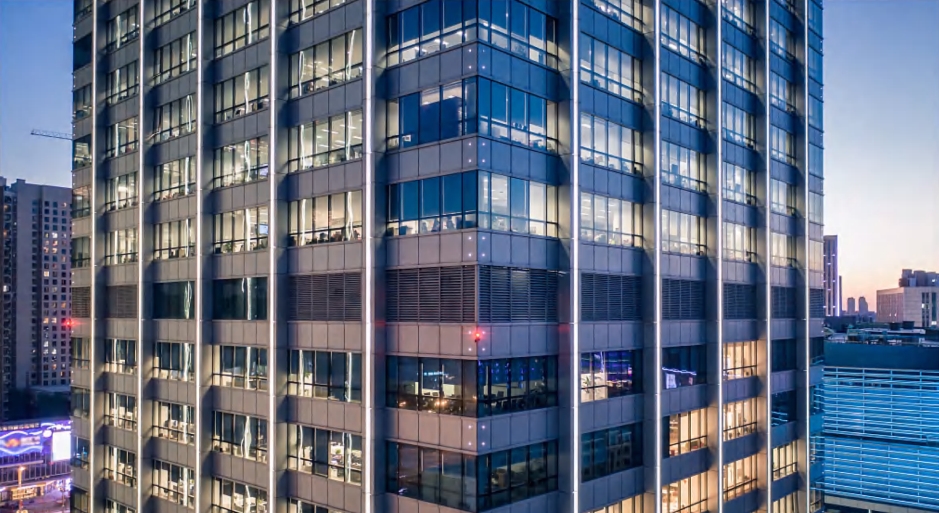

Real case
Product Specification
| Parameter | Description |
|---|---|
| Body Material | 6063-T5 aerospace-grade aluminum alloy lamp body, ADC12 aluminum alloy end cap, 3mm ultra-clear tempered glass, 304 stainless steel snap-fit bracket, imported acrylic lampshade |
| Surface preparation | Nanometer-grade high-weather and corrosion-resistant powder electrostatic coating (meets SMO1 neutral salt spray test) |
| Physical size | L1000 (500/300) * W18 * H25 (Standard Snap-on Bracket) |
| Product Power | 15W/m |
| Product Color Temperature | RGBW、RGB、2200-6500K |
| Input voltage | DC24V |
| Control method | DMX512 、ON/OFF |
| Level of protection | IP65 |
| Light Angle | 120° |
| Working temperature | -35~45℃ |
| Product weight | 0.55Kg |
More Models
| Product line | Product model | Length | Input voltage | Power | Control method | Number of segments | Particle count | Color temperature | Angle |
|---|---|---|---|---|---|---|---|---|---|
| B0501S | 1m | DC24V | 15W | ON/OFF | / | 96 | 2200K-6500K | 120° | |
| B0502S | 0.5m | DC24V | 7.5W | ON/OFF | / | 48 | 2700K-6500K | 120° | |
| B0503S | 0.3m | DC24V | 5W | ON/OFF | / | 24 | 2700K-6500K | 120° | |
| B0504C | 1m | DC24V | 15W | DMX512 | 16 | 96 | RGBW (3000K、4000K、5000K) | 120° | |
| B0505C | 0.5m | DC24V | 7.5W | DMX512 | 8 | 48 | RGBW (3000K、4000K、5000K) | 120° | |
| B0506C | 0.3m | DC24V | 5W | DMX512 | 4 | 24 | RGBW (3000K、4000K、5000K) | 120° | |
| Aquarius18 wide-25 high | B0507C | 1m | DC24V | 15W | DMX512 | 8 | 96 | RGBW (3000K、4000K、5000K) | 120° |
| B0508C | 0.5m | DC24V | 7.5W | DMX512 | 4 | 48 | RGBW (3000K、4000K、5000K) | 120° | |
| B0509C | 0.3m | DC24V | 5W | DMX512 | 2 | 24 | RGBW (3000K、4000K、5000K) | 120° | |
| B0510C | 1m | DC24V | 15W | DMX512 | 16 | 96 | 2200K-6500K | 120° | |
| B0511C | 0.5m | DC24V | 7.5W | DMX512 | 8 | 48 | 2200K-6500K | 120° | |
| B0512C | 0.3m | DC24V | 5W | DMX512 | 4 | 24 | 2200K-6500K | 120° | |
| B0513C | 1m | DC24V | 15W | DMX512 | 8 | 96 | 2200K-6500K | 120° | |
| B0514C | 0.5m | DC24V | 7.5W | DMX512 | 4 | 48 | 2200K-6500K | 120° | |
| B0515C | 0.3m | DC24V | 5W | DMX512 | 2 | 24 | 2200K-6500K | 120° |
Optional beam angle:

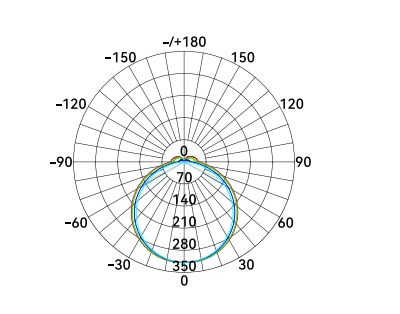

Monochromatic-120°LightDistributionCurve:

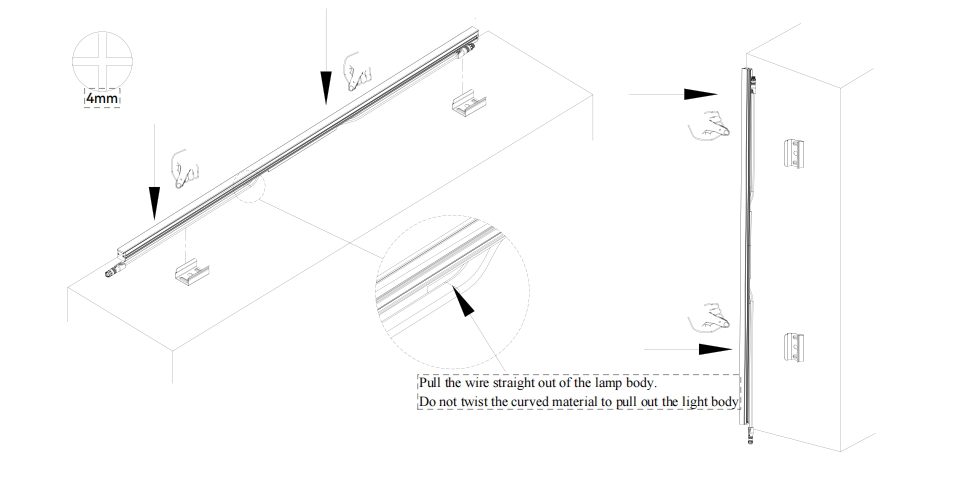

Frst, lock the position of the spring clip so that the two spring clips are collinear and parallel. Press the lamp body in the direction of the spring clip until the spring clip is completely embedded in the lamp body, and then install the anti-fall chain.

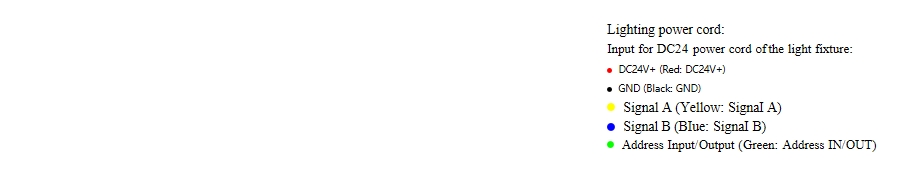

Lighting wiring: CabIe connection (single-color constant, single-color variable, four-color variable)
Lighting Wiring: CabIe Connection (single-Color Permanent Illumination)
