Pixel Video
Product picture

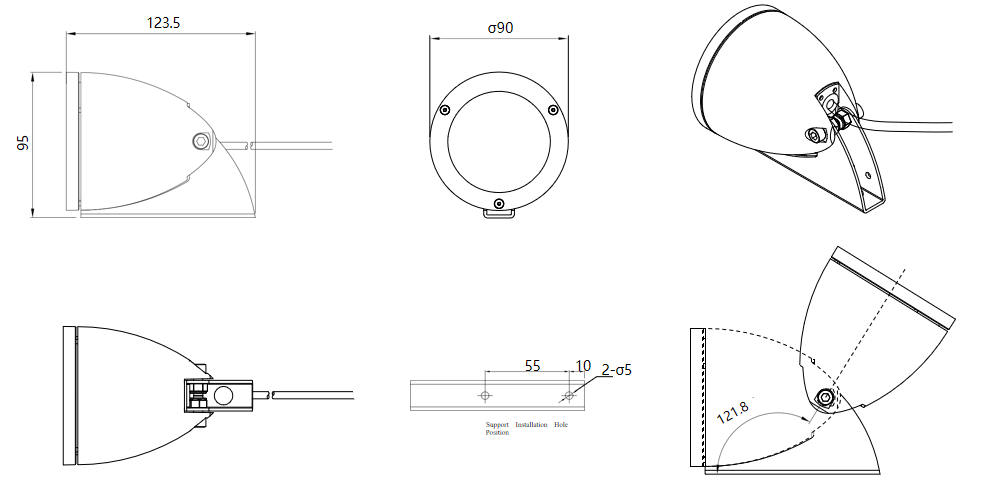

Product Size

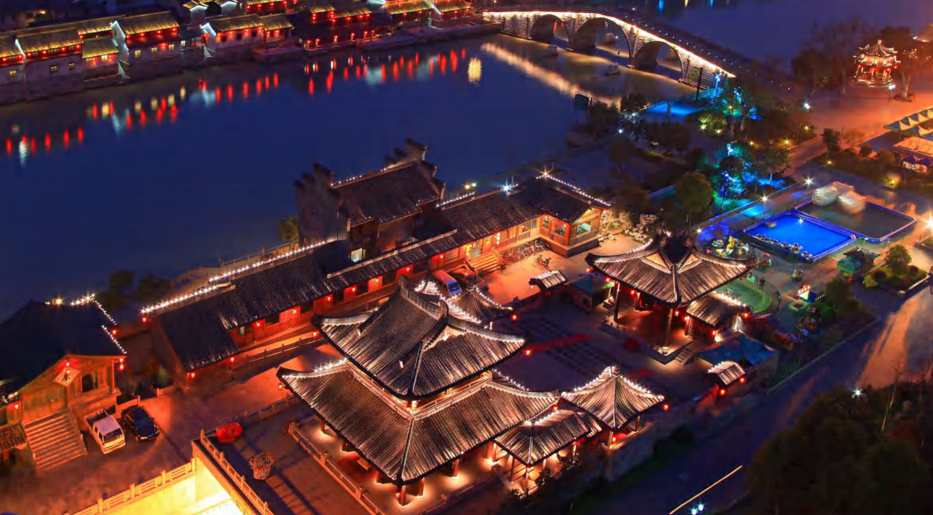

Real case
Product Specification
| Lamp Body Material | ADC12 aluminum alloy lamp body, lamp cover, 4mm ultra-white tempered glass, 6063 aluminum alloy bracket, 304 stainless steel card tile bracket |
| Surface Treatment | Nano-level high weather resistance and anti-corrosion powder electrostatic spraying (can pass 500H neutral salt spray test) |
| Physical Dimension | L158W90H95mm (standard bracket with visor) |
| Product Power | 6-12W |
| Product Color Temperature | RGBW, RGB, 2200-6500K |
| Input Voltage | DC24V |
| Control Mode | DMX512, ON/OFF |
| Protection Grade | IP65 |
| Beam Angle | 5°, 10°, 20°, 30°, 40°, 50° |
| Operating Temperature | -35~45℃ |
| Product weight | 0.6Kg |
More Models
| Product mo-del | Input voltage | Power | Control method | Colour te–mperature | The number of particles | Angle |
| K0201S | DC24V | 12w | ON/OFF | 2200-6500K | 5 | 10 、20 、30 、40 、50 |
| K0202S | DC24V | 9w | ON/OFF | 2200-6500K | 3 | 5 、 10 、20 、30 、40 、50 |
| K0203C | DC24V | 12w | DMX512 | 2200-6500K | 5 | 10 、20 、30 、40 、50 |
| K0204C | DC24V | 9w | DMX512 | 2200-6500K | 3 | 5 、 10 、20 、30 、40 、50 |
| K0205C | DC24V | 12w | DMX512 | RGBw (3000K、4000K、5000K) | 5 | 10 、20 、30 、40 、50 |
Optional beam angle：

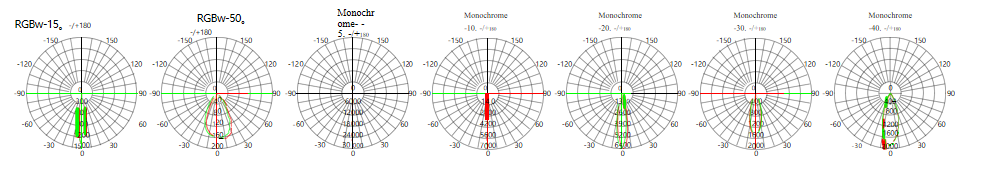

Light distribution curve:

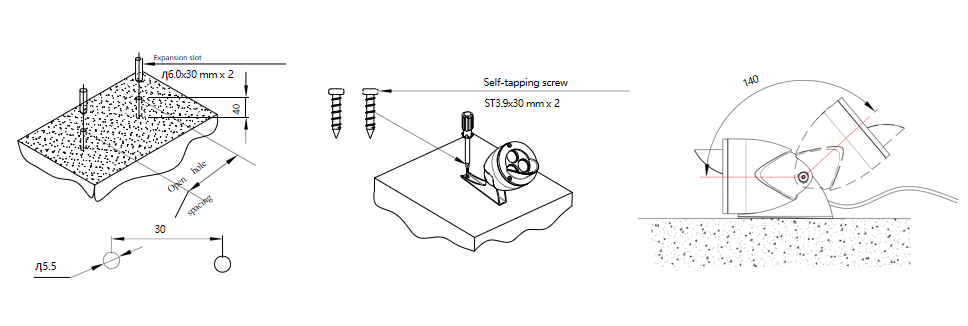

Make the installation hole and bury two expansion pipes
Use two self-tapping screws to secure it

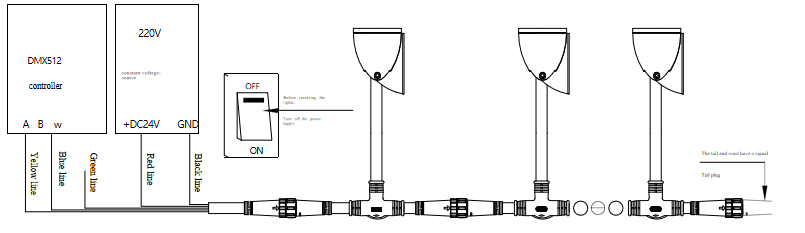

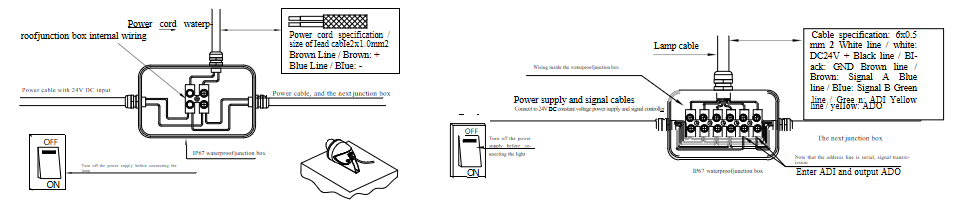

Schematic diagram (low pressure, two core bare wire) DC24V Schematic diagram of lotus belt control integrated wiring (low pressure, six-core bare wire) DC24V
Schematic diagram of lotus belt control integrated wiring (low pressure, one inlet and one female connector) DC24V
