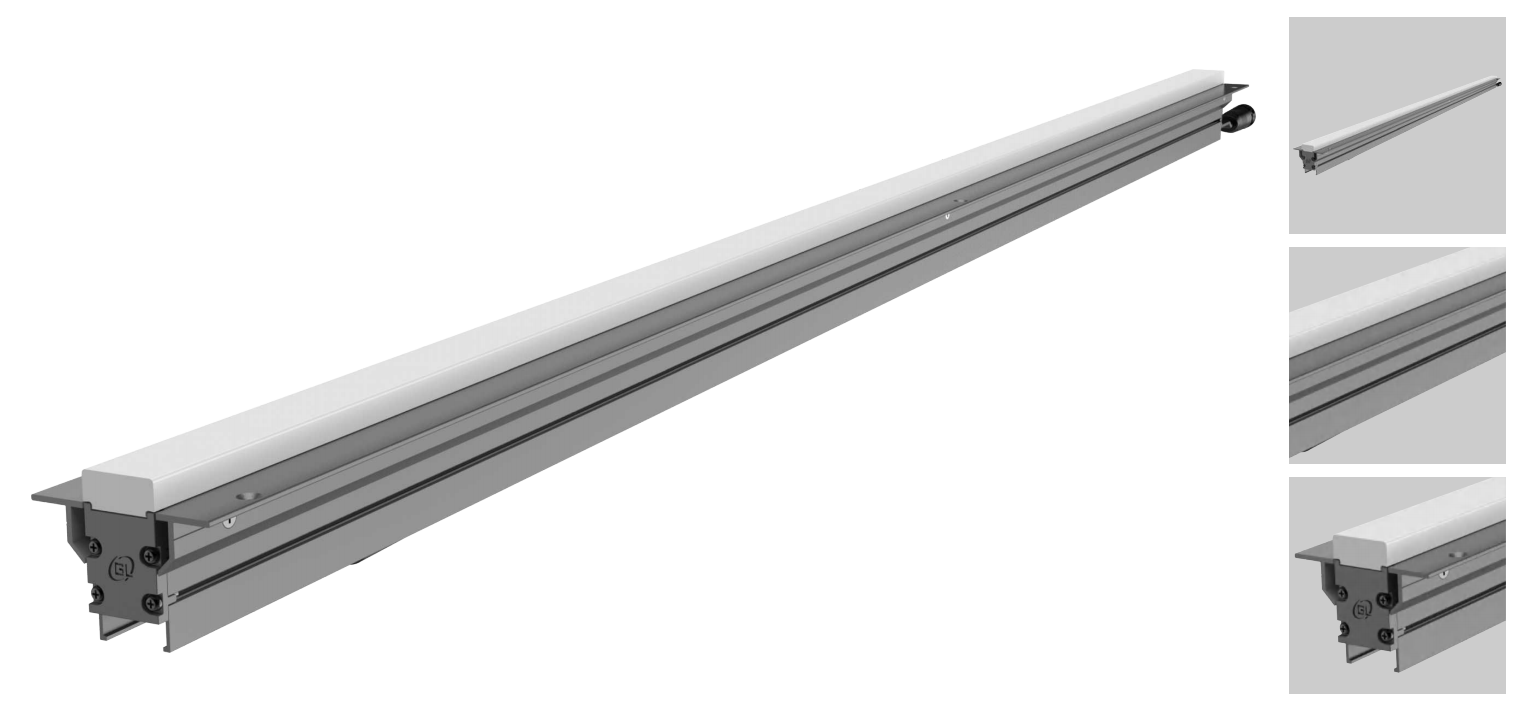

Product picture

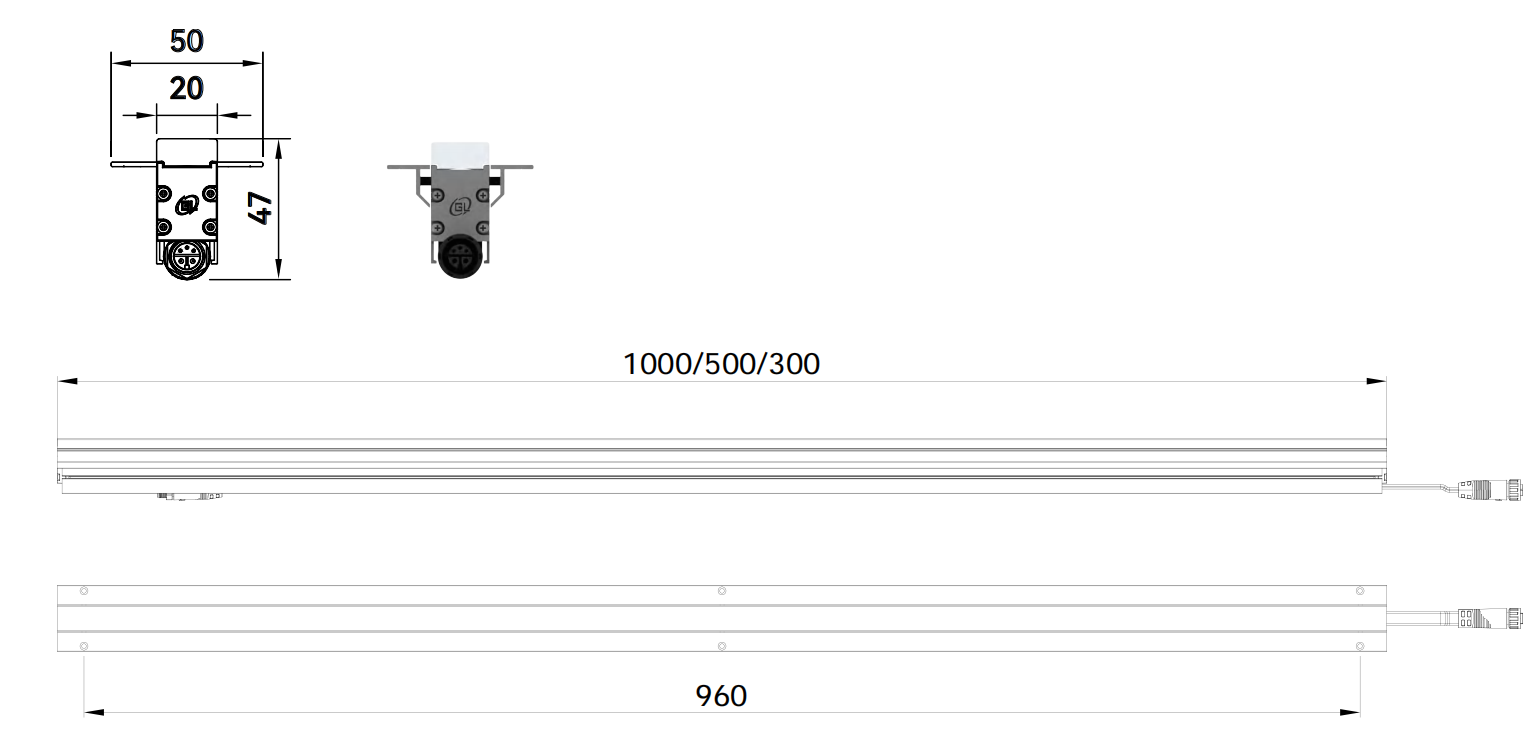

Product Size

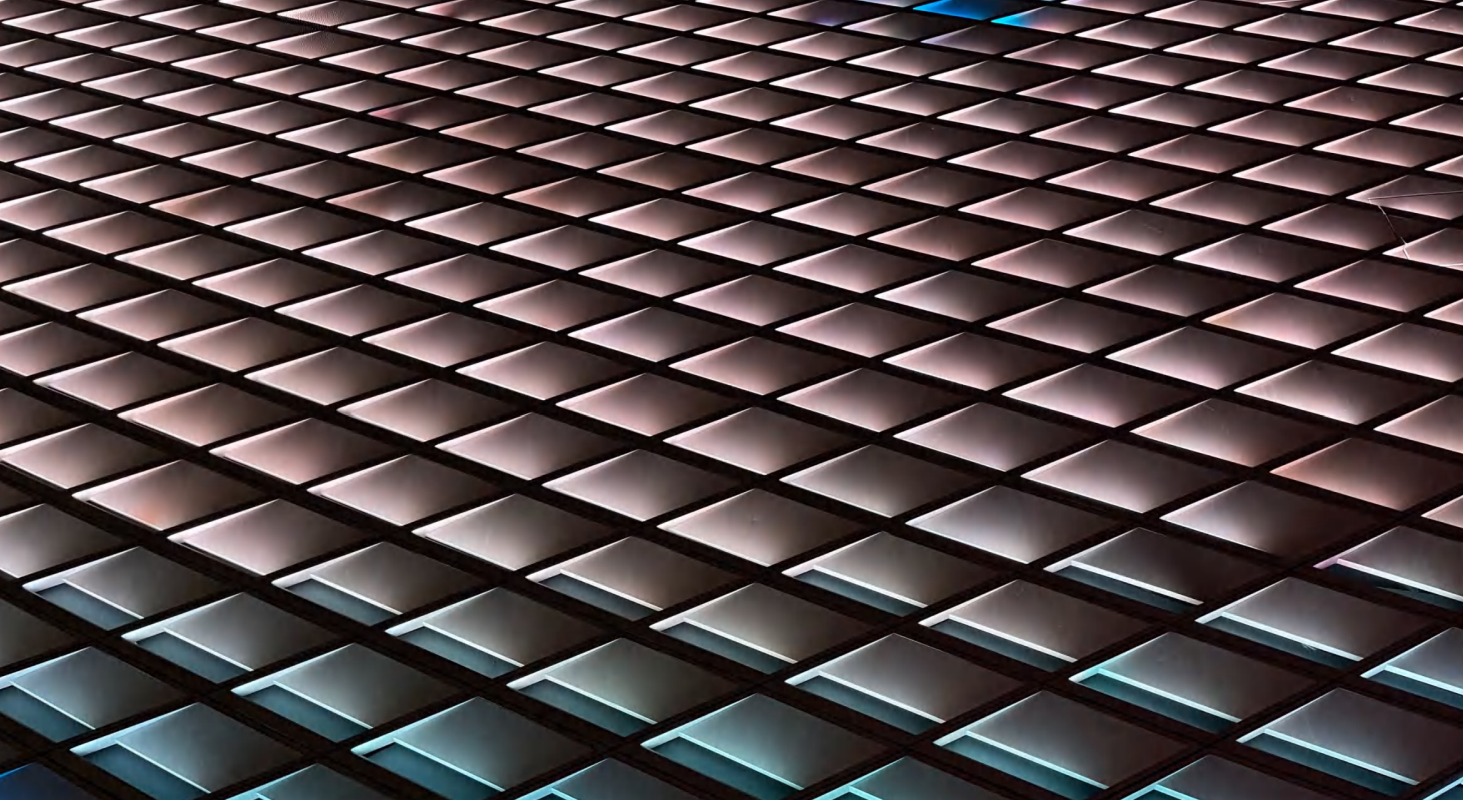

Real case
Product Specification
| Light body material | 6063-T5 aviation grade aluminum alloy light body, ADC 12 aluminum alloy end cover, 3mm ultra-white tempered glass, 304 stainless steel buckle bracket, imported raw material acrylic lampshade |
| Surface preparation | Electrostatic spraying of nanoscale high weather corrosion resistance powder (through 500H neutral salt spray test) |
| Physical size | L1000 (500 / 300) * W50 * H47 (standard wing) |
| Product power | 14W/m |
| Product color temperature | RGBW、RGB、2200-6500K |
| Input voltage | DC24V、DC48V |
| Control method | DMX512、ON/OFF |
| Levels of protection | IP65 |
| Luminescence Angle | 120° |
| Working temperature | -35~45℃ |
| Product weight | 0.8Kg |
More Models
| Product line | Product model | Length | Input voltage | Power | Control method | Section number | The number of particles | Colour temperature | Angle |
| Tianqin-flying wing | B0801S | 1 Meters | DC24V | 14W | ON/OFF | / | 48 | 2200K-6500K | 120° |
| B0802S | 0.5 Meters | DC24V | 7W | ON/OFF | / | 24 | 2700K-6500K | 120° | |
| B0803S | 0.3 Meters | DC24V | 4.7W | ON/OFF | / | 16 | 2700K-6500K | 120° | |
| B0804C | 1 Meters | DC24V | 14W | DMX-4 color | 16 | 48 | RGBw unification | 120° | |
| B0805C | 0.5 Meters | DC24V | 7W | DMX-4 color | 8 | 24 | RGBw unification | 120° | |
| B0806C | 0.3 Meters | DC24V | 4.7W | DMX-4 color | 4 | 16 | RGBw unification | 120° | |
| B0807C | 1 Meters | DC24V | 14W | DMX-4 color | 8 | 48 | RGBw unification | 120° | |
| B0808C | 0.5 Meters | DC24V | 7W | DMX-4 color | 4 | 24 | RGBw unification | 120° |
Optional beam angle:

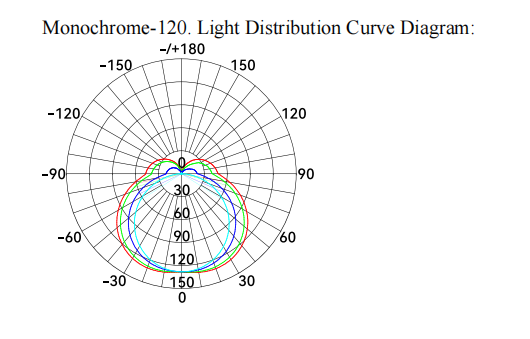

Monochromatic-120°LightDistributionCurve:

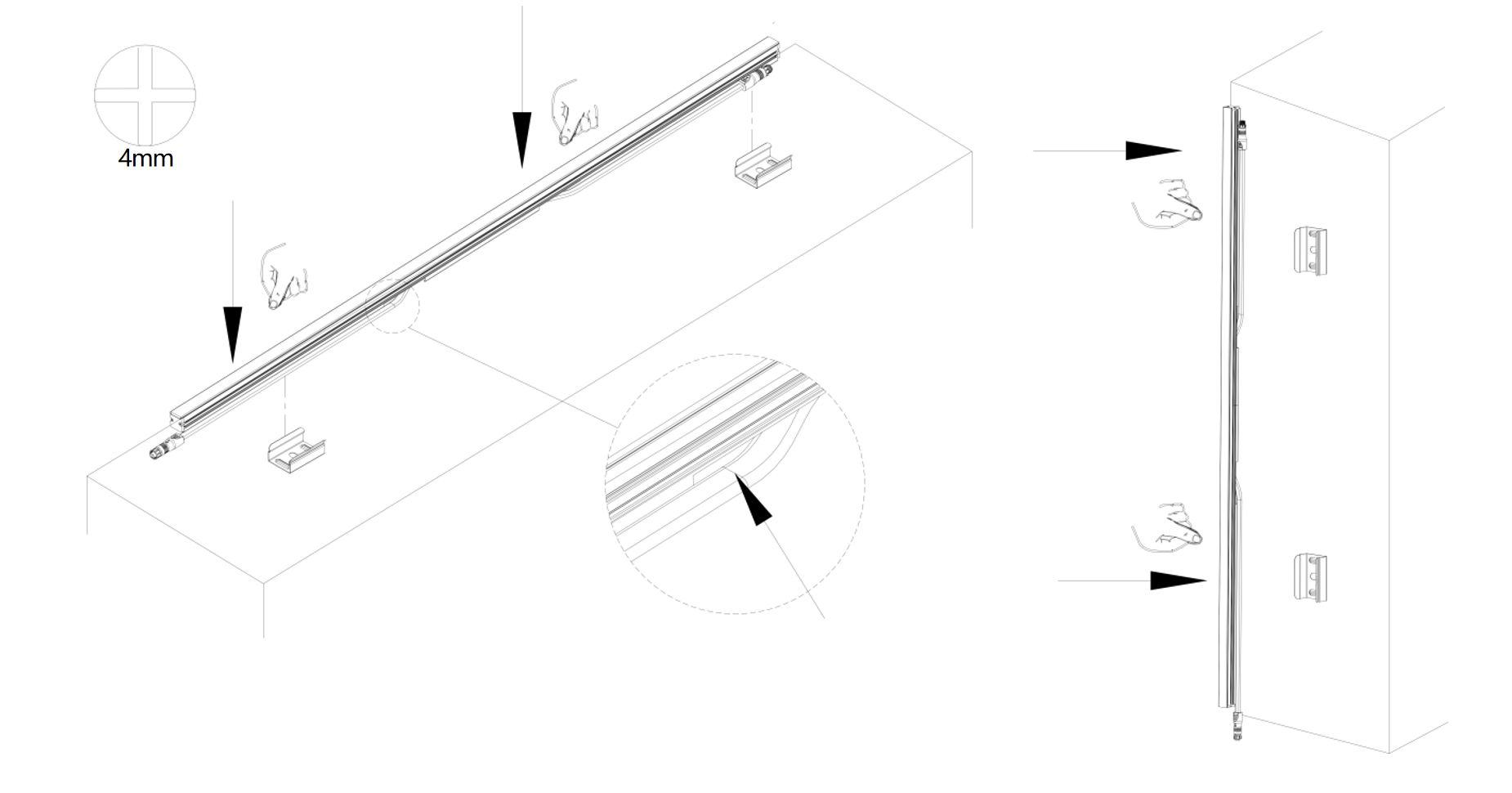

Fits for a slot width of 22-39 .The flying wing is 50 sides wide .Secure the flying wing with ST2.9 self-tapping headscrew

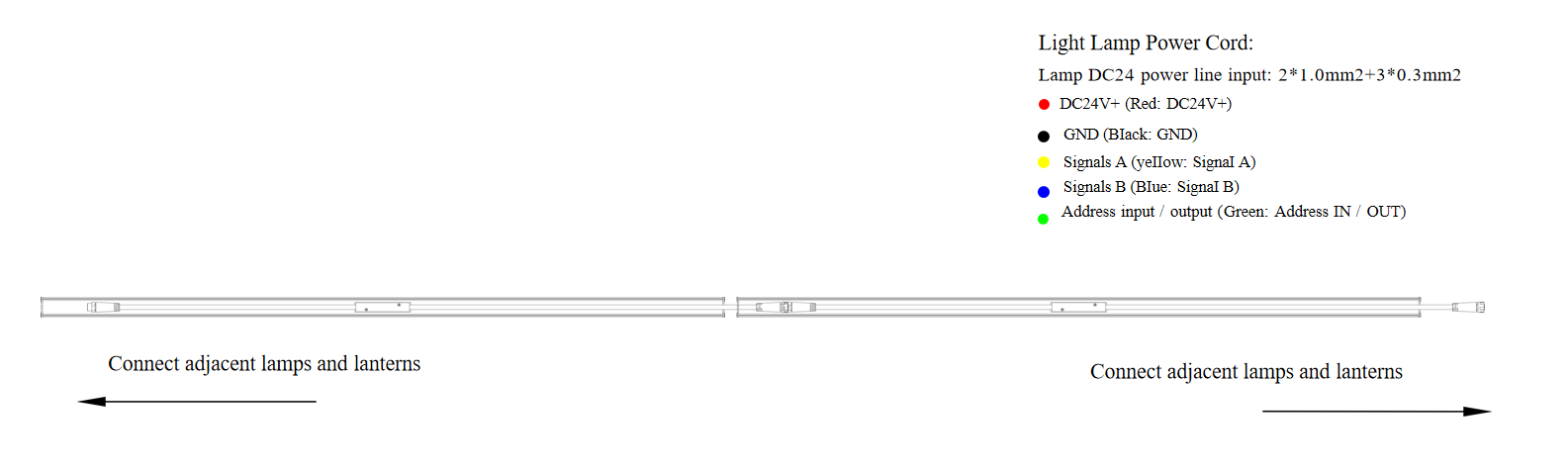

Lamp Wiring CabIe Connection (monochrome Constant Light, Four-Color Change)
The lamp outlet line, one short line is the male joint, the other long line is the female joint, when the two lights are connected, the male joint is connected with the female joint of another lamp
