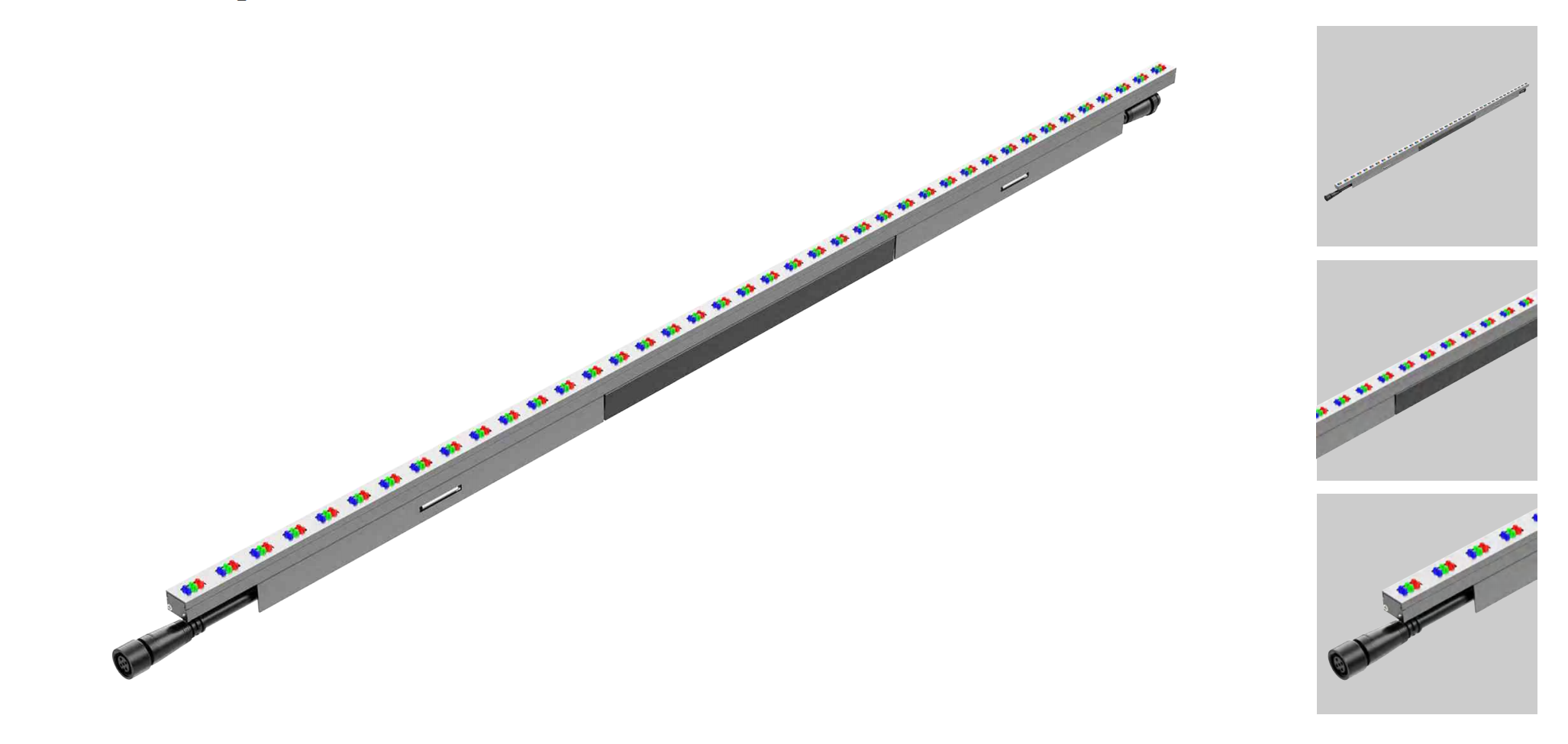

Product picture

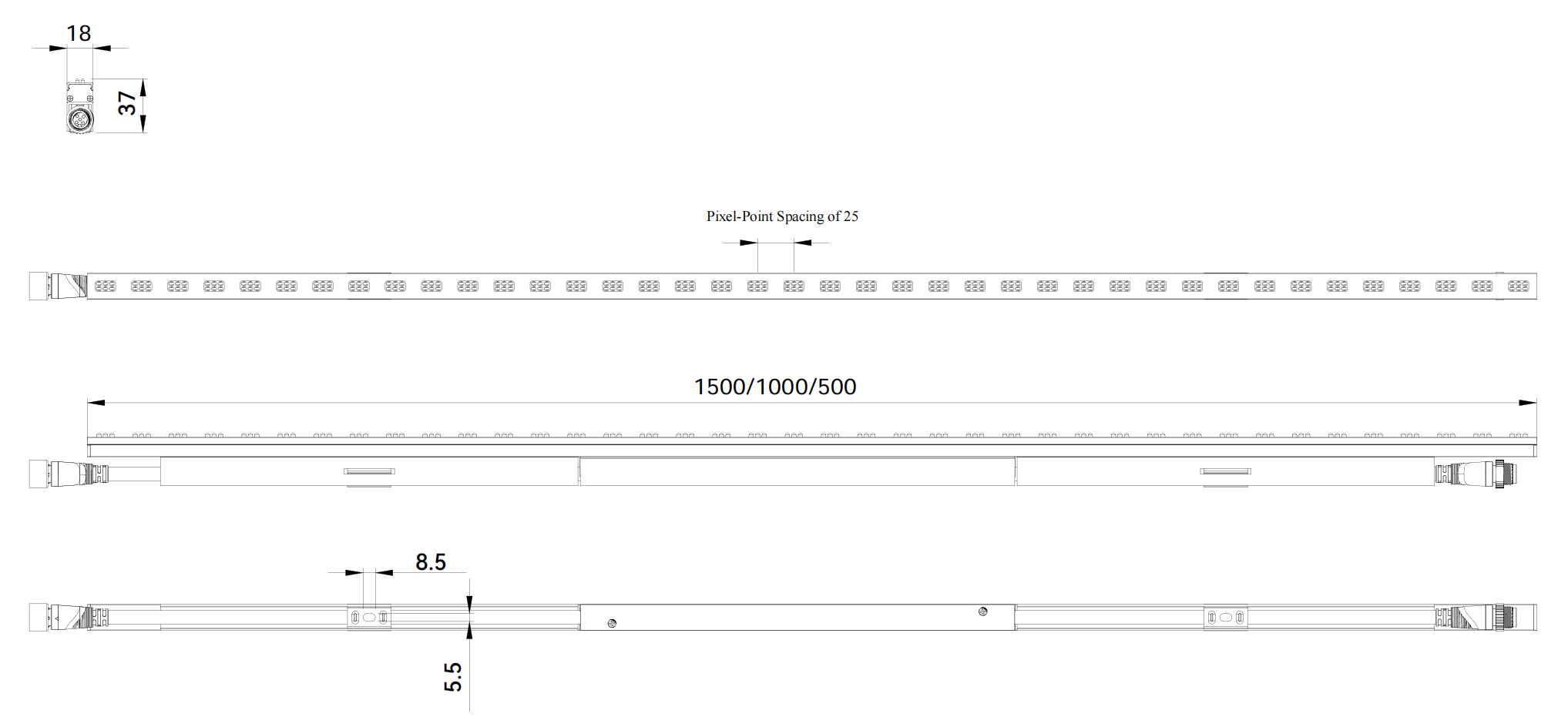

Product Size

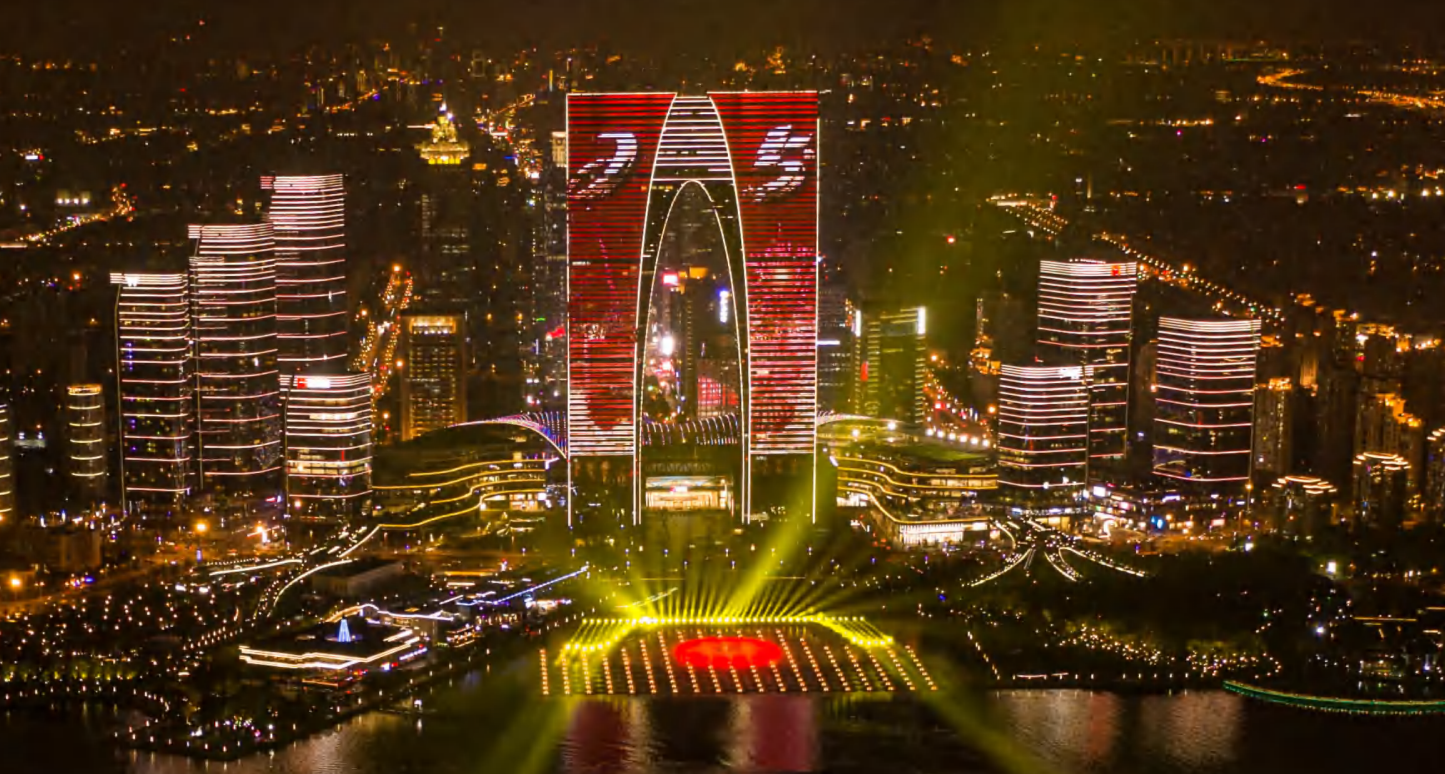

Real case
Product Specification
| Item | Description |
|---|---|
| Light body material | 6063-T5 aviation grade aluminum alloy lamp body and face cover, 3003 aluminum alloy end cover, 304 stainless steel buckle bracket |
| Surface preparation | Electrostatic spraying of nanoscale high weather corrosion resistant powder (through 500H neutral salt spray test) |
| Physical size | L1500 (1000 / 500) * w18 * H37mm (Standard bracket) |
| Product power | 18W/m |
| Product color temperature | RGB |
| Input voltage | DC24V、DC48V |
| Control method | DMX512 |
| Levels of protection | IP65 |
| Luminescence Angle | 120° |
| Working temperature | -35~45℃ |
| Product weight | About 0.8kg |
More Models
| Product line | Product model | Length | Input voltage | Power | Control method | Section number | The number of particles | Color temperature | Angle |
| Reflecting on the monthdip18mm | C0201C | 1.5 Meters | DC48V | 27W | DMX512 | 60 | 360 | R+G+B | 120° |
| C0202C | 1 Meters | DC48V | 18W | DMX512 | 40 | 240 | R+G+B | 120° | |
| C0203C | 0.5 Meters | DC48V | 9W | DMX512 | 20 | 120 | R+G+B | 120° | |
| C0204C | 1.5 Meters | DC48V | 14W | DMX512 | 60 | 180 | R+G+B | 120° | |
| C0205C | 1 Meters | DC48V | 7W | DMX512 | 40 | 120 | R+G+B | 120° | |
| C0206C | 0.5 Meters | DC48V | 4W | DMX512 | 20 | 60 | R+G+B | 120° | |
| C0207C | 1.5 Meters | DC48V | 27W | DMX512 | 60 | 360 | R+G+B | 120° | |
| C0208C | 1 Meters | DC48V | 18W | DMX512 | 40 | 240 | R+G+B | 120° | |
| C0209C | 0.5 Meters | DC48V | 9W | DMX512 | 20 | 120 | R+G+B | 120° | |
| C0210C | 1.5 Meters | DC48V | 14W | DMX512 | 60 | 180 | R+G+B | 120° | |
| C0211C | 1 Meters | DC48V | 7W | DMX512 | 40 | 120 | R+G+B | 120° | |
| C0212C | 0.5 Meters | DC48V | 4W | DMX512 | 20 | 60 | R+G+B | 120° |
ptional beam angle:

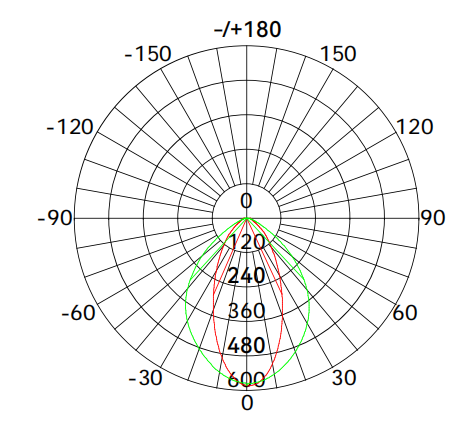

Power distribution curve:

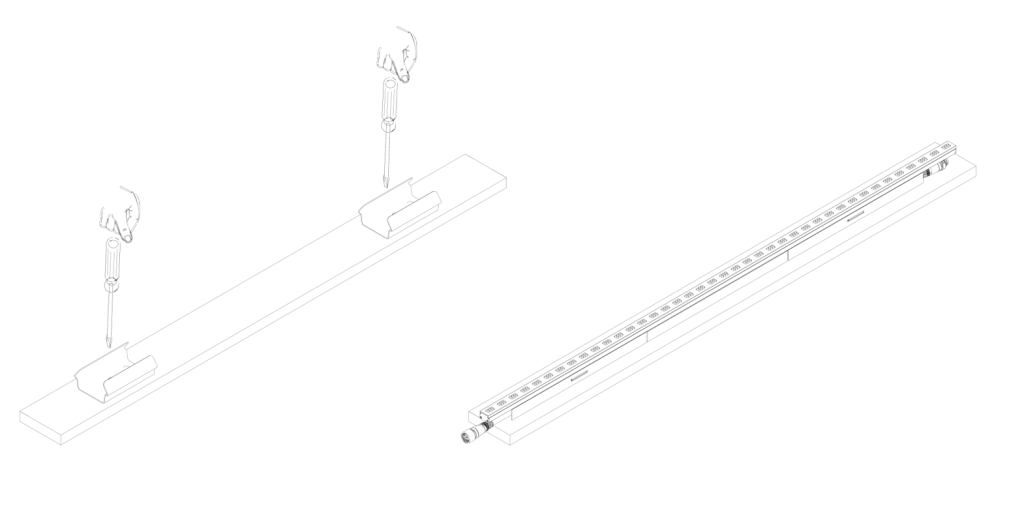

The shrapnel is attached to the connector The lamp is fixed to the shrapnel

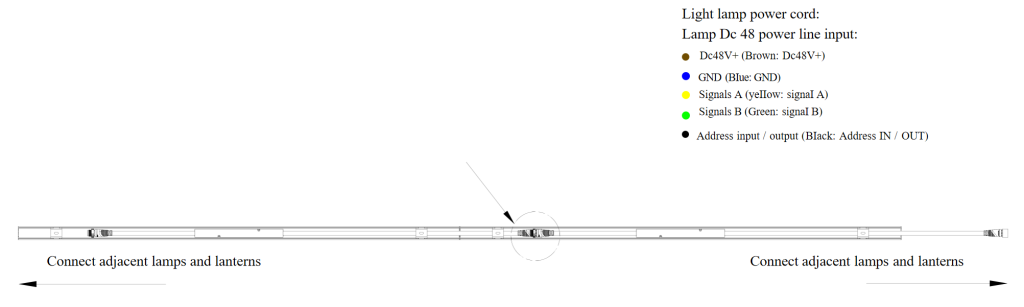

Lamp Wiring CabIe Connection (monochrome Constant Light, Four-Color Change)
The lamp outlet line, one short line is the male joint, the other long line is the female joint, when the two lights are connected, the male joint is connected with the female joint of another lamp
