LED projector A Chinese Odyssey Part One: Pandoras Box S-Ⅳ

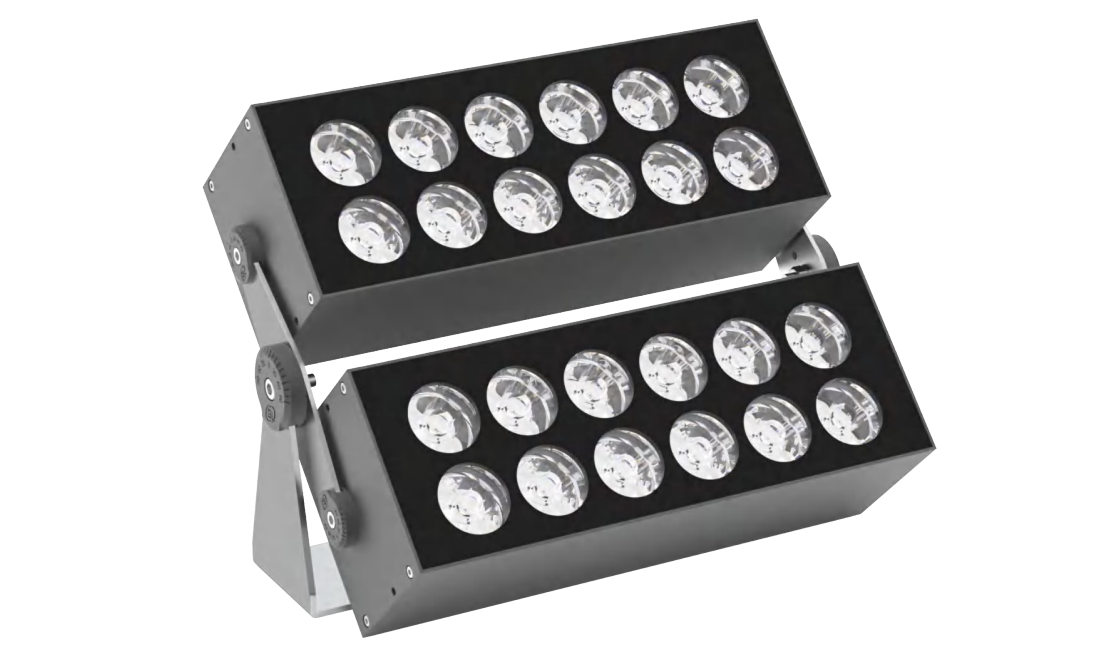

Product picture

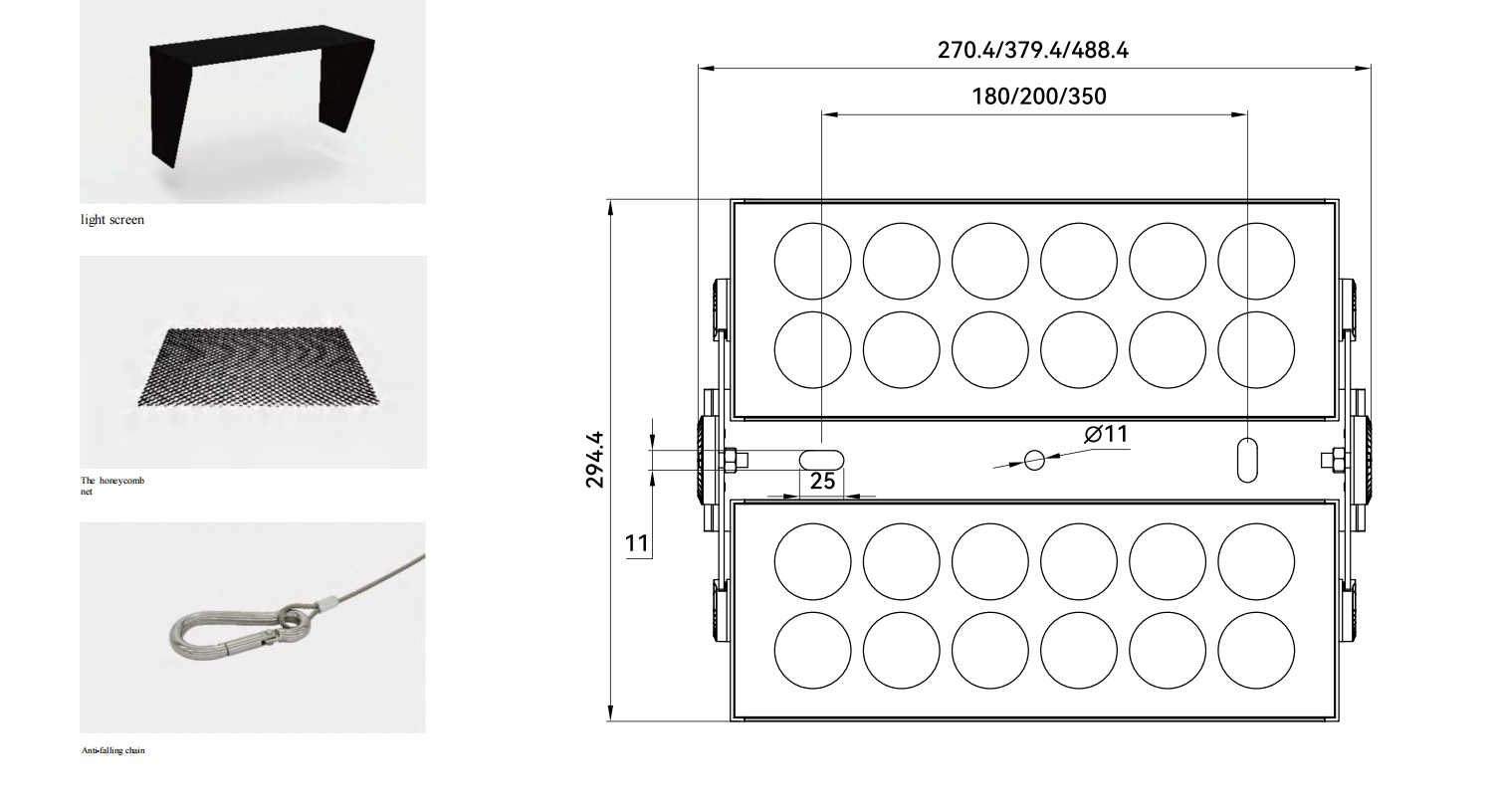

Product Size

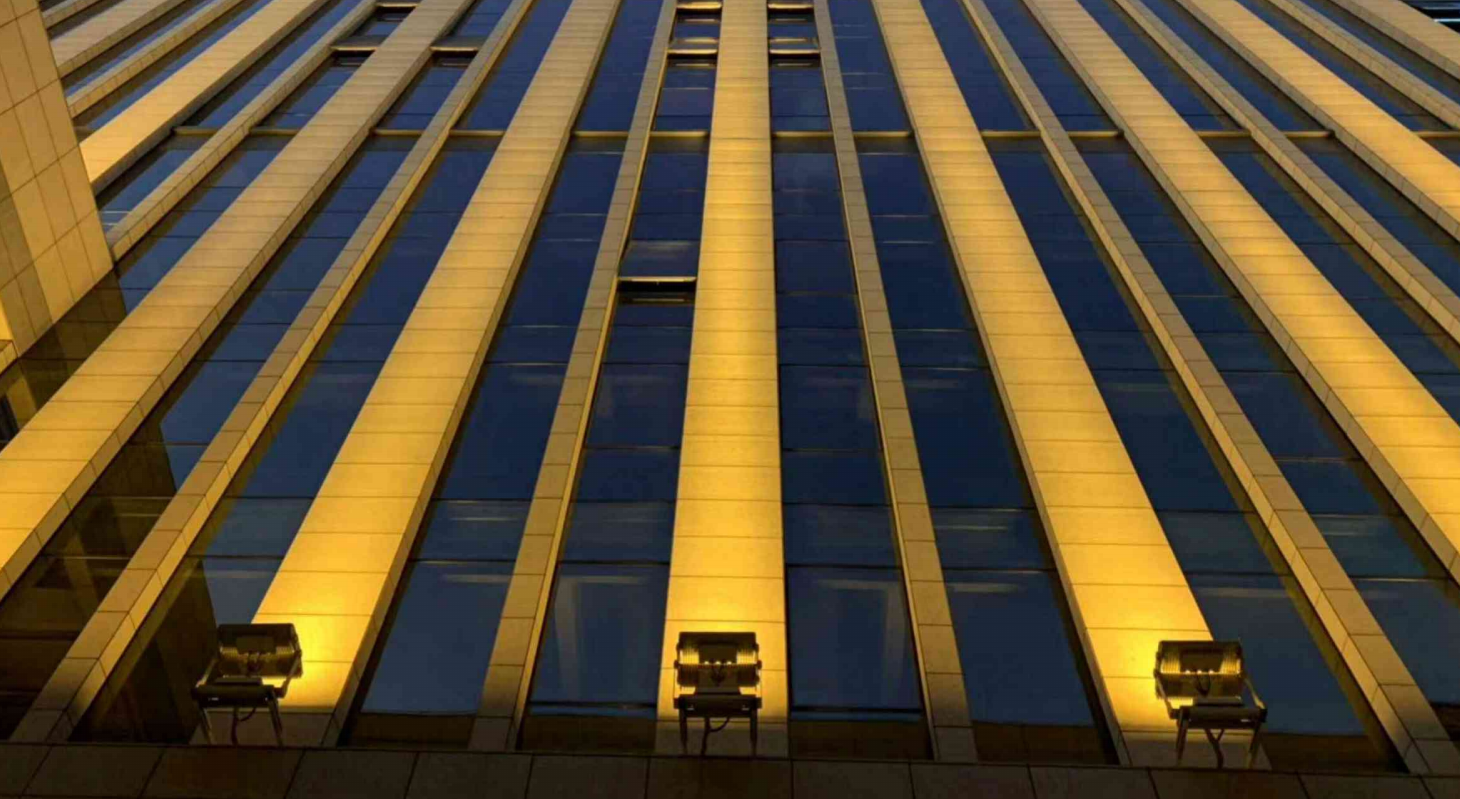

Real case

Product Specification

Item	Specification
Light body material	6063-T5 aviation grade aluminum alloy lamp body, ADC 12 aluminum alloy end cover, 4mm ultra-white tempered glass
Surface preparation	Electrostatic spraying of nanoscale high weather corrosion resistant powder (through 500H neutral salt spray test)
Physical size	L(488.4/379.4/270.4)W295H201mm
Product power	Maximum 200w
Product color temperature	RGBW、2200K-6500K
Input voltage	AC220V
Control method	DMX512、ON/OFF
Levels of protection	IP66
Luminescence Angle	3.8°、5°、10°、15°、20°、30°、40°、60°
Working temperature	-35~45℃
Product weight	Maximum of 9.8 Kg

More Models

Product model	Input voltage	Power	Control method	The number of particles	Colour temperature	Angle
H0401S	AC220V	200W	ON/OFF	72	2200K-6500K	10°、20°、30°、40°、60°
H0402S	AC220V	120W	ON/OFF	48	2200K-6500K	5°
H0403S	AC220V	144W	ON/OFF	24	2200K-6500K	3.8°
H0404S	AC220V	144W	ON/OFF	48	2200K-6500K	10°、20°、30°、40°、60°
H0405S	AC220V	72W	ON/OFF	36	2200K-6500K	5°
H0406S	AC220V	96W	ON/OFF	16	2200K-6500K	3.8°
H0407S	AC220V	80W	ON/OFF	24	2200K-6500K	10°、20°、30°、40°、60°
H0408S	AC220V	36W	ON/OFF	18	2200K-6500K	5°
H0409S	AC220V	48W	ON/OFF	8	2200K-6500K	3.8°
H0410C	AC220V	200W	DMX512	72	2200K-6500K	10°、20°、30°、40°、60°
H0411C	AC220V	120W	DMX512	48	2200K-6500K	5°
H0412C	AC220V	144W	DMX512	24	2200K-6500K	3.8°
H0413C	AC220V	160W	DMX512	72	R+G+B	10°、20°、30°、40°、60°
H0414C	AC220V	160W	DMX512	72	R+G+B+W (2200-6500K)	10°、20°、30°、40°、60°
H0415C	AC220V	200W	DMX512	72	RGBW (3000K、4000K、5000K)	15°、30°、40°、60°
H0416C	AC220V	144W	DMX512	48	2200K-6500K	10°、20°、30°、40°、60°
H0417C	AC220V	72W	DMX512	36	2200K-6500K	5°
H0418C	AC220V	96W	DMX512	16	2200K-6500K	3.8°
H0419C	AC220V	120W	DMX512	48	R+G+B	10°、20°、30°、40°、60°
H0420C	AC220V	120W	DMX512	48	R+G+B+W (2200-6500K)	10°、20°、30°、40°、60°
H0421C	AC220V	144W	DMX512	48	The RGBW is a four-in-one one	15°、30°、40°、60°
H0422C	AC220V	80W	DMX512	24	2200K-6500K	10°、20°、30°、40°、60°
H0423C	AC220V	36W	DMX512	18	2200K-6500K	5°
H0424C	AC220V	48W	DMX512	8	2200K-6500K	3.8°
H0425C	AC220V	60W	DMX512	24	R+G+B	10°、20°、30°、40°、60°
H0426C	AC220V	60W	DMX512	24	R+G+B+W (2200-6500K)	10°、20°、30°、40°、60°
H0427C	AC220V	80W	DMX512	24	RGBW (3000K、4000K、5000K)	15°、30°、40°、60°

Optional beam angle:

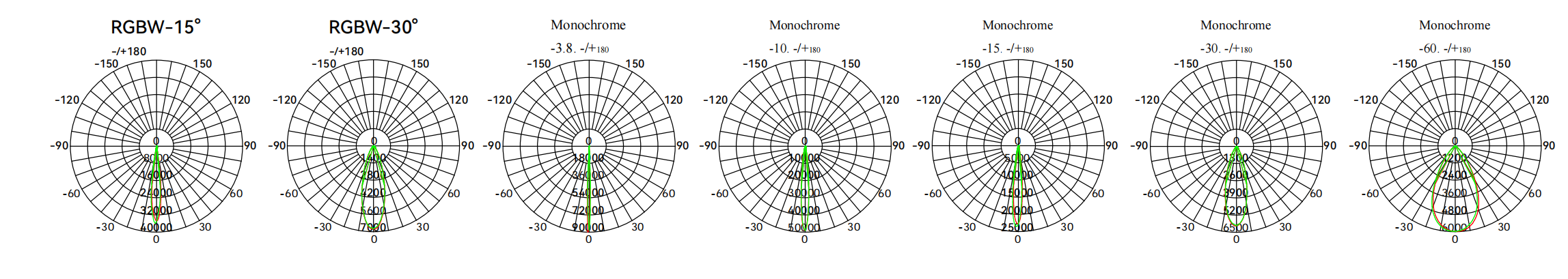

Power distribution curve:

Low-Voltage Controlled Fixture Wiring (Waterproof Connector)

Low-Voltage Monochrome Always-On Fixture Wiring (Waterproof Connector)

Requirements for the Number of Daisy-Chained Fixtures:

Based on the fixture plug and the cable equipped with the fixture: The current through the first fixture in each series chain shall not exceed 6A. Considering the power loss of the cable, the actual number of daisy-chained fixtures is calculated as: (6A * 24V) / Fixture Power.

Example: For a 24V fixture with 48W power, the actual number of daisy-chained fixtures is: (6A * 24V) / 48W = 3 PCS.
