Pixel Video

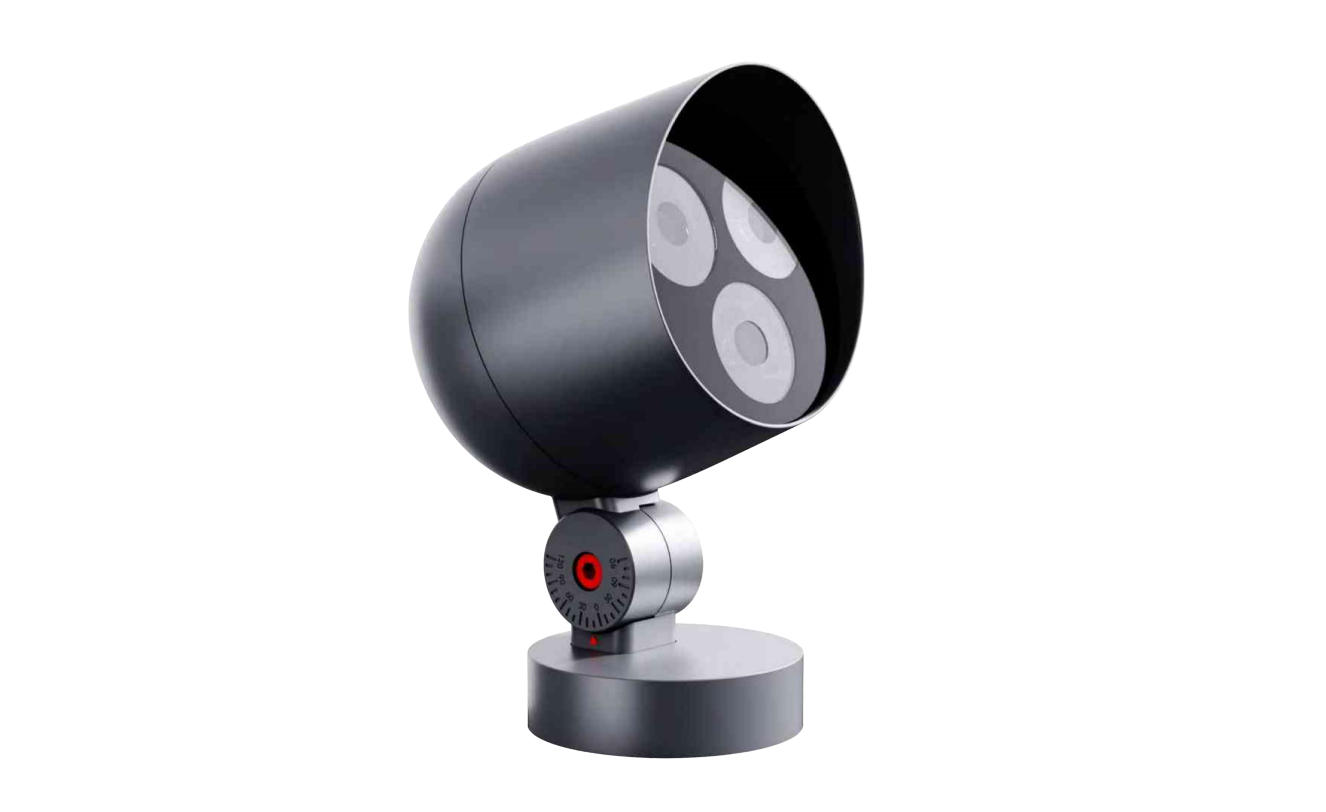

Product picture

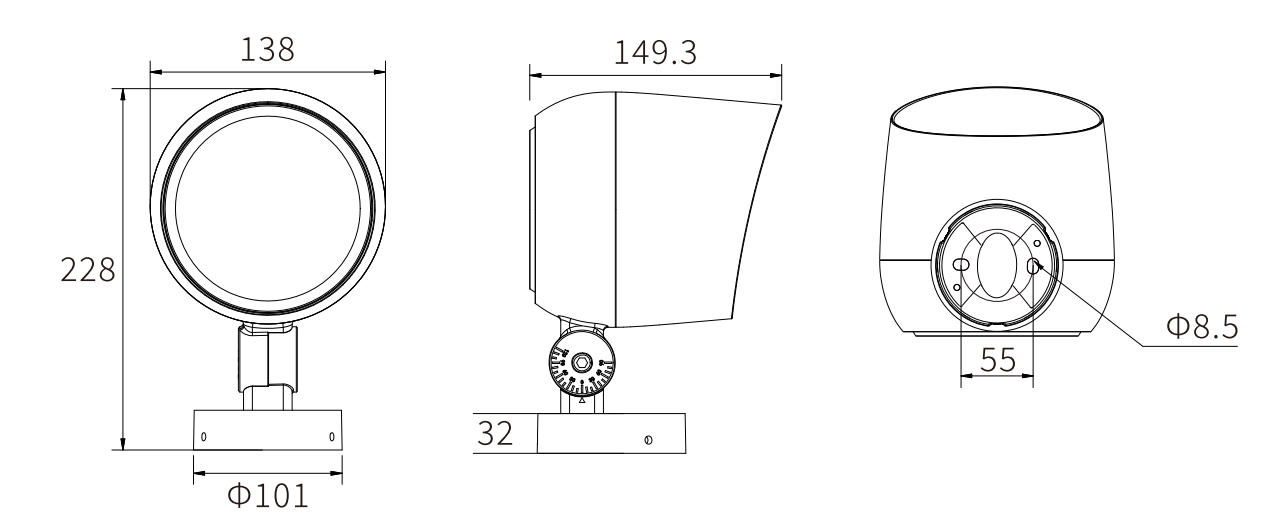

Product Size

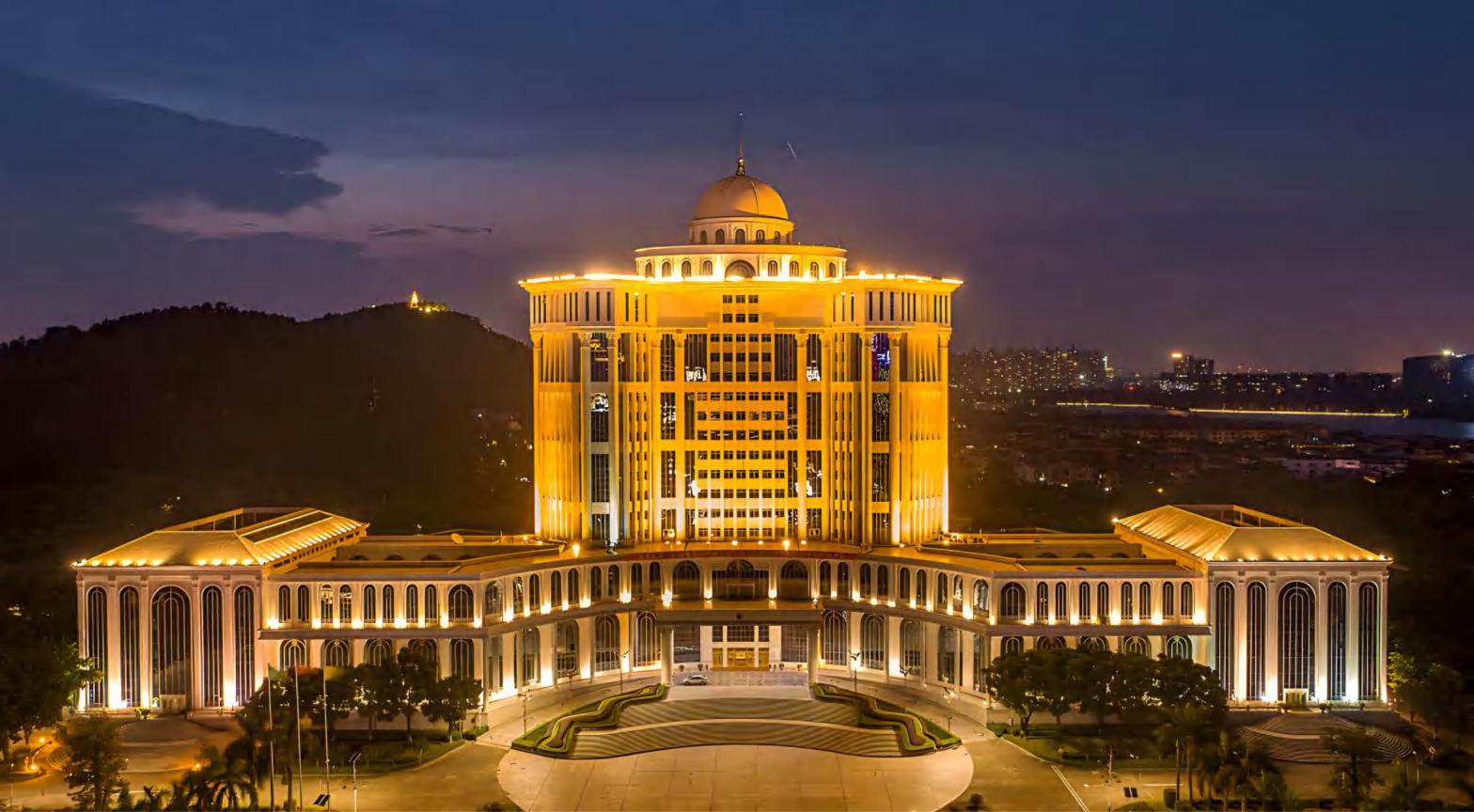

Real case
Product Specification
| Body material | ADC12 aluminum alloy lamp body, lamp cover and mounting base, 4mm ultra-clear tempered glass |
| Surface preparation | Nano-scale High Weather and Corrosion Resistance Electrostatic Spraying of Powder (Passing 500h Neutral Salt Spray Test) |
| Physical size | L149.3W138H228mm (standard base) |
| Product power | Maximum 36W |
| Product color temperature | RGBW、RGB、2200-6500K |
| Input voltage | DC24V、AC220V |
| Control method | DMX512、ON/OFF |
| Levels of protection | IP65 |
| Luminous angle | 3.8°、7°、10°、20°、30°、40°、50° |
| Working temperature | -35℃~45℃ |
| Product weight | 2.1Kg |
More Models
| Product model | Input voltage | Power | Control method | Colour temperature | Number of particles | Angle |
|---|---|---|---|---|---|---|
| I0201S | DC24 | 18W | ON/OFF | 2200-6500K | 10 | 10°、20°、30°、40°、50° |
| I0202S | DC24 | 18W | ON/OFF | 2200-6500K | 5 | 3.8° |
| I0203C | DC24 | 18W | DMX512 | 2200-6500K | 10 | 10°、20°、30°、40°、50° |
| I0204C | DC24 | 18W | DMX512 | 2200-6500K | 5 | 3.8° |
| Tang.T2 | DC24 | 18W | DMX512 | RGBW (3000K、4000K、5000K) | 10 | 10°、20°、30°、40°、50° |
| Tang.T2 | DC24 | 18W | DMX512 | RGBW (3000K、4000K、5000K) | 3 | 7° |
| I0205S | DC24 | 24W | ON/OFF | 2200-6500K | 12 | 10°、20°、30°、40°、50° |
| I0206S | DC24 | 24W | ON/OFF | 2200-6500K | 5 | 3.8° |
| I0207C | DC24 | 24W | DMX512 | 2200-6500K | 12 | 10°、20°、30°、40°、50° |
| I0208C | DC24 | 24W | DMX512 | 2200-6500K | 5 | 3.8° |
| Tang.T2 | DC24 | 24W | DMX512 | RGBW (3000K、4000K、5000K) | 10 | 10°、20°、30°、40°、50° |
| Tang.T2 | DC24 | 24W | DMX512 | RGBW (3000K、4000K、5000K) | 3 | 7° |
| Product model | Input voltage | Power | Control method | Colour temperature | Number of LEDs | Angle |
|---|---|---|---|---|---|---|
| I0209S | AC220 | 18W | ON/OFF | 2200-6500K | 10 | 10°、20°、30°、40°、50° |
| I0210S | AC220 | 18W | ON/OFF | 2200-6500K | 5 | 3.8° |
| I0211C | AC220 | 18W | DMX512 | 2200-6500K | 10 | 10°、20°、30°、40°、50° |
| I0212C | AC220 | 18W | DMX512 | 2200-6500K | 5 | 3.8° |
| Tang_T2 | AC220 | 18W | DMX512 | RGBW (3000K、4000K、5000K) | 10 | 10°、20°、30°、40°、50° |
| Tang_T2 | AC220 | 18W | DMX512 | RGBW (3000K、4000K、5000K) | 3 | 7° |
| I0213S | AC220 | 24W | ON/OFF | 2200-6500K | 12 | 10°、20°、30°、40°、50° |
| I0214S | AC220 | 24W | ON/OFF | 2200-6500K | 5 | 3.8° |
| I0215C | AC220 | 24W | DMX512 | 2200-6500K | 12 | 10°、20°、30°、40°、50° |
| I0216C | AC220 | 24W | DMX512 | 2200-6500K | 5 | 3.8° |
| Tang_T2 | AC220 | 24W | DMX512 | RGBW (3000K、4000K、5000K) | 10 | 10°、20°、30°、40°、50° |
| Tang_T2 | AC220 | 24W | DMX512 | RGBW (3000K、4000K、5000K) | 3 | 7° |
| Tang_T2 | AC220 | 36W | DMX512 | RGBW (3000K、4000K、5000K) | 12 | 10°、20°、30°、40°、50° |

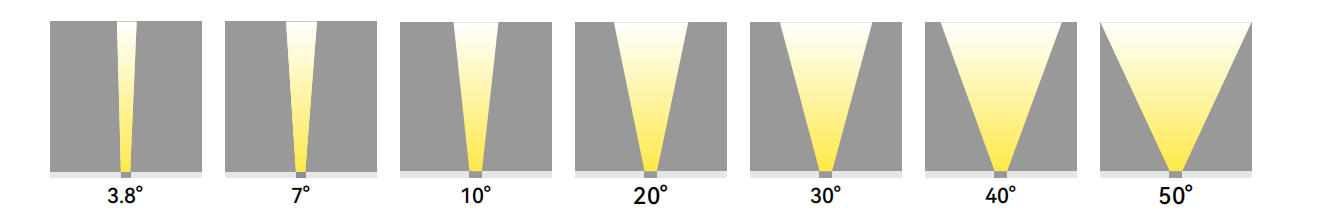

Optional beam angle：

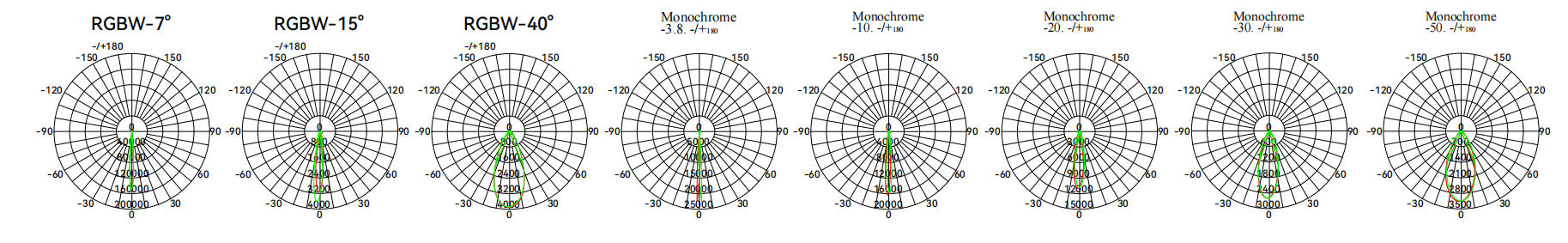

Light distribution curve:
