Pixel Video

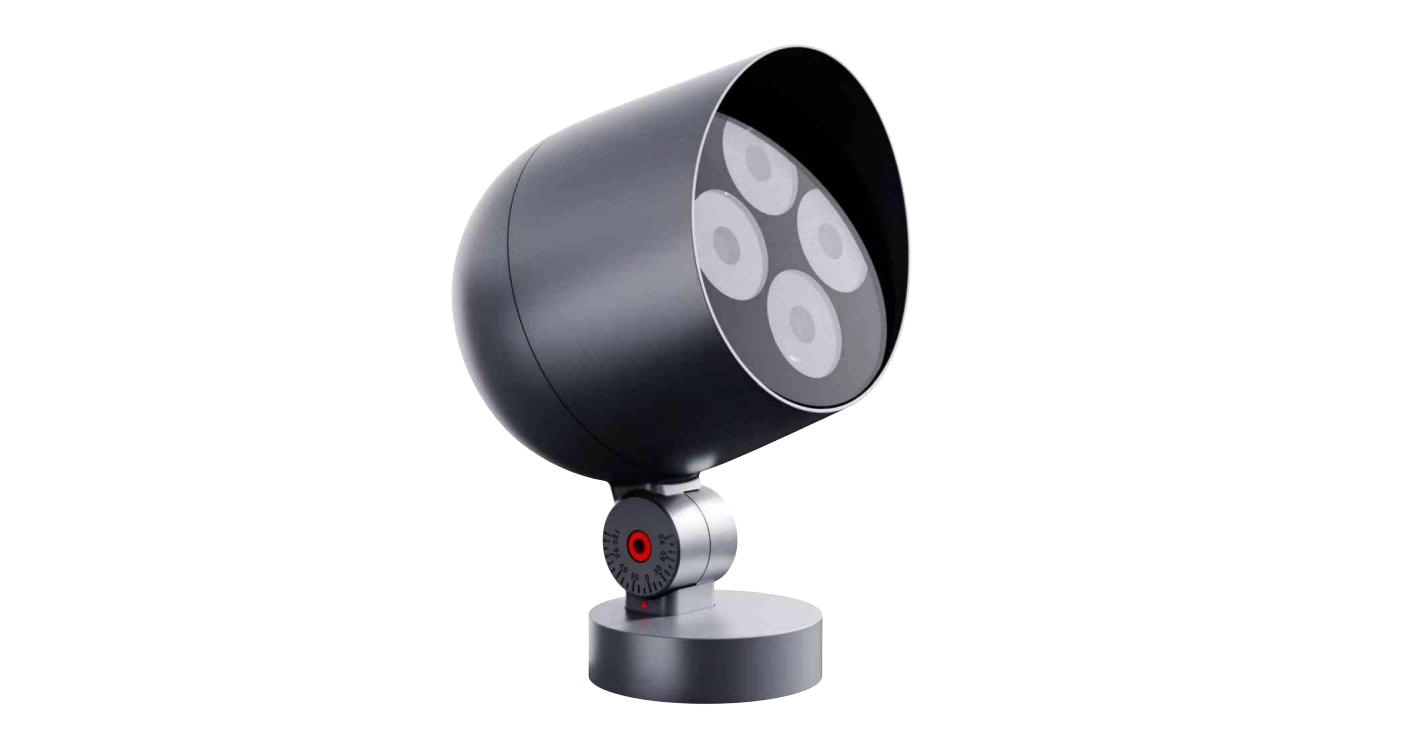

Product picture

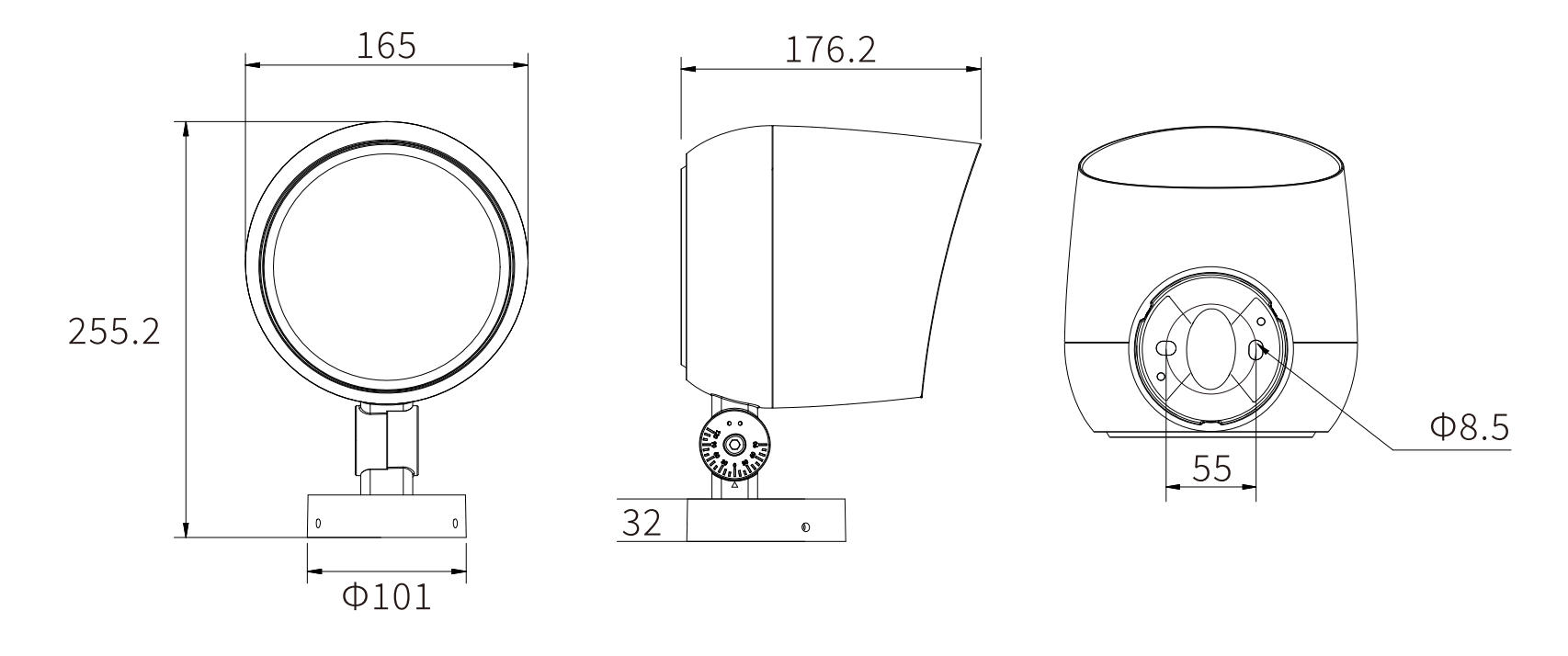

Product Size

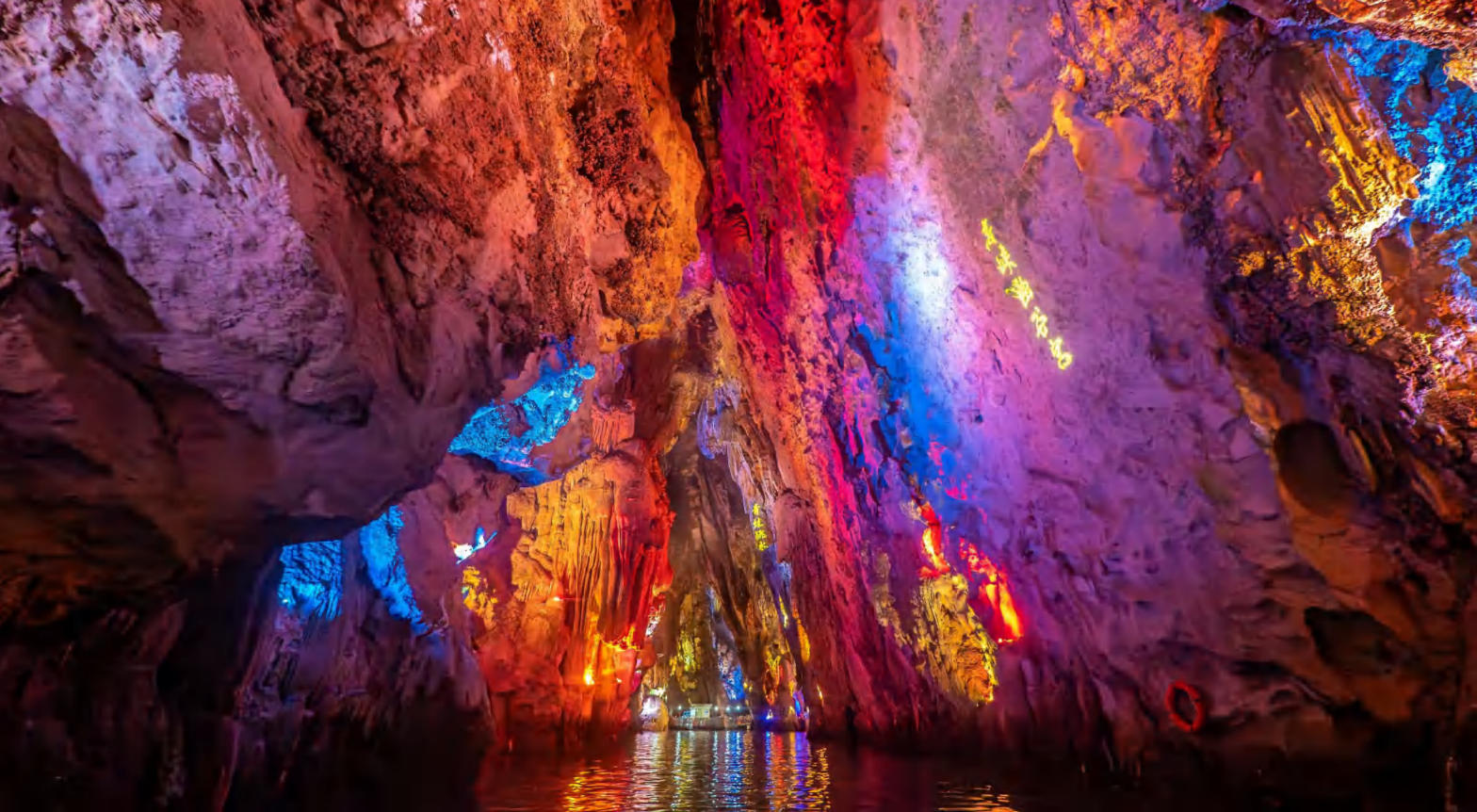

Real case
Product Specification
| Body material | ADC12 aluminum alloy lamp body, lamp cover and mounting base, 4mm ultra-clear tempered glass |
| Surface preparation | Nano-scale High Weather and Corrosion Resistance Electrostatic Spraying of Powder (Passing 500h Neutral Salt Spray Test) |
| Physical size | L176.2W165H255.2mm (standard base) |
| Product power | Maximum 60W |
| Product color temperature | RGBW、RGB、2200-6500K |
| Input voltage | DC24V、AC220V |
| Control method | DMX512、ON/OFF |
| Levels of protection | IP65 |
| Luminous angle | 3.8°、7°、10°、20°、30°、40°、50° |
| Working temperature | -35℃~45℃ |
| Product weight | 3Kg |
More Models
| Product model | Input voltage | Power | Control method | Colour temperature | Number of particles | Angle |
|---|---|---|---|---|---|---|
| I0301S | DC24V | 36W | ON/OFF | 2200-6500K | 18 | 10°、20°、30°、40°、50° |
| I0302S | DC24V | 36W | ON/OFF | 2200-6500K | 7 | 3.8° |
| I0303C | DC24V | 36W | DMX512 | 2200-6500K | 18 | 10°、20°、30°、40°、50° |
| I0304C | DC24V | 36W | DMX512 | 2200-6500K | 7 | 3.8° |
| Tang.T3 | DC24V | 36W | DMX512 | RGBW (3000K、4000K、5000K) | 18 | 10°、20°、30°、40°、50° |
| Tang.T3 | DC24V | 36W | DMX512 | RGBW (3000K、4000K、5000K) | 4 | 7° |
| I0305S | DC24V | 48W | ON/OFF | 2200-6500K | 24 | 10°、20°、30°、40°、50° |
| I0306C | DC24V | 48W | DMX512 | 2200-6500K | 24 | 10°、20°、30°、40°、50° |
| Tang.T3 | DC24V | 48W | DMX512 | RGBW (3000K、4000K、5000K) | 18 | 10°、20°、30°、40°、50° |
| I0307S | AC220V | 36W | ON/OFF | 2200-6500K | 18 | 10°、20°、30°、40°、50° |
| I0308C | AC220V | 36W | DMX512 | 2200-6500K | 18 | 10°、20°、30°、40°、50° |
| I0309C | AC220V | 36W | DMX512 | 2200-6500K | 7 | 3.8° |
| Tang.T3 | AC220V | 36W | DMX512 | RGBW (3000K、4000K、5000K) | 18 | 10°、20°、30°、40°、50° |
| Tang.T3 | AC220V | 36W | DMX512 | RGBW (3000K、4000K、5000K) | 4 | 7° |
| I0310S | AC220V | 48W | ON/OFF | 2200-6500K | 24 | 10°、20°、30°、40°、50° |
| I0311C | AC220V | 48W | DMX512 | 2200-6500K | 24 | 10°、20°、30°、40°、50° |
| Tang.T3 | AC220V | 48W | DMX512 | RGBW (3000K、4000K、5000K) | 18 | 10°、20°、30°、40°、50° |
| Tang.T3 | AC220V | 60W | DMX512 | RGBW (3000K、4000K、5000K) | 24 | 10°、20°、30°、40°、50° |
Optional beam angle：

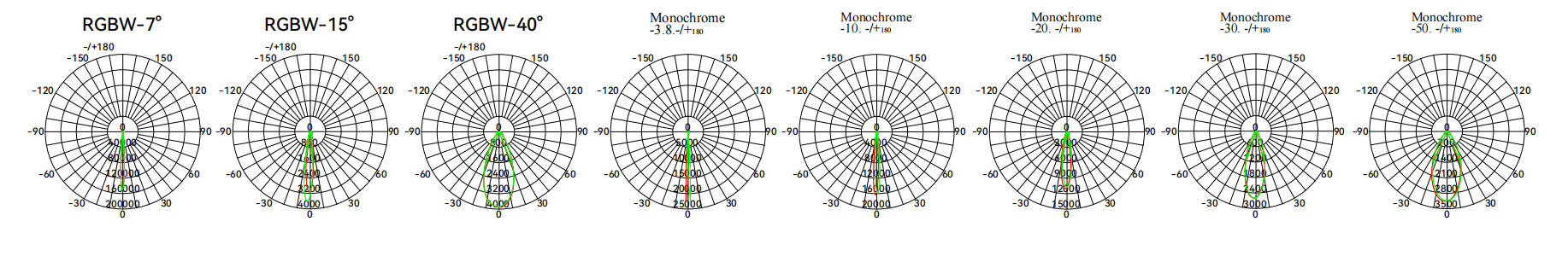

Light distribution curve:
