Pixel Video

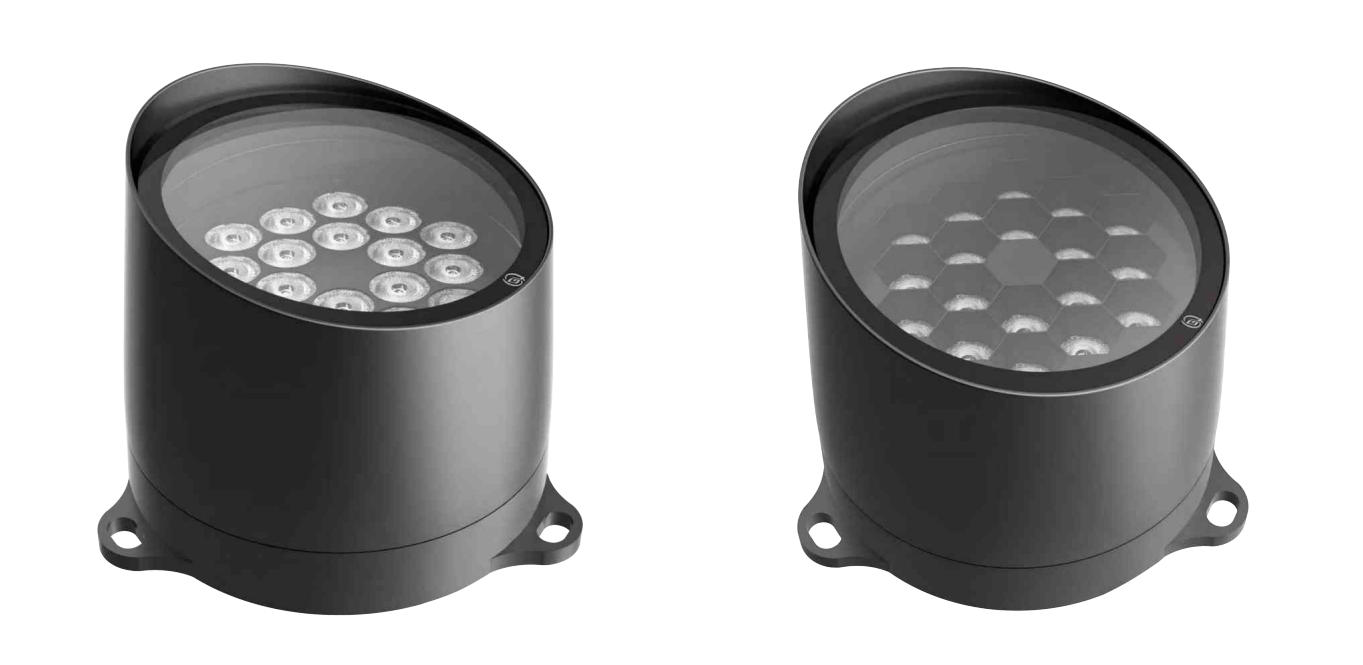

Product picture

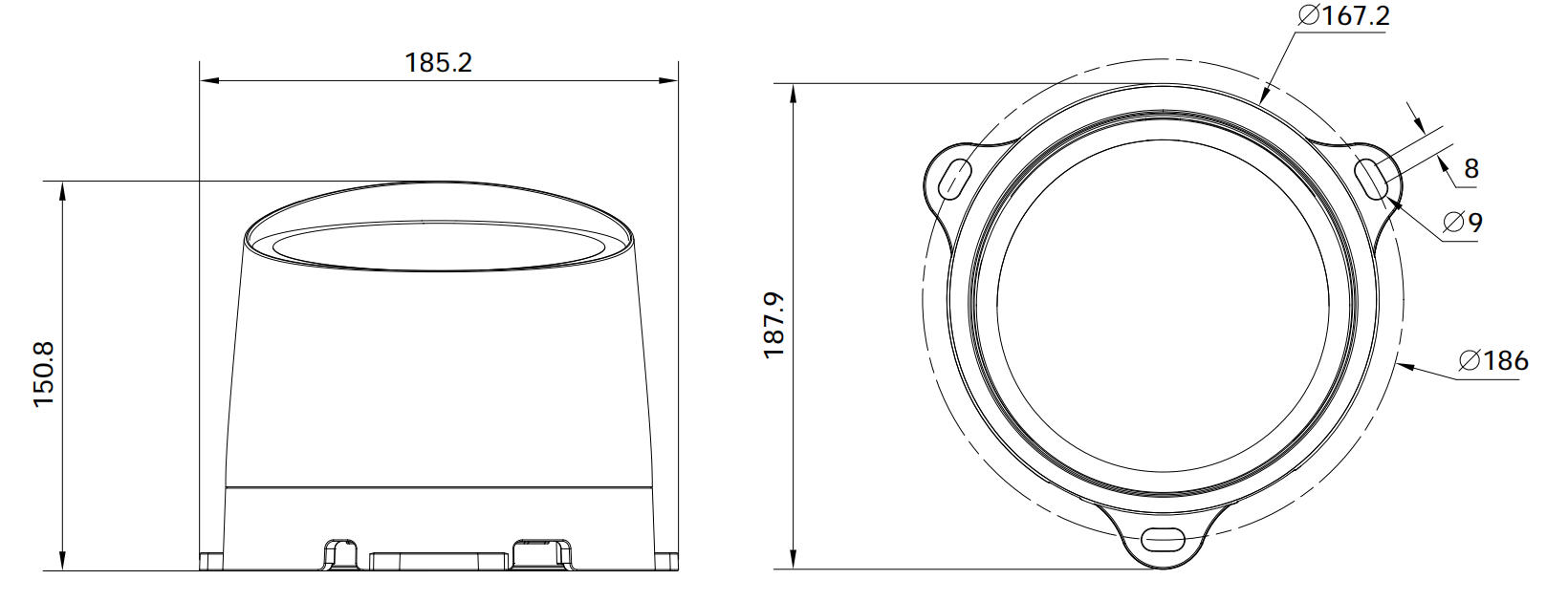

Product Size

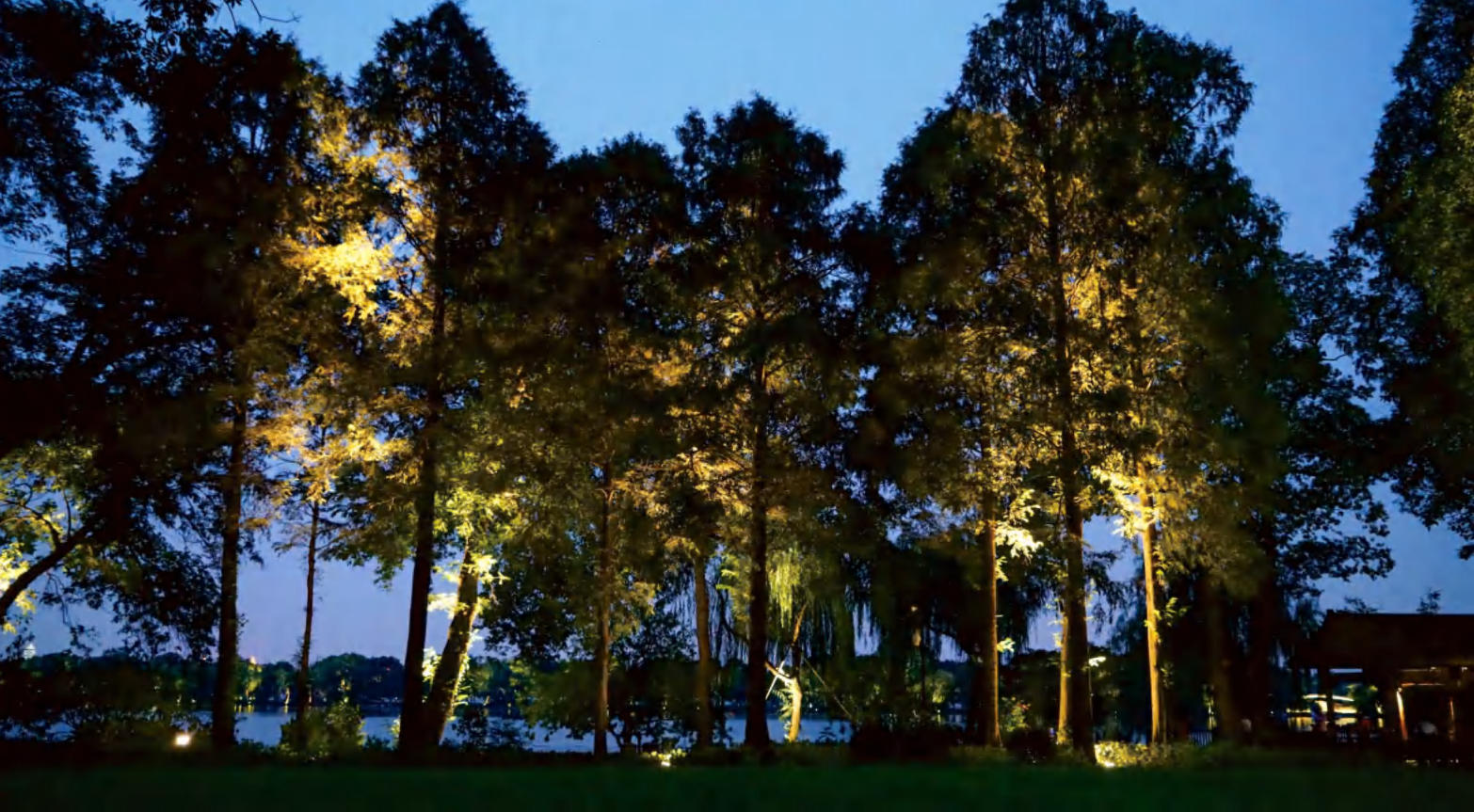

Real case
Product Specification
| Body material | ADC12 aluminum alloy lamp body and mounting base, 4mm ultra-clear tempered glass |
| Surface preparation | Nano-scale High Weather and Corrosion Resistance Electrostatic Spraying of Powder (Passing 500h Neutral Salt Spray Test) |
| Physical size | L187.9W185.2H150.8mm |
| Product power | 36-60W |
| Product color temperature | RGBW、RGB、2200-6500K |
| Input voltage | DC24V、AC220V |
| Control method | DMX512、ON/OFF |
| Levels of protection | IP65 |
| Luminous angle | 10°、20°、30°、40°、50° |
| Working temperature | -35~45℃ |
| Product weight | Approximately 3Kg |
More Models
| Product model | Input voltage | Power | Control method | Colour temperature | Number of particles | Angle |
|---|---|---|---|---|---|---|
| J0101S | DC24V | 36W | ON/OFF | 22000-6500K | 18 | 10°、20°、30°、40°、50° |
| J0102C | DC24V | 36W | DMX512 | 22000-6500K | 18 | 10°、20°、30°、40°、50° |
| J0103C | DC24V | 36W | DMX512 | 22000-6500K | 18 | 10°、20°、30°、40°、50° |
| J0104S | DC24V | 48W | ON/OFF | 22000-6500K | 24 | 10°、20°、30°、40°、50° |
| J0105C | DC24V | 48W | DMX512 | 22000-6500K | 24 | 10°、20°、30°、40°、50° |
| J0106C | DC24V | 48W | DMX512 | RGBW (3000K、4000K、5000K) | 18 | 10°、20°、30°、40°、50° |
| J0107S | AC220V | 36W | ON/OFF | 22000-6500K | 18 | 10°、20°、30°、40°、50° |
| J0108C | AC220V | 36W | DMX512 | 22000-6500K | 18 | 10°、20°、30°、40°、50° |
| J0109C | AC220V | 36W | DMX512 | 22000-6500K | 18 | 10°、20°、30°、40°、50° |
| J0110S | AC220V | 48W | ON/OFF | 22000-6500K | 24 | 10°、20°、30°、40°、50° |
| J0111C | AC220V | 48W | DMX512 | 22000-6500K | 24 | 10°、20°、30°、40°、50° |
| Tang T3-Tree lamp | AC220V | 48W | DMX512 | RGBW (3000K、4000K、5000K) | 18 | 10°、20°、30°、40°、50° |
| Tang T3-Tree Lamp | AC220V | 60W | DMX512 | RGBW (3000K、4000K、5000K) | 24 | 10°、20°、30°、40°、50° |
Optional beam angle：
Color Distribution Curve:
