LED Line Light Uniform Light Series Moon

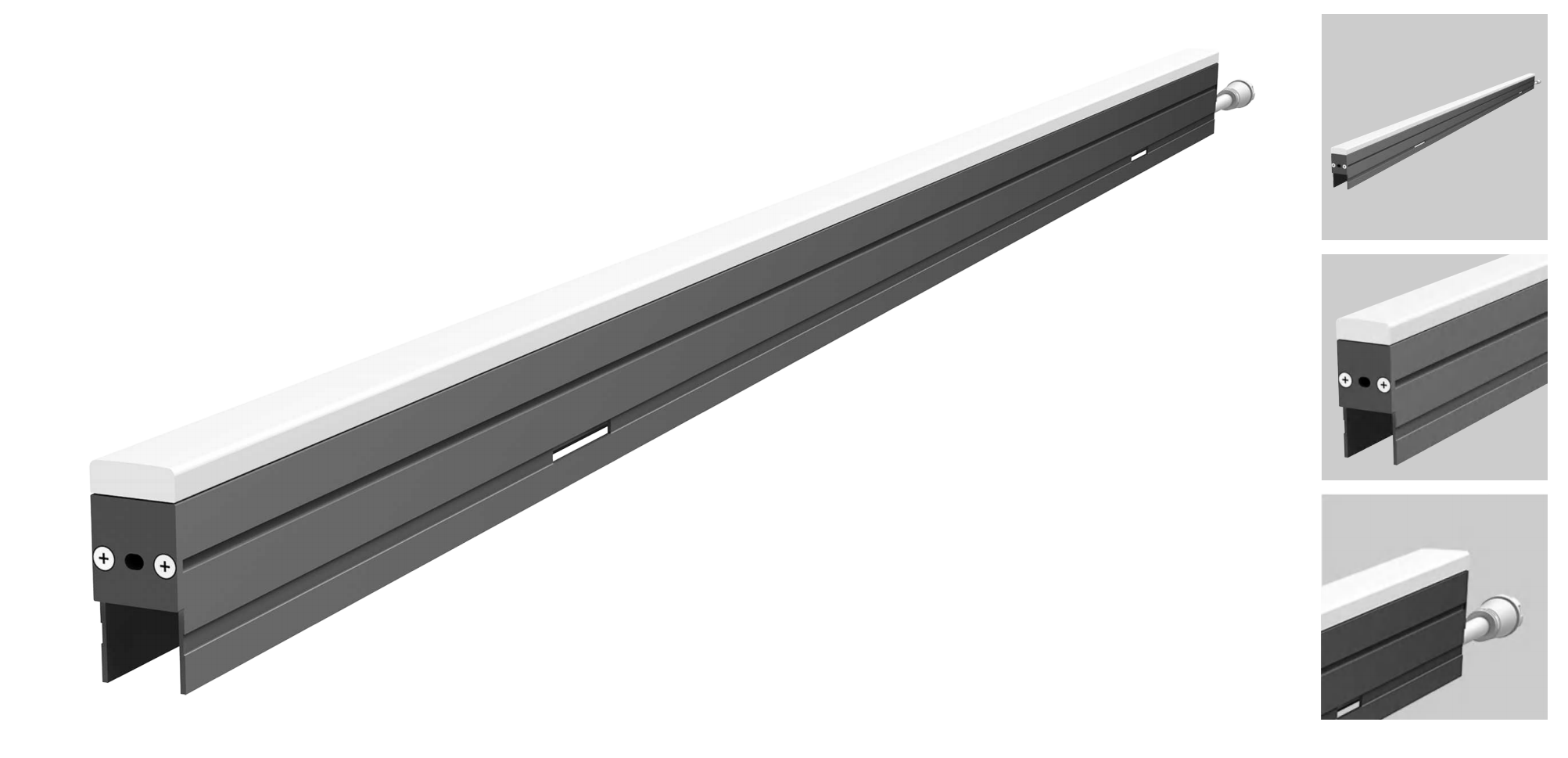

Product picture

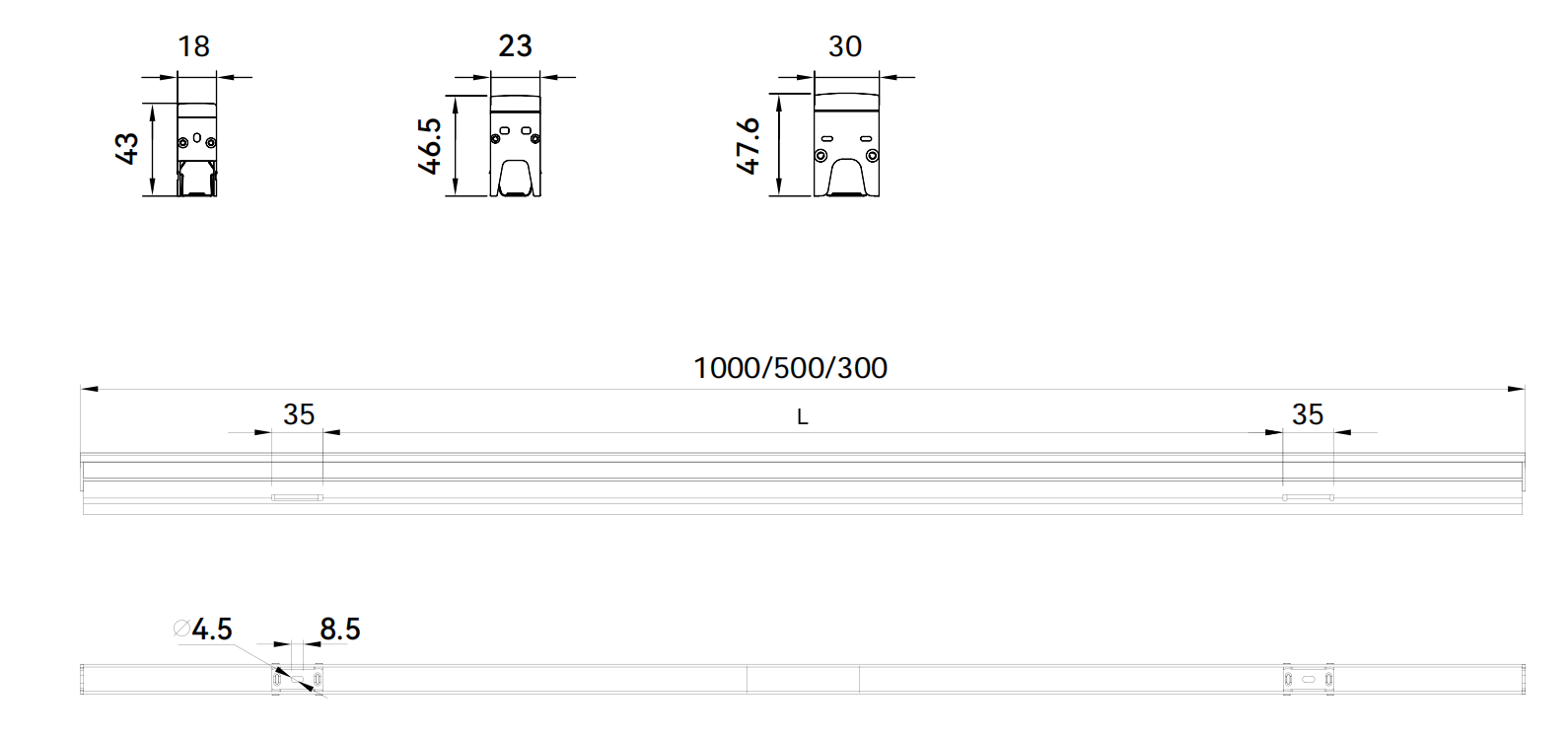

Product Size

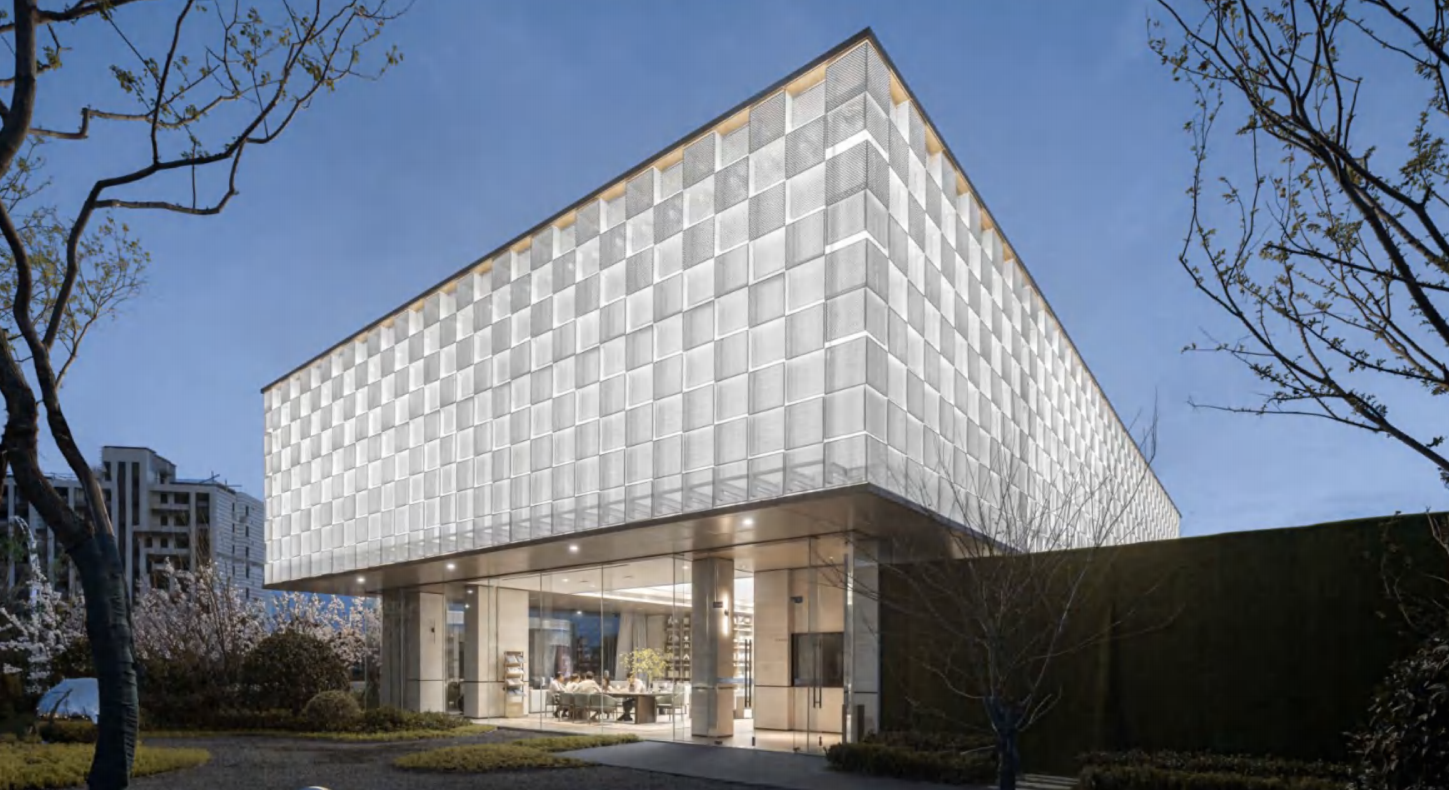

Real case

Product Specification

Body Material	6063-T5 aerospace-grade aluminum alloy lamp body and end cap, 304 stainless steel snap-fit bracket, imported acrylic lampshade
Surface preparation	Nanometer-grade high-weather and corrosion-resistant powder electrostatic coating (meets 500H neutral salt spray test)
Physical size	L1000(500/300)W18H43、L1000(500/300)W23H46.5、L1000(500/300)W30H47.6
Product Power	14W/m
Product Color Temperature	RGBW、RGB、2200-6500K
Input voltage	DC24V、DC48V
Control method	DMX512 、ON/OFF
Levels of protection	IP65
Light Angle	120°
Working temperature	-35~45°C
Product weight	0.7Kg、0.87Kg、1.14Kg

More Models

Product line	Product model	Length	Input voltage	Power	Control method	Number of segments	Number of particles	Colour temperature	Angle
Lunar 18mm23mm30mm	CzA0014s	1 meter	DC24V	14W	ON/OFF	/	48	2200K-6500K	120°
	CzA0014C	1 meter	DC24V	14W	DMX512	16	48	RGBW	120°
	CzA0014C	1 meter	DC24V	14W	DMX512	8	48	RGBW	120°
	CzA0014C	1 meter	DC24V	14W	DMX512	16	48	2200K-6500K	120°
	CzA0014C	1 meter	DC24V	14W	DMX512	8	48	2200K-6500K	120°
	B0122C	1 meter	DC24V	14W	DMX512	8	96	2200K-6500K	120°
	B0128C	1 meter	DC48V	14W	DMX512	16	48	RGBW	120°
	B0134C	1 meter	DC48V	14W	DMX512	8	48	RGBW	120°
	B0140C	1 meter	DC48V	14W	DMX512	8	48	2200K-6500K	120°

ptional beam angle:

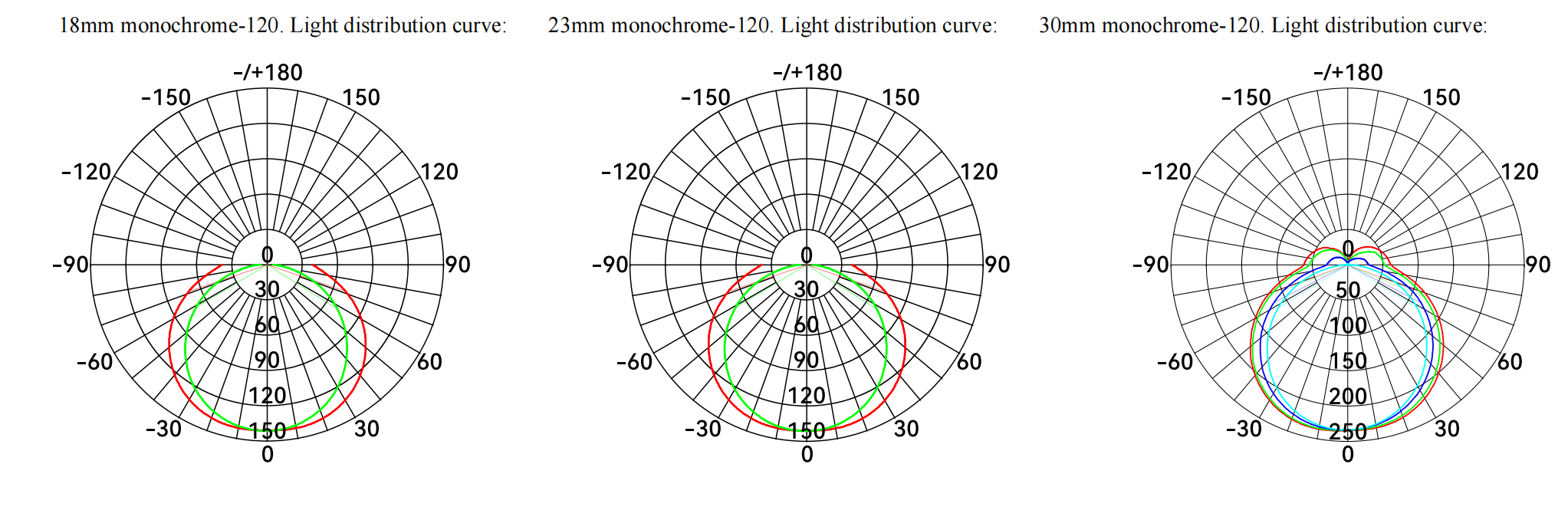

Power distribution curve:

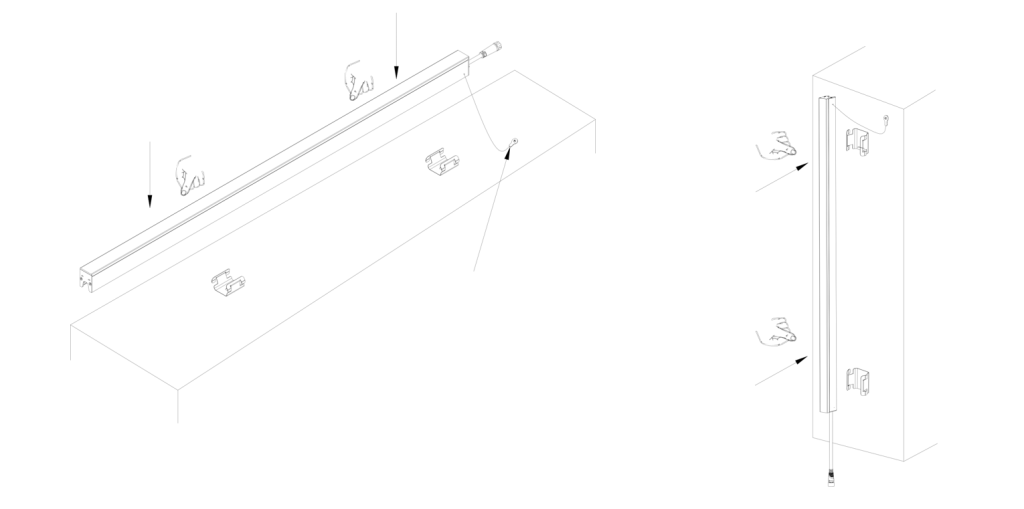

First, lock the position of the fixed bracket, so that the two fixed brackets are collinear and parallel. Press the lamp body in the direction of the spring plate until the spring plate is completely embedded in the lamp body, and then install the anti-fall chain.

The fall arrest chain should be fixed in a firm position

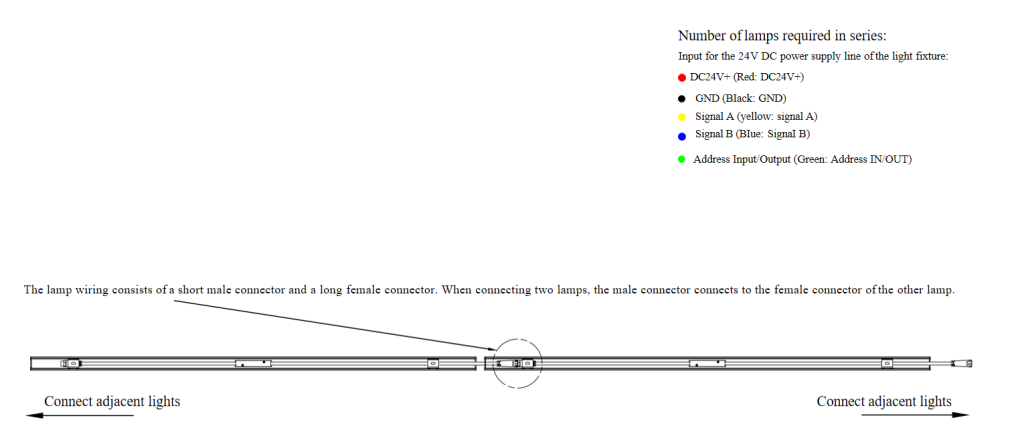

Lighting wiring and cable interface (DMX512 control)

Number of lamps required in series:

Based on the lamp socket and its cable, the current through the first lamp in each string should not exceed 6A. Considering cable power loss, the actual number

of strings is calculated as (6A*24V/12W). For example, with a 24V system and a 12W lamp, the allowable number of strings is (6A*24V)/12W = 12
