LED line light uniform light series Tianqin 20*47mm

Product picture

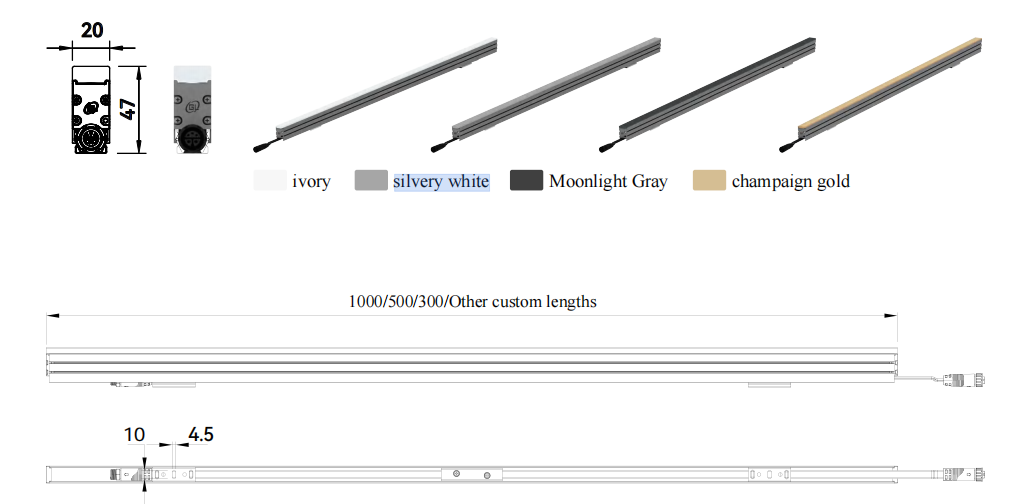

Product Size

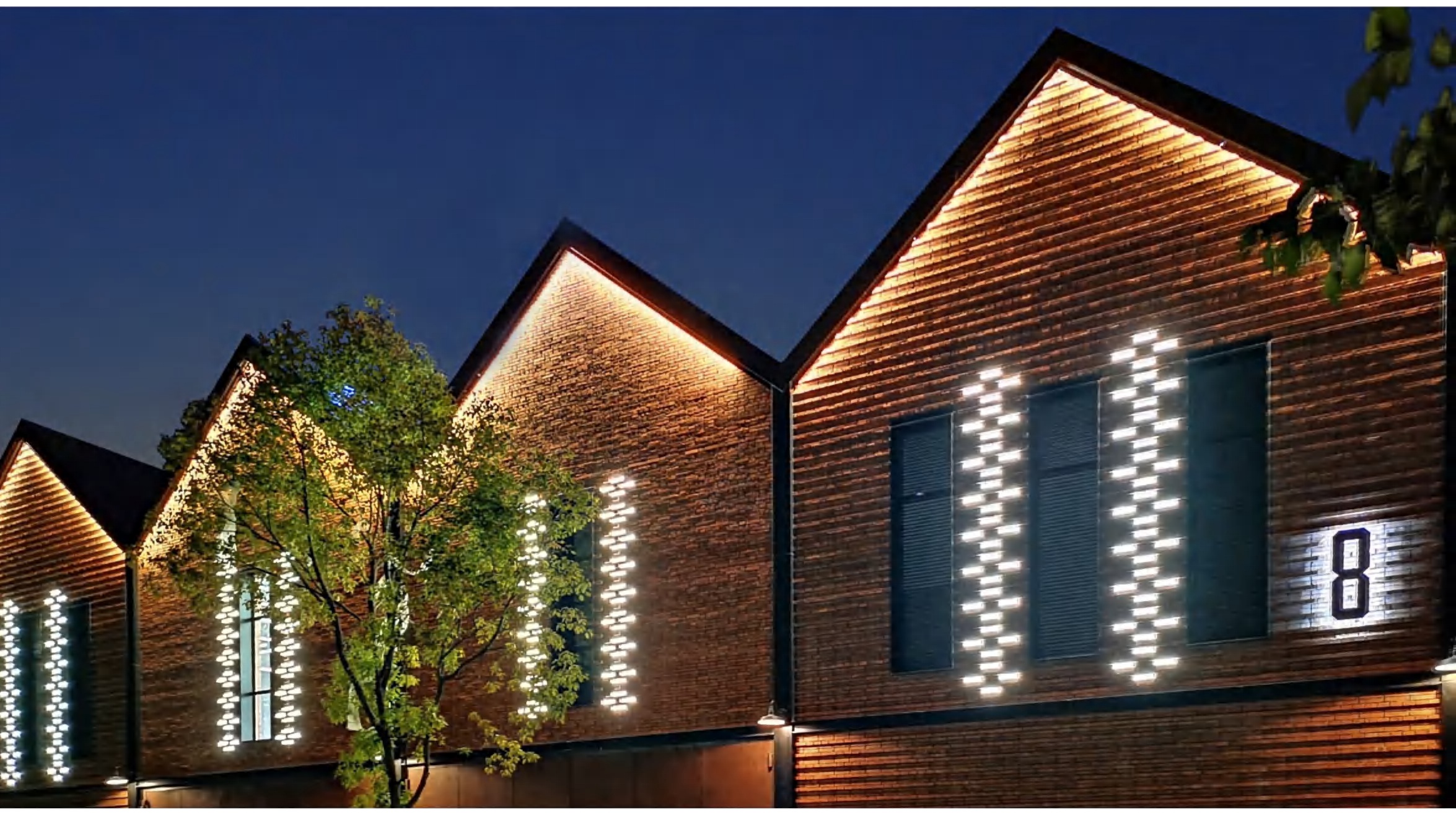

Real case

Product Specification

Parameter	Description
Body Material	6063-T5 aerospace-grade aluminum alloy lamp body, ADC12 aluminum alloy end cap, 3mm ultra-clear tempered glass, 304 stainless steel snap-fit bracket, imported acrylic lampshade
Surface Preparation	Nanometer-grade high-weather and corrosion-resistant powder electrostatic coating (meets SMO1 neutral salt spray test)
Physical Size	L1000 (500/300) * W20 * H47 (Standard Snap-on Bracket)
Product Power	14W/m
Product Color Temperature	RGBW、RGB、2200-6500K
Input Voltage	DC24V、DC48V
Control Method	DMX512 、ON/OFF
Level of Protection	IP65
Light Angle	120°
Working Temperature	-35~45℃
Product Weight	0.7Kg

More Models

Product line	Product model	Length	Input voltage	Power	Control method	Section number	The number of particles	Colour temperature	Angle
TianQin 20wide-47 high	B0701S	1 Meters	DC24V	14W	ON/OFF	/	48	2200K-6500K	120°
	B0702S	0.5 Meters	DC24V	7W	ON/OFF	/	24	2700K-6500K	120°
	B0703S	0.3 Meters	DC24V	4.7W	ON/OFF	/	16	2700K-6500K	120°
	B0704C	1 Meters	DC24V	14W	DMX512	16	48	RGBW (3000K、4000K、5000K)	120°
	B0705C	0.5 Meters	DC24V	7W	DMX512	8	24	RGBW (3000K、4000K、5000K)	120°
	B0706C	0.3 Meters	DC24V	4.7W	DMX512	4	16	RGBW (3000K、4000K、5000K)	120°
	B0707C	1 Meters	DC24V	14W	DMX512	8	48	RGBW (3000K、4000K、5000K)	120°
	B0708C	0.5 Meters	DC24V	7W	DMX512	4	24	RGBW (3000K、4000K、5000K)	120°
	B0709C	0.3 Meters	DC24V	4.7W	DMX512	2	16	RGBW (3000K、4000K、5000K)	120°
	B0710C	1 Meters	DC24V	14W	DMX512	8	48	2200K-6500K	120°
	B0711C	0.5 Meters	DC24V	7W	DMX512	4	24	2200K-6500K	120°
	B0712C	0.3 Meters	DC24V	4.7W	DMX512	2	16	2200K-6500K	120°

ptional beam angle:

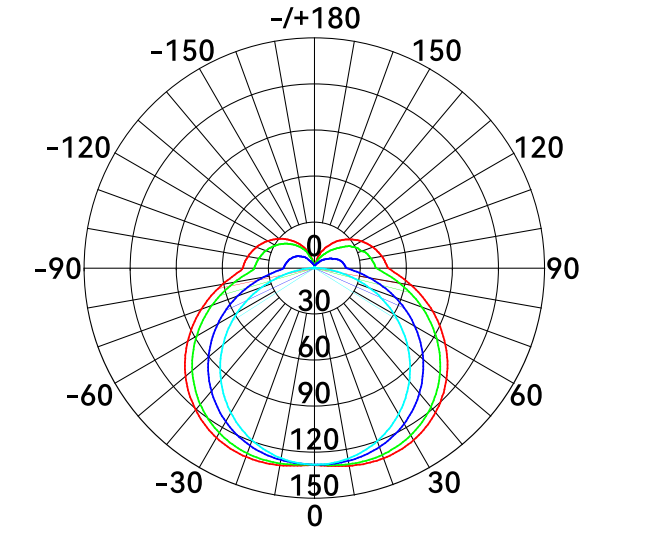

Power distribution curve:

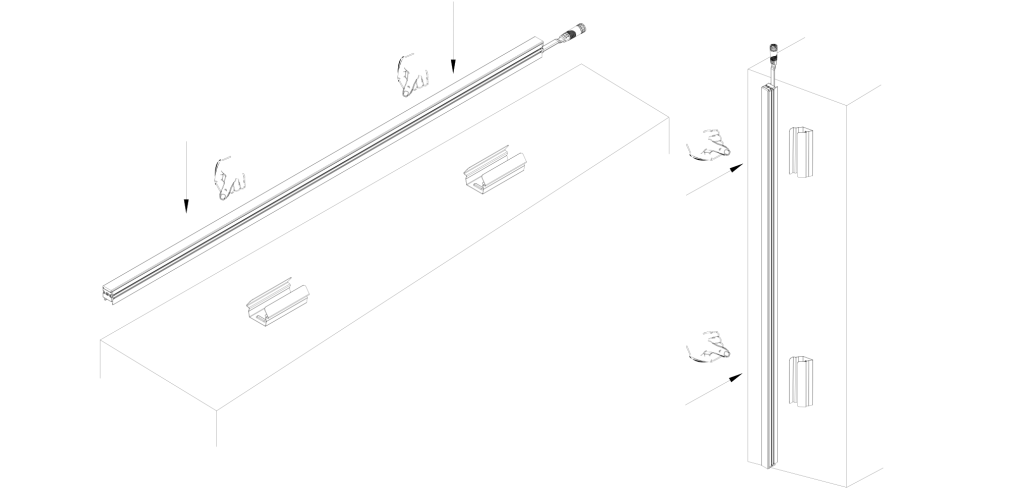

First, lock the position of the fixed bracket, so that the two fixed supports are collinear and parallel, press the lamp body to the direction of the shrapnel, press so that the shrapnel is completely embedded in the lamp, and then install the anti-falling chain.

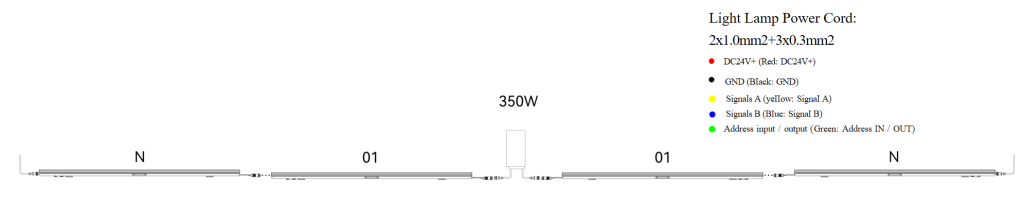

Lamp Wiring CabIe Connection (DMX512 Control)

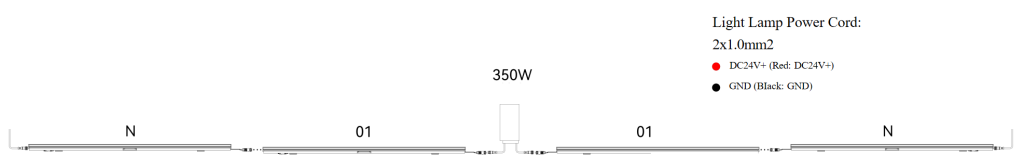

Lamp Wiring CabIe Connection (monochrome Bright)

Quantity requirement of lamp connections:

According to the cable of lamp plug and lamp; the current of each lamp is 6A; considering the power loss of cable, the actual number of lamps is: (6A * 24V / lamp power)

For example, take 24V as an example, the power of lamps is 15w, the actual number of string lamps: (6A * 24V) / 15w=9.
