Product picture

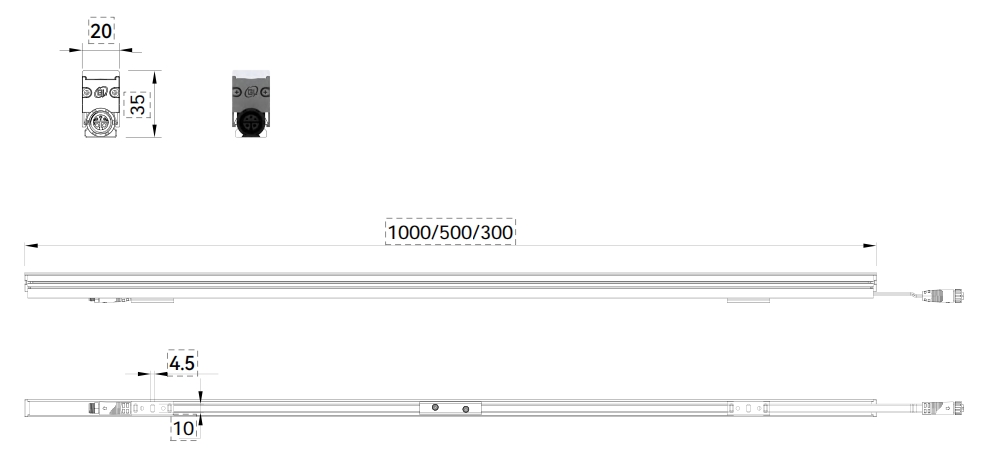

Product Size

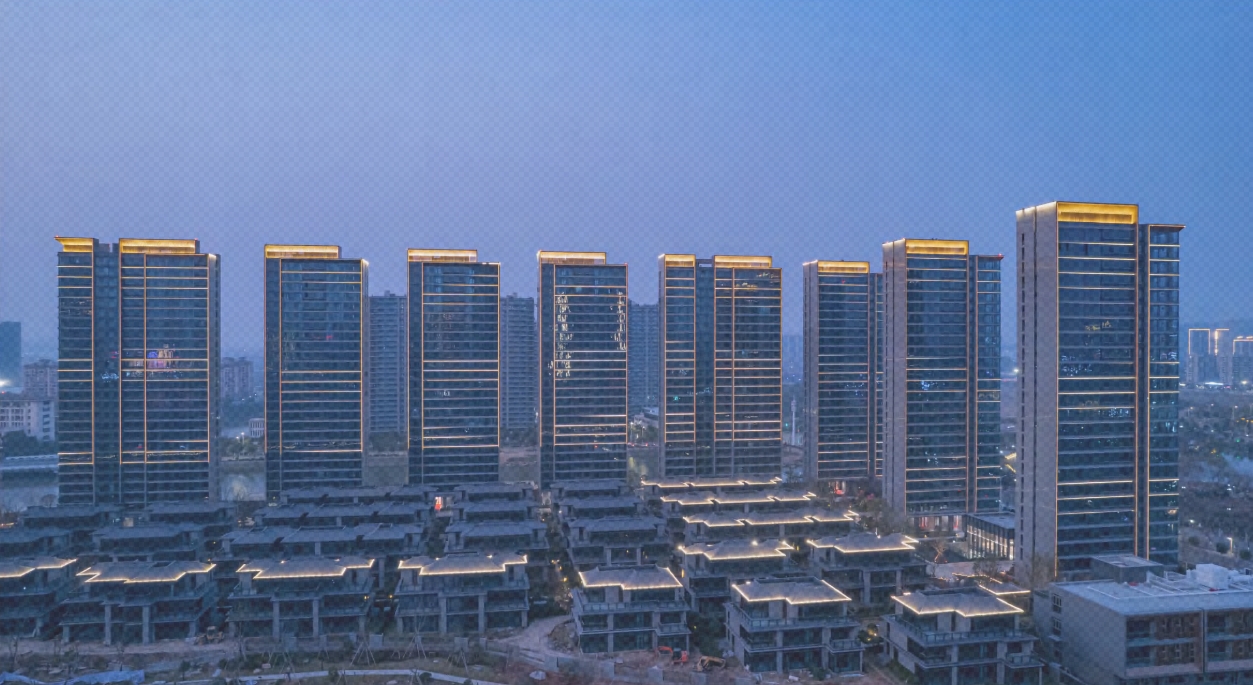

Real case
Product Specification
| Parameter | Description |
|---|---|
| Body Material | 6063-T5 aerospace-grade aluminum alloy lamp body, ADC12 aluminum alloy end cap, 3mm ultra-clear tempered glass, 304 stainless steel snap-fit bracket, imported acrylic lampshade |
| Surface preparation | Nanometer-grade high-weather and corrosion-resistant powder electrostatic coating (meets SMO1 neutral salt spray test) |
| Physical size | L1000 (500/300) * W20 * H35 (Standard Snap-on Bracket) |
| Product Power | 15W/m |
| Product Color Temperature | RGBW、RGB、2200-6500K |
| Input voltage | DC24V |
| Control method | DMX512 、ON/OFF |
| Level of protection | IP65 |
| Light Angle | 120° |
| Working temperature | -35~45℃ |
| Product weight | 0.65Kg |
More Models
| Product line | Product model | Length | Input voltage | Power | Control method | Number of segments | Particle count | Color temperature | Angle |
|---|---|---|---|---|---|---|---|---|---|
| B0601S | 1m | DC24V | 15W | ON/OFF | / | 96 | 2200K-6500K | 120° | |
| B0602S | 0.5m | DC24V | 7.5W | ON/OFF | / | 48 | 2700K-6500K | 120° | |
| B0603S | 0.3m | DC24V | 5W | ON/OFF | / | 24 | 2700K-6500K | 120° | |
| B0604C | 1m | DC24V | 15W | DMX512 | 16 | 96 | RGBW (3000K、4000K、5000K) | 120° | |
| B0605C | 0.5m | DC24V | 7.5W | DMX512 | 8 | 48 | RGBW (3000K、4000K、5000K) | 120° | |
| B0606C | 0.3m | DC24V | 5W | DMX512 | 4 | 24 | RGBW (3000K、4000K、5000K) | 120° | |
| Aquarius20 wide-35 high | B0607C | 1m | DC24V | 15W | DMX512 | 8 | 96 | RGBW (3000K、4000K、5000K) | 120° |
| B0608C | 0.5m | DC24V | 7.5W | DMX512 | 4 | 48 | RGBW (3000K、4000K、5000K) | 120° | |
| B0609C | 0.3m | DC24V | 5W | DMX512 | 2 | 24 | RGBW (3000K、4000K、5000K) | 120° | |
| B0610C | 1m | DC24V | 15W | DMX512 | 16 | 96 | 2200K-6500K | 120° | |
| B0611C | 0.5m | DC24V | 7.5W | DMX512 | 8 | 48 | 2200K-6500K | 120° | |
| B0612C | 0.3m | DC24V | 5W | DMX512 | 4 | 24 | 2200K-6500K | 120° | |
| B0613C | 1m | DC24V | 15W | DMX512 | 8 | 96 | 2200K-6500K | 120° | |
| B0614C | 0.5m | DC24V | 7.5W | DMX512 | 4 | 48 | 2200K-6500K | 120° | |
| B0615C | 0.3m | DC24V | 5W | DMX512 | 2 | 24 | 2200K-6500K | 120° |
Optional beam angle:

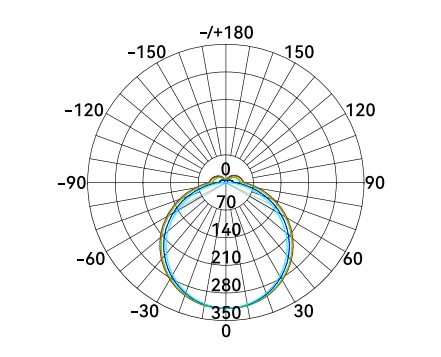

Monochromatic-120°LightDistributionCurve:

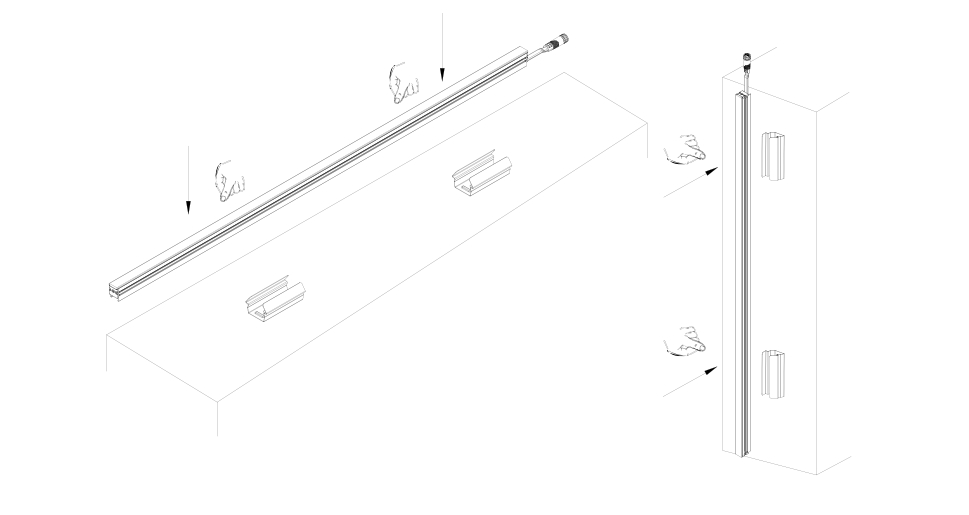

First, lock the position of the fixed bracket, so that the two fixed brackets are collinear and parallel. Press the lamp body in the direction of the spring plate until the spring plate is completely embedded in the lamp body, and then install the anti-fall chain.

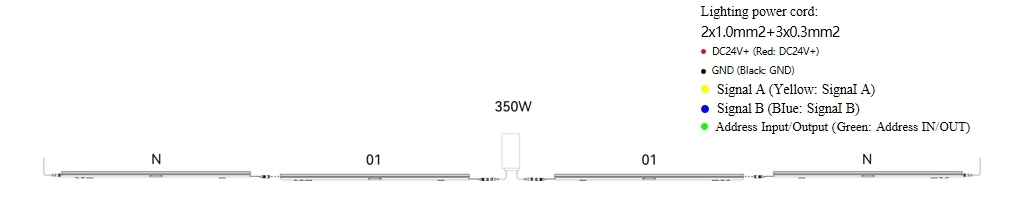

Lightingwiringandcableinterface(DMX512control)

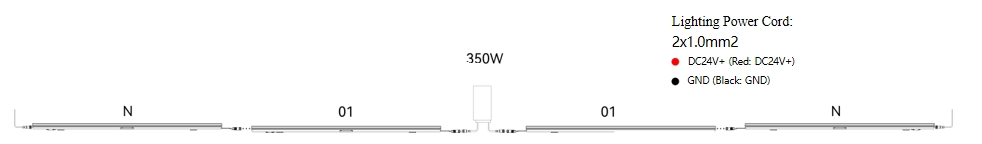

LightingWiring:CabIeConnection(single-ColorPermanentIllumination)
Number of lamps required in series:
Based on the lamp socket and cable specifications, the current through the first lamp in each string should not exceed 6A. Considering cable power loss, the actual number of string lights is calculated as: (6A24V)/total lamp power.For example, with 24V and 15W lamp power, the actual number of lamps that can be connected in series is (6A24V)/15W=9.
