LED wall light Qing hui

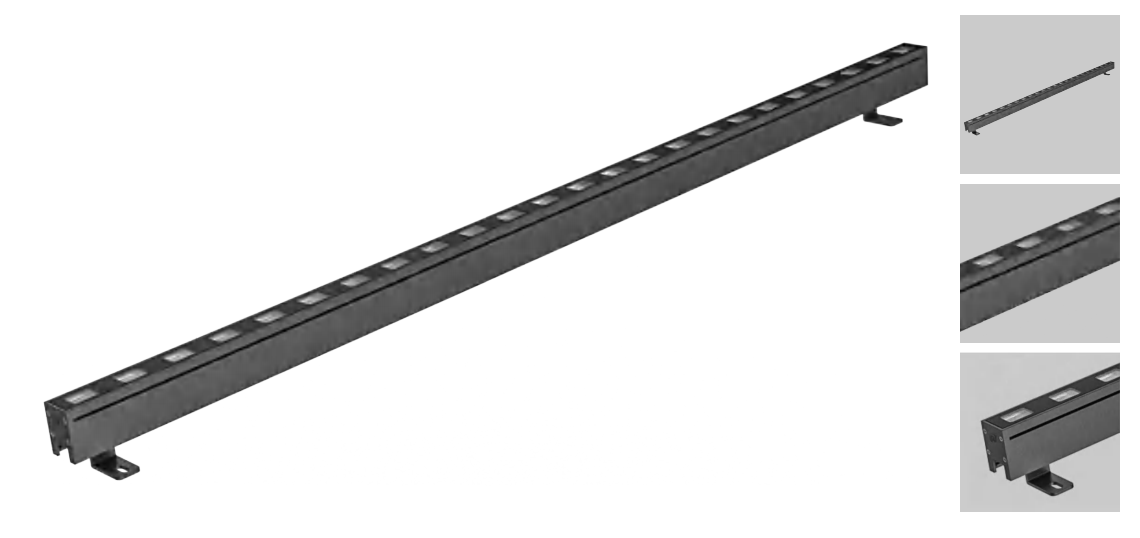

Product picture

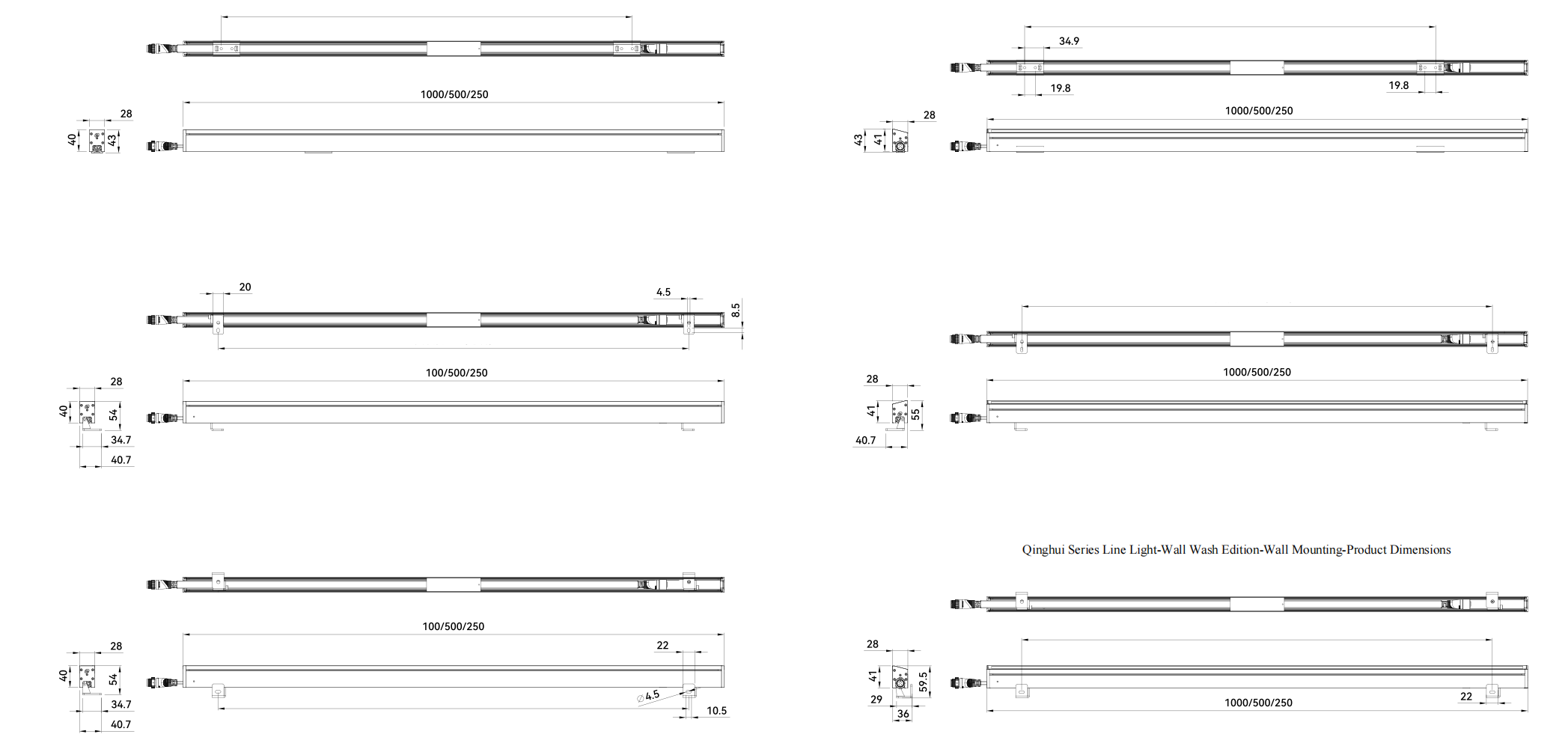

Product Size

Real case

Product Specification

Body Material	6063-T5 aerospace-grade aluminum alloy lamp housing and bracket, ADC12 aluminum alloy end cap, 3mm ultra-clear tempered glass
Surface preparation	Nanometer-grade high-weather and corrosion-resistant powder electrostatic coating (meets 500H neutral salt spray test)
Physical size	L1000(500/250)W28H54 (Standard bracket without baffle)
Product Power	24W/m
Product Color Temperature	RGBW、RGB、2200-6500K
Input voltage	DC24V、DC48V
Control method	DMX512 、ON/OFF
Levels of protection	IP65
Light Angle	15°、30°
Working temperature	-35~45°C
Product weight	1.6-2.5Kg

More Models

1M-15W-DC24V-Constant Brightness	DC24V	15w	ON/OFF	/	2200K-6500K	24	15°、30°
1M-15W-DC24V-Monochrome 1-segment, 4-segment	DC24V	15w	DMX512	1、4	2200K-6500K	24	15°、30°
1M-15W-DC24V-4-color 4-segment, 8-segment	DC24V	15w	DMX512	4、8	RGBw (3000K、4000K、5000K)	24	15°、30°
1M-24W-DC24V-Constant Brightness	DC24V	24w	ON/OFF	/	2200K-6500K	24	15°、30°
1M-24W-DC24V-Monochrome 1-segment, 4-segment	DC24V	24w	DMX512	1、4	2200K-6500K	24	15°、30°
1M-24W-DC24V-4-color 4-segment, 8-segment	DC24V	24w	DMX512	4、8	RGBw (3000K、4000K、5000K)	24	15°、30°
1M-15W-DC48V-Constant Brightness	DC48V	15w	ON/OFF	/	2200K-6500K	24	15°、30°
1M-15W-DC48V-Monochrome 1-segment, 4-segment	DC48V	15w	DMX512	1、4	2200K-6500K	24	15°、30°
1M-15W-DC48V-4-color 4-segment, 8-segment	DC48V	15w	DMX512	4、8	RGBw (3000K、4000K、5000K)	24	15°、30°
1M-24W-DC48V-Constant Brightness	DC48V	24w	ON/OFF	/	2200K-6500K	24	15°、30°

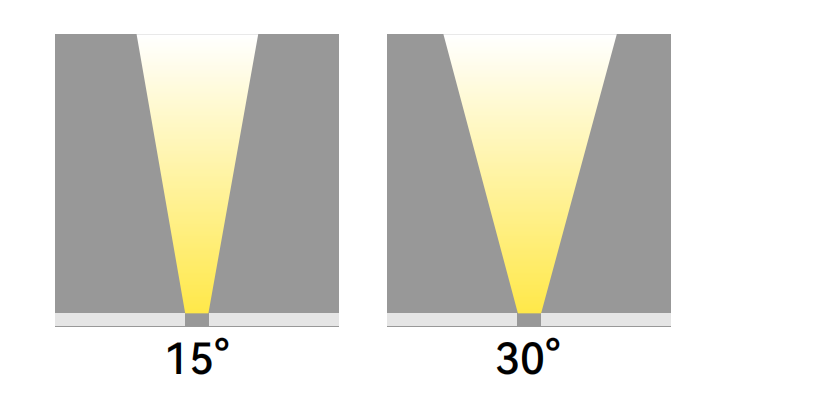

Optional beam angle:

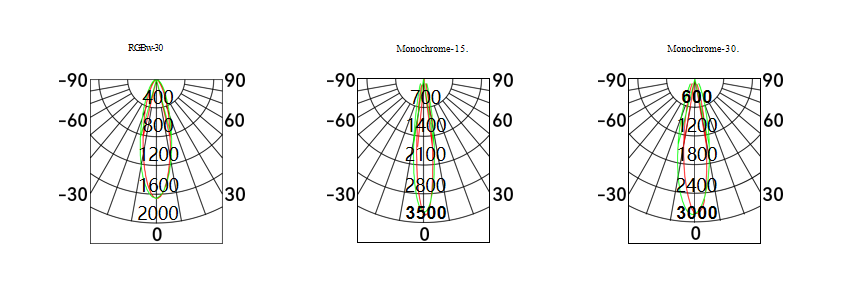

Power distribution curve:

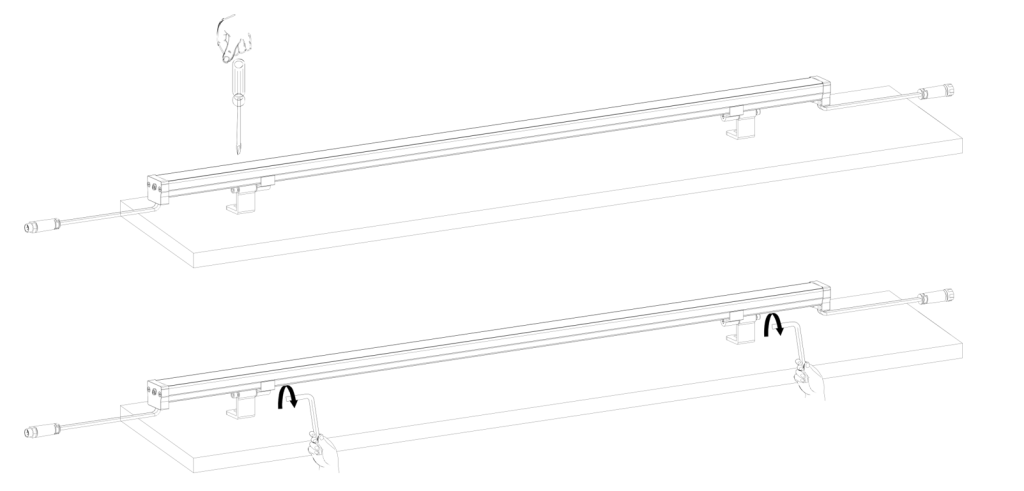

Fixed bracket and fixture mounting surface

Loosen the bolt and adjust After adjusting to the desired angle, tighten the the angle of the lamp.bracket bolt to secure the lamp

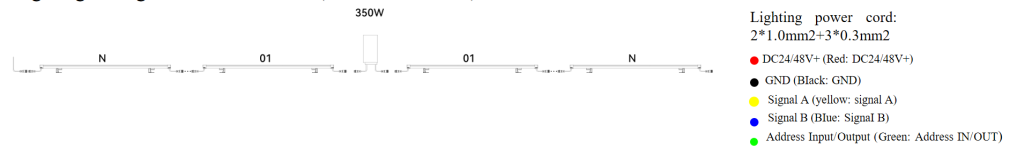

Lighting wiring and cable interface (DMX512 control)

Number of lamps required in series:

Based on the lamp socket and cable specifications, the current through the first lamp in each string should not exceed 6A. Considering cable power loss, the actual number of string lights is calculated as (6A*24V/total lamp power).

For example, with 24V, the power of the lamp is 24W. The actual number of lamps that can be connected in series is (6A*24V)/24W=6.

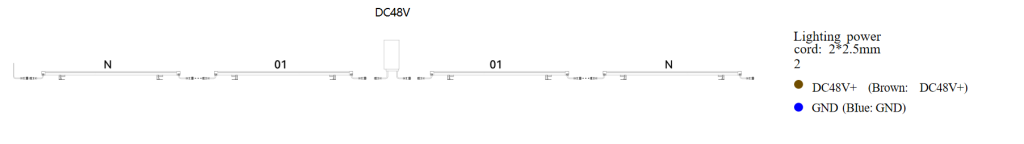

Lighting wiring: CabIe connection (single-color permanent illumination)

Number of lamps required in series:

Based on the lamp socket and its cable, the current through the first lamp in each string should not exceed 15A. Considering cable power loss, the recommended number of strings

is calculated as: (15A × 48V × 80% / lamp power). For example, with a 48V system and a 12W lamp, the required number of strings is: (15A × 48V × 80%) / 24W=24 strings.

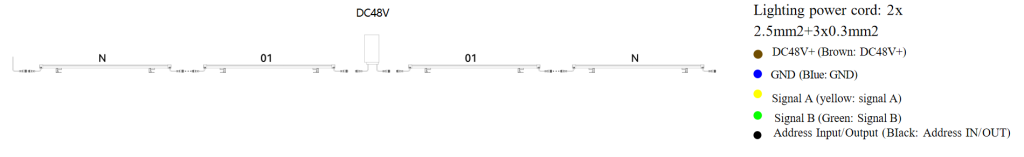

Lighting wiring and cable interface (DMX512 control)

Number of lamps required in series:

Based on the lamp socket and its cable, the current through the first lamp in each string should not exceed 15A. Considering cable power loss, the recommended number of strings

is calculated as: (15A × 48V × 80% / lamp power). For example, with a 48V system and a 24W lamp, the required number of strings is: (15A × 48V × 80%) / 24W=24 strings.
