LED wall light Rui L2

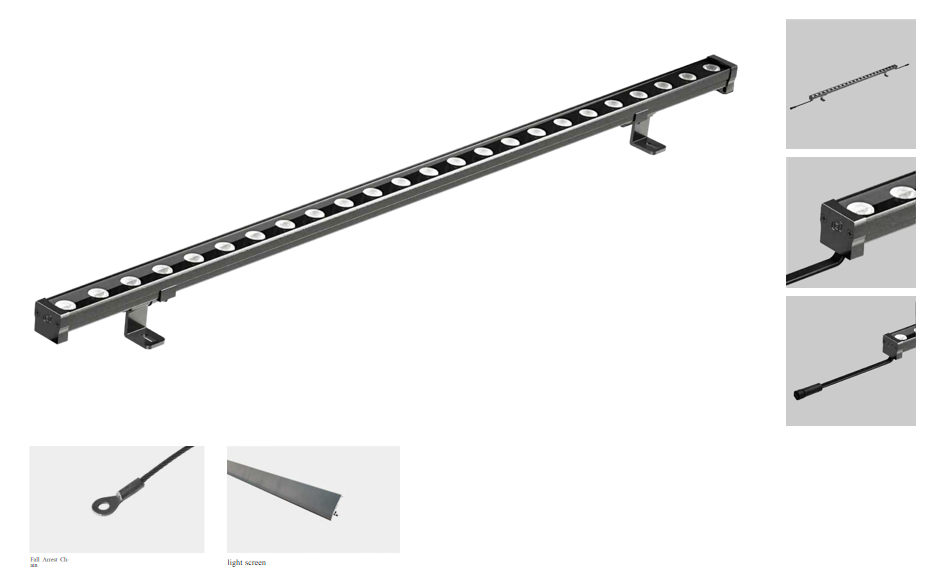

Product picture

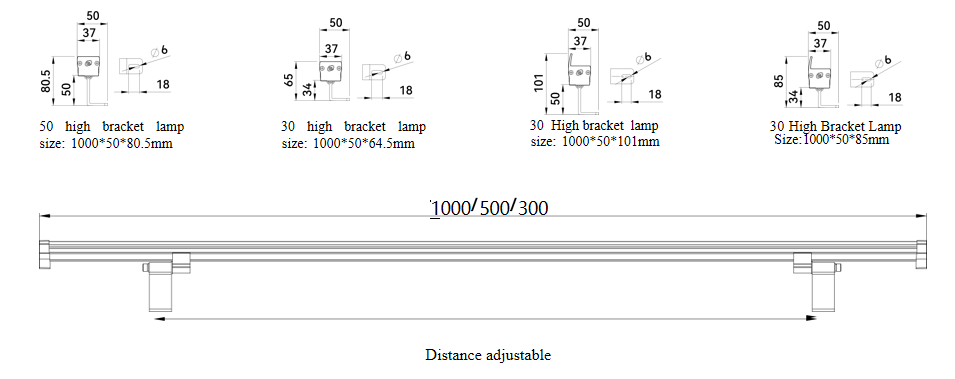

Product Size

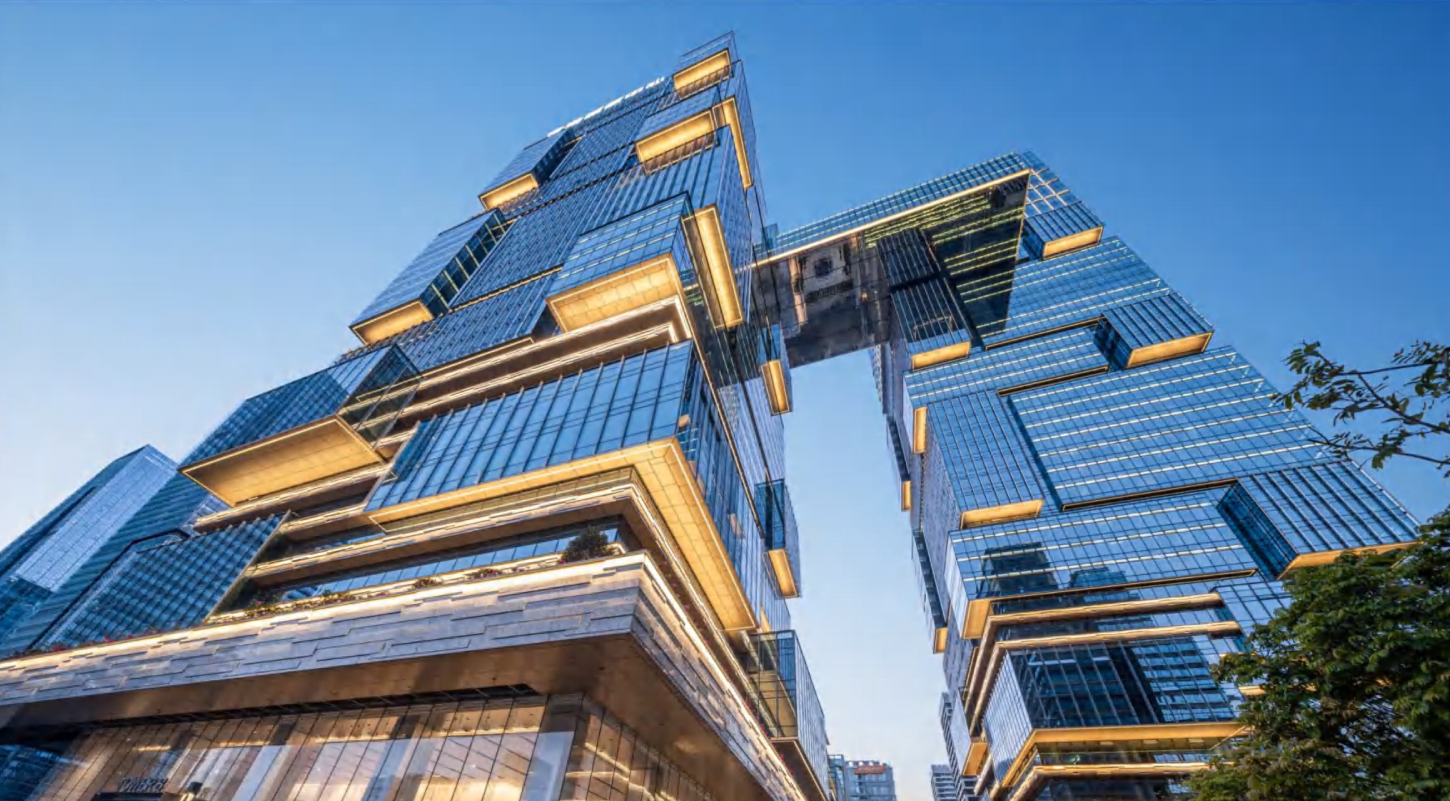

Real case

Product Specification

Body Material	6063-T5  aerospace-grade  aluminum  alloy  lamp  body  and  bracket,  ADC12  aluminum  alloy  end  cap,  3mm  ultra-cleartempered glass
Surface    preparation	Nanometer-grade high-weather and corrosion-resistant powder electrostatic coating (meets 500H neutral salt spray test)
Physical size	L1000 (500/300) *w37*w65 (standard bracket without baffle)
Product Power	48W/m
Product  Color  Temperature	RGBW、 RGB、2200-6500K
Input voltage	DC24V
Control method	DMX512 、ON/OFF
Levels  of protection	IP65
Light Angle	12°、 15°、20°、30°、40°、60°、 15*30°、 15*60°、20*45°
Working    temperature	-35~45℃
Product weight	1.2-1.5Kg (Weight varies by version)

More Models

Product model	Input voltage	Power	Control method	Number of segments	Colour-temperature	Particle count	Angle
A0221S	DC24V	48W	ON/OFF	/	2700K-6500K	24	20°、30°、40°、60°、15*30°、15*60°
A0222C	DC24V	48W	DMX512	1	2700K-6500K	24	20°、30°、40°、60°、15*30°、15*60°
A0223C	DC24V	48W	DMX512	4	2700K-6500K	24	20°、30°、40°、60°、15*30°、15*60°
A0224C	DC24V	48W	DMX512	8	2700K-6500K	24	12°、15°、20°、30°、40°、60°、15*30°、15*60°
A0225C	DC24V	48W	DMX512	1	2200K-6500K	48	20°、30°、40°、60°、15*30°、15*60°
A0226C	DC24V	48W	DMX512	4	2200K-6500K	48	20°、30°、40°、60°、1530°、15*60°
A0227C	DC24V	48W	DMX512	8	2200K-6500K	48	20°、30°、40°、60°、15*30°、15*60°
A0228C	DC24V	48W	DMX512	1	RGBW(3000K、4000K、5000K)	24	20°、30°、40°、20*45°

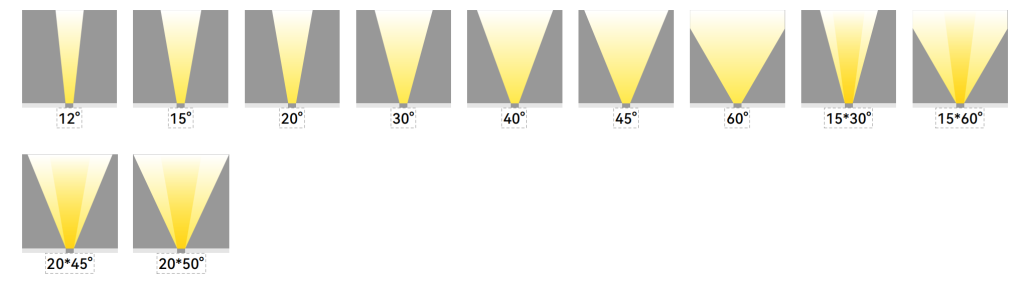

Optional beam angle:

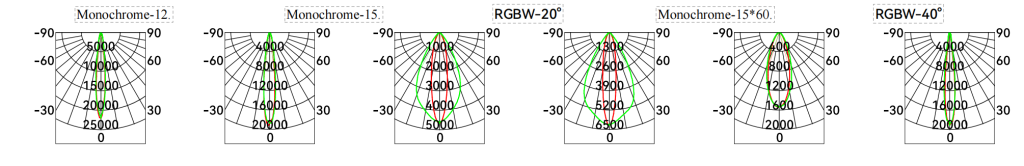

Power distribution curve:

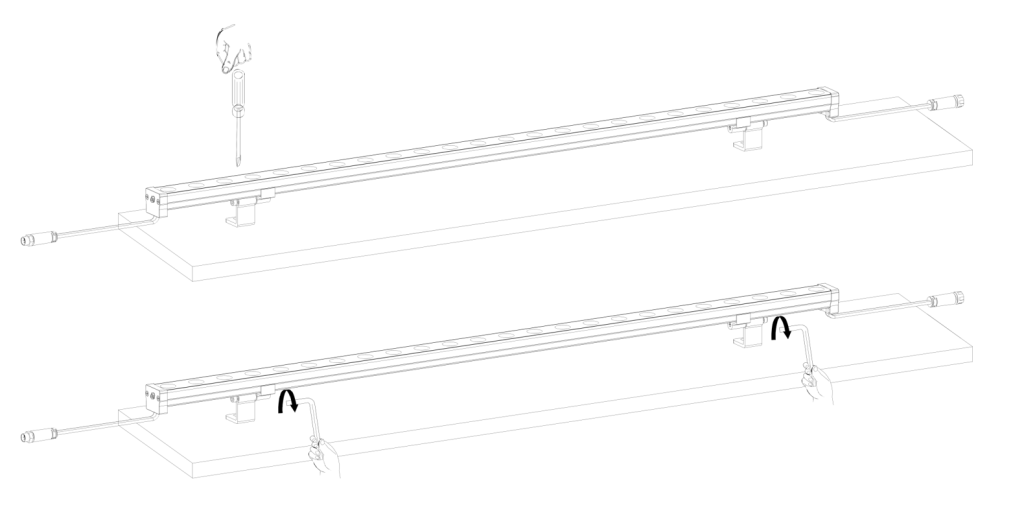

Fixed bracket and fixture mounting surface

Loosen the bolt and adjust After adjusting to the desired angle, tighten the the angle of the lamp bracket bolt to secure the lamp

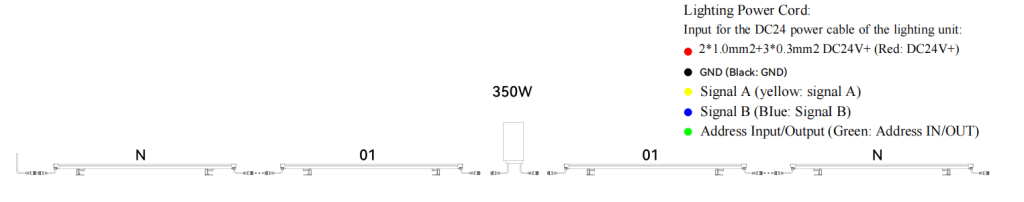

Lighting Wiring and Cable Interface (DMX512 Control)

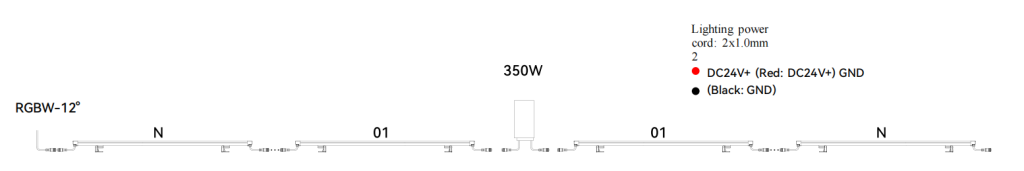

Lighting Wiring: CabIe Connection (single-Color Permanent Illumination)

Number of lamps required in series:
Based on the lamp socket and its cable, the current through the first lamp in each string should not exceed 6A. Considering cable power loss, the actual number of strings is calculated as: (6A*24V/total lamp power). For example, with a 24V system and 24W lamps, the allowable number of strings is: (6A*24V)/24W = 6 strings.
