Pixel Video
Product picture

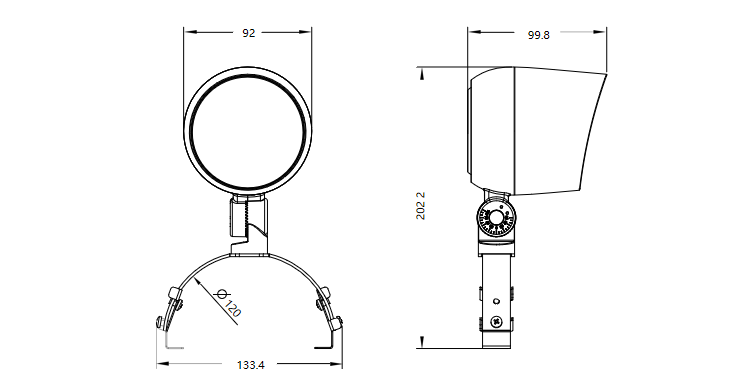

Product Size

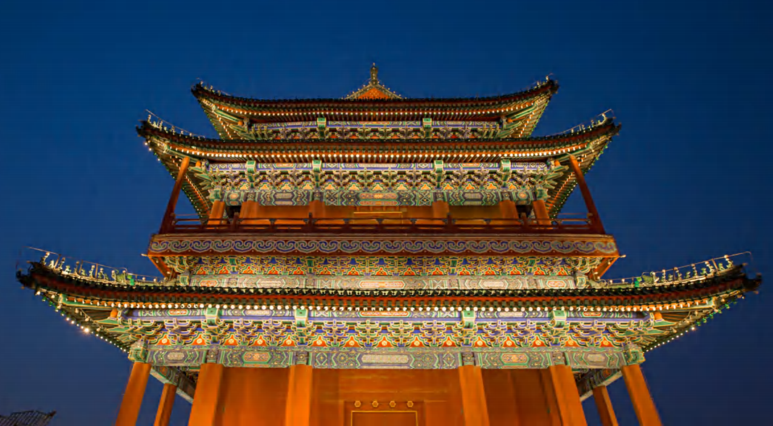

Real case
Product Specification
| Lamp Body Material | ADC12 aluminum alloy lamp body, lamp cover, 4mm ultra-white tempered glass, stainless steel mounting drag bracket, 304 stainless steel hook |
| Surface Treatment | Nano-level high weather resistance and anti-corrosion powder electrostatic spraying (can pass 500H neutral salt spray test) |
| Physical Dimension | L99.8W92H202.2mm (standard bracket) |
| Product Power | 7-15W |
| Product Color Temperature | RGBW, RGB, 2200-6500K |
| Input Voltage | DC24V |
| Control Mode | DMX512, ON/OFF |
| Protection Grade | IP65 |
| Beam Angle | 3.8°, 7°, 10°, 20°, 30°, 40°, 50° |
| Operating Temperature | -35~45℃ |
| Product weight | 0.7Kg |
More Models
| Product mo-del | Input voltage | Power | Control method | Colour te–mperature | The number of particles | Angle |
| K0301S | DC24V | 9w | ON/OFF | 2700K、3000K、4000K、5000K、6500K | 5 | 10° 、20° 、30° 、40° 、50° |
| K0302S | DC24V | 12w | ON/OFF | 2200-6500K | 5 | 10 、20 、30 、40 、50 |
| K0303S | DC24V | 7w | ON/OFF | 2200-6500K | 1 | 3.8° |
| K0304C | DC24V | 9w | DMX512 | 2200-6500K | 5 | 10°、20°、30°、40°、50° |
| K0305C | DC24V | 12w | DMX512 | 2200-6500K | 5 | 10°、20°、30°、40° 、50° |
K0306C | DC24V | 7w | DMX512 | 2200-6500K | 1 | 3.8° |
| K0307C | DC24V | 12w | DMX512 | RGBw (3000K、4000K、5000K) | 5 | 10°、20°、30°、40°、50° |
| K0308C | DC24V | 10w | DMX512 | RGBw (3000K、4000K、5000K) | 1 | 7° |
| K0309C | DC24V | 15w | DMX512 | RGBw (3000K、4000K、5000K) | 6 | 10°、20° 、30°、40° 、50° |

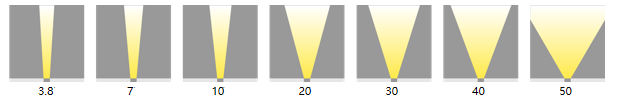

Optional beam angle：

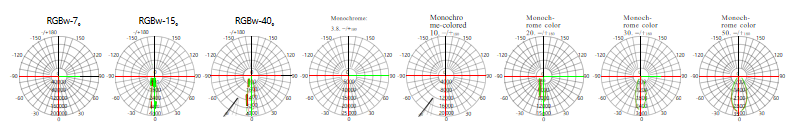

Light distribution curve:

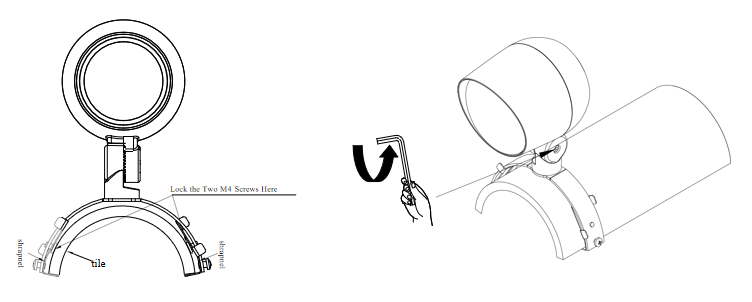

Adjust the shrapnel on both sides of the lamp into the tiles,Lock the M4 Screw to Secure the Shrapnel Holder.
Angle adjustment, angle adjustment range -90° to 45°

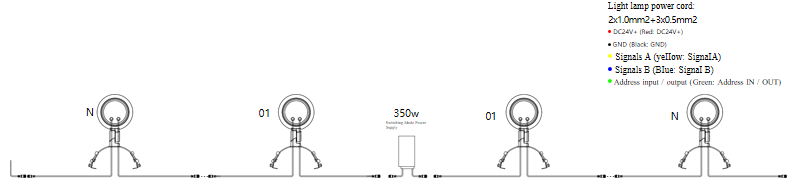

Low-voltage belt control lamp wiring (waterproof joint)

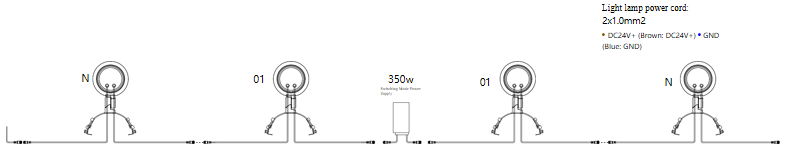

Low voltage monochrome lighting lamp wiring (waterproof joint)
Quantity requirement of lamp connections:
According to the lamp plug and the cable, the current 6A; considering the cable power, the actual number of lamps is: (6A * 24V / lamp power) for example: 24V lamp power 10w, the actual number of lamps: (6A * 24V) / 10 w = 14 PCS.
