Pixel Video
Product picture

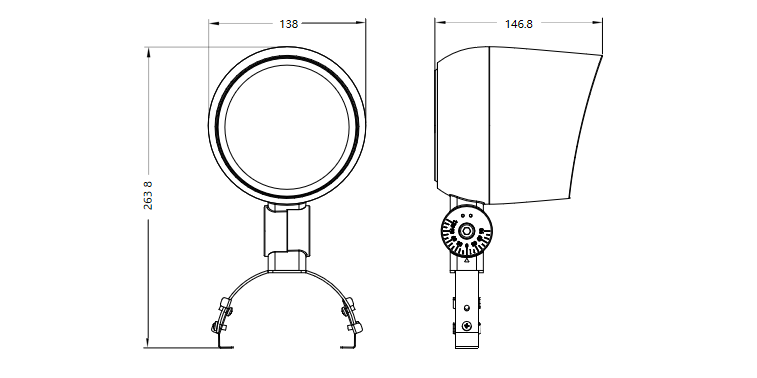

Product Size

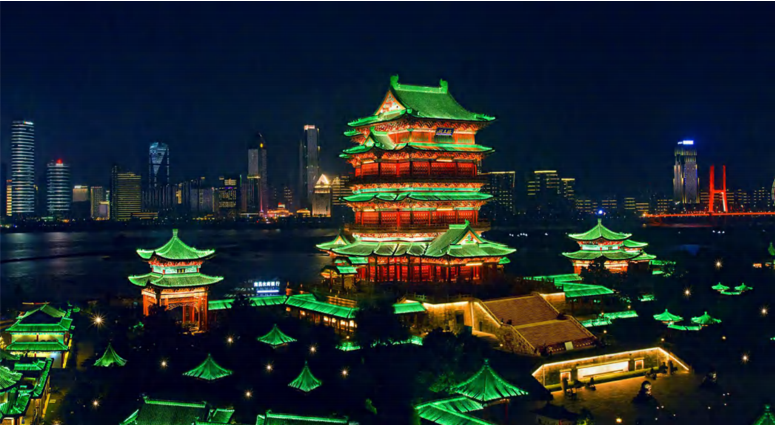

Real case
Product Specification
| Lamp Body Material | ADC12 aluminum alloy lamp body, lamp cover, 4mm ultra-white tempered glass, stainless steel mounting hoop bracket, 304 stainless steel hook |
| Surface Treatment | Nano-level high weather resistance and anti-corrosion powder electrostatic spraying (can pass 500H neutral salt spray test) |
| Physical Dimension | L146.8W138H263.8mm (standard base) |
| Product Power | 718-36W |
| Product Color Temperature | RGBW, RGB, 2200-6500K |
| Input Voltage | DC24V |
| Control Mode | DMX512, ON/OFF |
| Protection Grade | IP65 |
| Beam Angle | 3.8°, 7°, 10°, 20°, 30°, 40°, 50° |
| Operating Temperature | -35~45℃ |
| Product weight | 2Kg |
More Models
| Product mo-del | Input voltage | Power | Control method | Colour te–mperature | The number of particles | Angle |
| K0401S | DC24V | 18w | ON/OFF | 2200-6500K | 9 | 10°、20° 、30°、40° 、50° |
| K0402S | DC24V | 18w | ON/OFF | 2200-6500K | 5 | 3.8° |
| K0403C | DC24V | 18w | DMX512 | 2200-6500K | 9 | 10 °、20 °、30° 、40° 、50° |
| K0404C | DC24V | 18w | DMX512 | 2200-6500K | 5 | 3.8° |
| K0405C | DC24V | 18w | DMX512 | RGBw (3000K、4000K、5000K) | 9 | 10°、20° 、30° 、40° 、50° |
| K0406C | DC24V | 18w | DMX512 | RGBw (3000K、4000K、5000K) | 3 | 7° |
| K0407S | DC24V | 24w | ON/OFF | 2200-6500K | 12 | 10° 、20° 、30° 、40° 、50° |
| K0408S | DC24V | 24w | ON/OFF | 2200-6500K | 5 | 3.8° |
| K0409C | DC24V | 24w | DMX512 | 2200-6500K | 12 | 10°、20°、30° 、40° 、50° |
| K0410C | DC24V | 24w | DMX512 | 2200-6500K | 5 | 3.8° |
| K0411C | DC24V | 24w | DMX512 | RGBw (3000K、4000K、5000K) | 9 | 10°、20° 、30°、40°、50° |
| K0412C | DC24V | 24w | DMX512 | RGBw (3000K、4000K、5000K) | 3 | 7° |

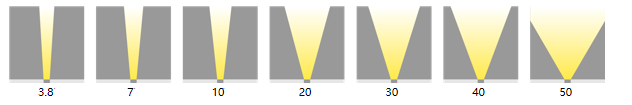

Optional beam angle：

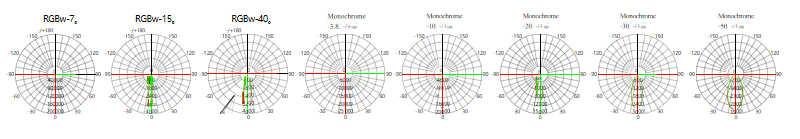

Light distribution curve:
| Product mo-del | Input voltage | Power | Control method | Colour te–mperature | The number of particles | Angle |
| K0413S | AC220V | 18w | ON/OFF | 2200-6500K | 9 | 10°、20°、30°、40° 、50° |
| K0414S | AC220V | 18w | ON/OFF | 2200-6500K | 5 | 3.8° |
| K0415C | AC220V | 18w | DMX-1CH | 2200-6500K | 9 | 10° 、20° 、30° 、40° 、50° |
| K0416C | AC220V | 18w | DMX-1CH | 2200-6500K | 5 | 3.8 |
| K0417C | AC220V | 18w | DMX-4CH | RGBw (3000K、4000K、5000K) | 9 | 10° 、20 °、30° 、40°、50° |
| K0418C | AC220V | 18w | DMX-4CH | RGBw (3000K、4000K、5000K) | 3 | 7° |
| K0419S | AC220V | 24w | ON/OFF | 2200-6500K | 12 | 10 、20 、30 、40 、50 |
| K0420S | AC220V | 24w | ON/OFF | 2200-6500K | 5 | 3.8° |
| K0421C | AC220V | 24w | DMX-1CH | 2200-6500K | 12 | 10°、20° 、30° 、40° 、50° |
| K0422C | AC220V | 24w | DMX-1CH | 2200-6500K | 5 | 3.8° |
| K0423C | AC220V | 24w | DMX-4CH | RGBw (3000K、4000K、5000K) | 9 | 10°、20° 、30° 、40° 、50° |
| K0424C | AC220V | 24w | DMX-4CH | RGBw (3000K、4000K、5000K) | 3 | 7° |
| K0425C | AC220V | 36w | DMX-4CH | RGBw (3000K、4000K、5000K) | 12 | 10° 、20° 、30° 、40° 、50° |

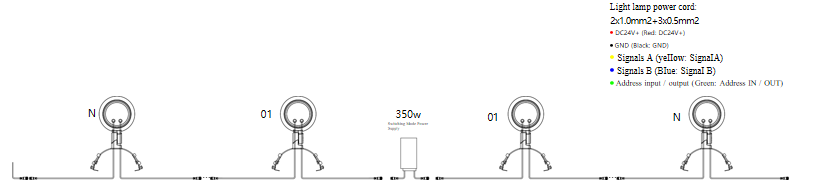

Low-voltage belt control lamp wiring (waterproof joint)

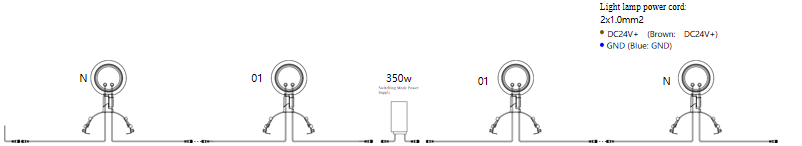

Low voltage monochrome lighting lamp wiring (waterproof joint)
Quantity requirement of lamp connections:
According to the lamp plug and the cable, the current 6A; considering the cable power, the actual number of lamps is: (6A * 24V / lamp power) for example: 24V lamp power 10w, the actual number of lamps: (6A * 24V) / 10 w = 14 PCS.
