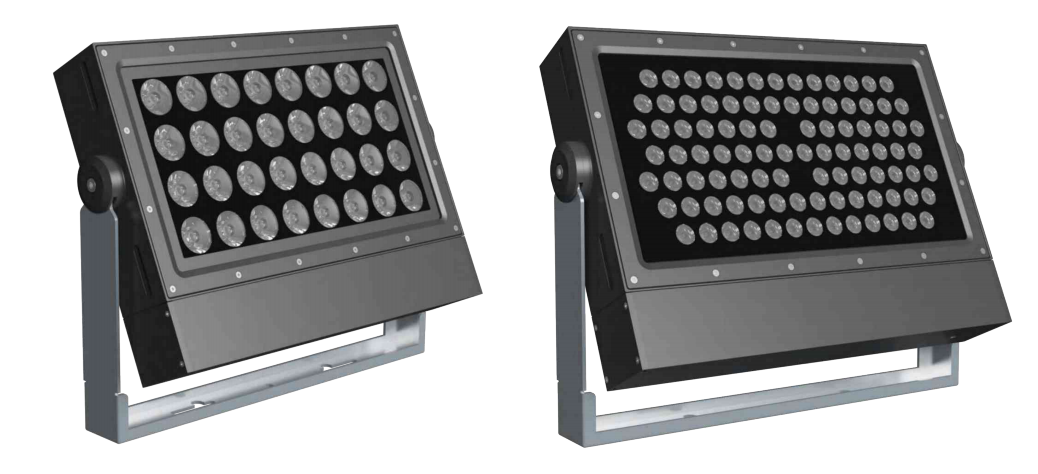

Product picture

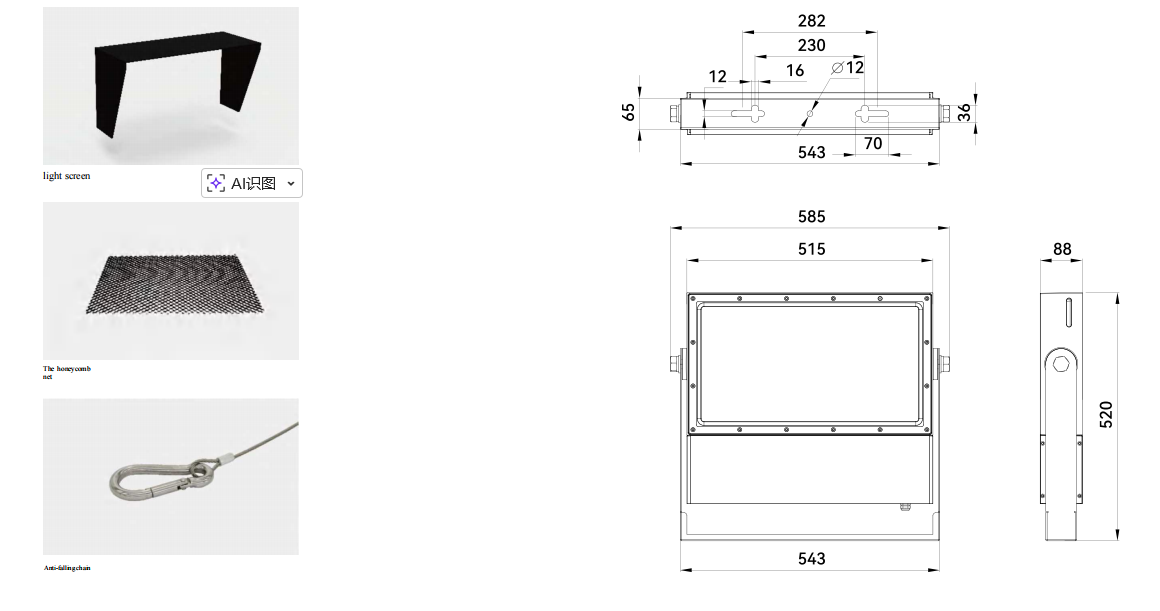

Product Size

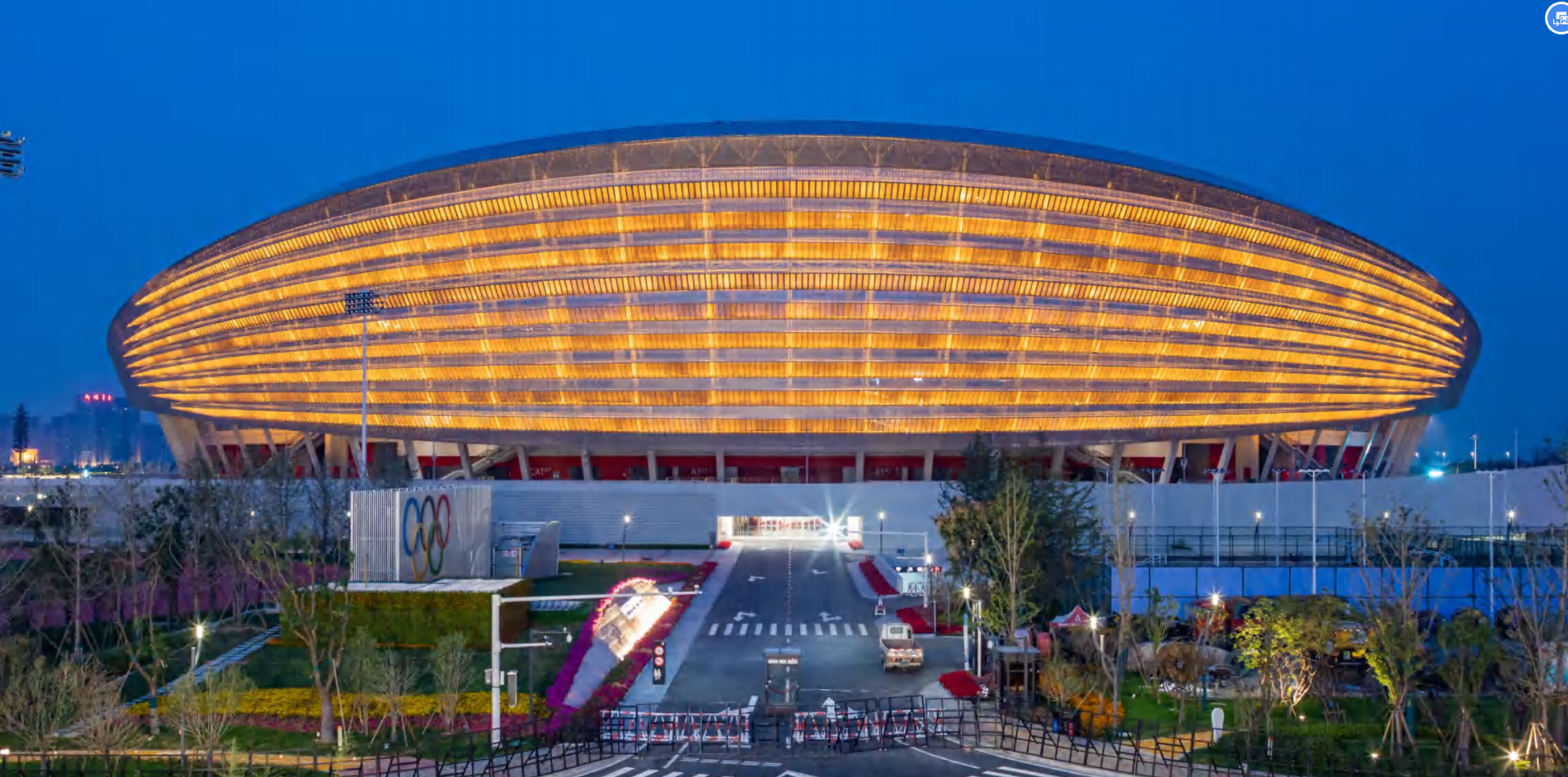

Real case
Product Specification
| Item | Specification |
|---|---|
| Light body material | ADC 12 aluminum alloy lamp body and face cover, 4mm ultra-white tempered glass, 304 stainless steel bracket |
| Surface preparation | Electrostatic spraying of nanoscale high weather corrosion resistance powder (through 500H neutral salt spray test) |
| Physical size | L585 * W88 * H520mm (Standard Stent) |
| Product power | Maximum 300w |
| Product color temperature | RGBW, RGB, 2200K-6500K |
| Input voltage | AC220V |
| Control method | DMX512、ON/OFF |
| Levels of protection | IP65 |
| Luminescence Angle | 3.5°、10°、15°、20°、30°、35°、40°、45°、60° |
| Working temperature | -35~45℃ |
| Product weight | 17Kg |
More Models
| Product model | Input voltage | Power | Control method | The number of particles | Colour temperature | Angle |
|---|---|---|---|---|---|---|
| H0901S | AC220V | 300W | ON/OFF | 120 | 2200K-6500K | 10°、20°、30°、40°、60° |
| H0902S | AC220V | 260W | ON/OFF | 108 | 2200K-6500K | 10°、20°、30°、40°、60° |
| H0903S | AC220V | 300W | ON/OFF | 64 | 2200K-6500K | 3.5°、5°、12° |
| H0904S | AC220V | 200W | ON/OFF | 64 | 2200K-6500K | 10°、20°、30°、40°、60° |
| H0905C | AC220V | 300W | DMX512 | 120 | 2200K-6500K | 10°、20°、30°、40°、60° |
| H0906C | AC220V | 260W | DMX512 | 108 | 2200K-6500K | 10°、20°、30°、40°、60° |
| H0907C | AC220V | 300W | DMX512 | 120 | RGBW (3000K、4000K、5000K) | 15°、30°、40°、60° |
| H0908C | AC220V | 300W | DMX512 | 64 | 2200K-6500K | 3.5°、5°、12° |
| H0909C | AC220V | 300W | DMX512 | 64 | R+G+B+W (3000K、4000K、5000K) | 3.5°、5°、12° |

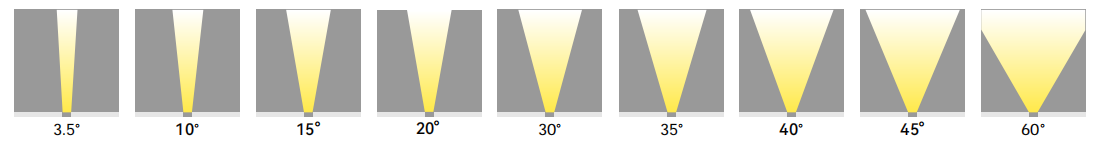

Optional beam angle:

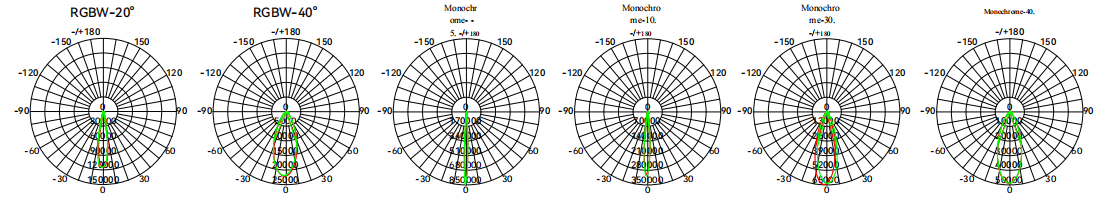

Power distribution curve:
ixture Mounting Bracket
For high-altitude installation, a steel cable must be used for secondary protection to prevent personal injury or property damage caused by fixture falling.
Installation Notes
- Insert the flat washer and spring washer in sequence, screw on the nut, then tighten with a tool (recommended torque: 65N·m). Use 2-3 screws.

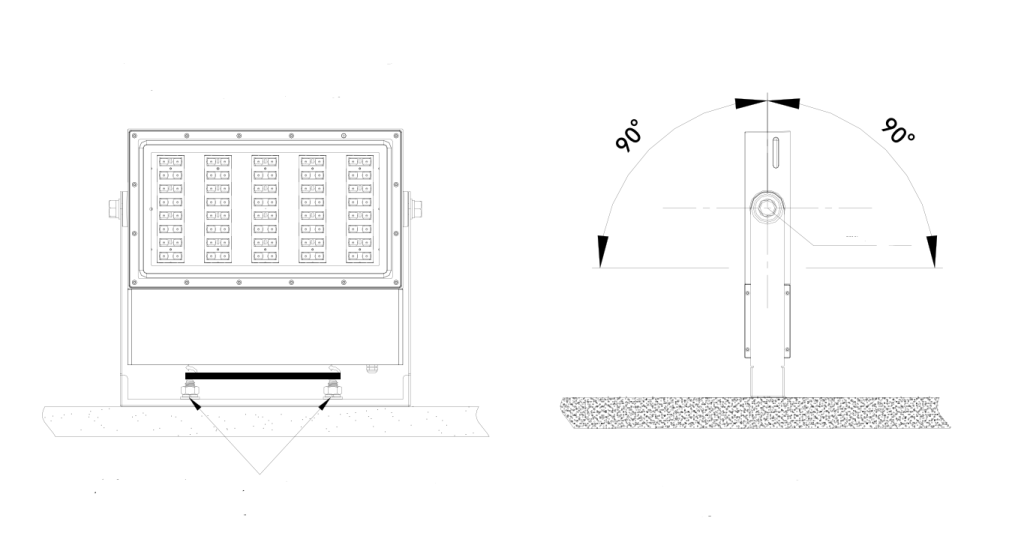

Angle Adjustment
- Use a tool to loosen the angle adjustment screws on both sides first, adjust to the desired angle, then retighten.
- Angle adjustment range: +90°~-90°

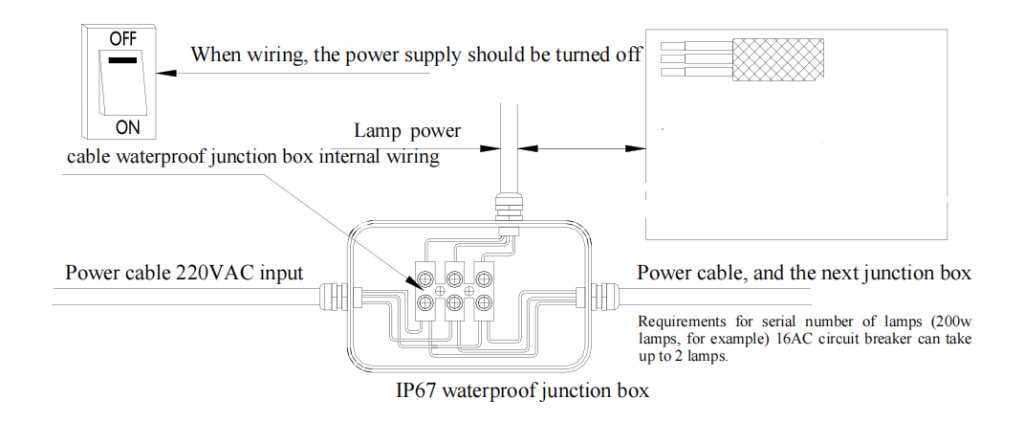

Power wiring of high voltage lamps (bare wire)

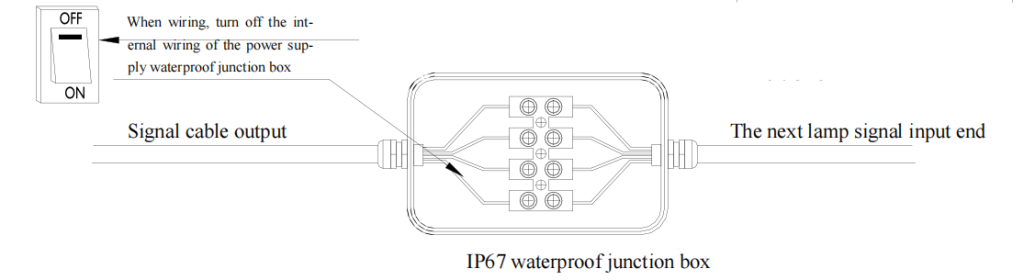

Light lamp signal wiring (four-core bare wire in and out)

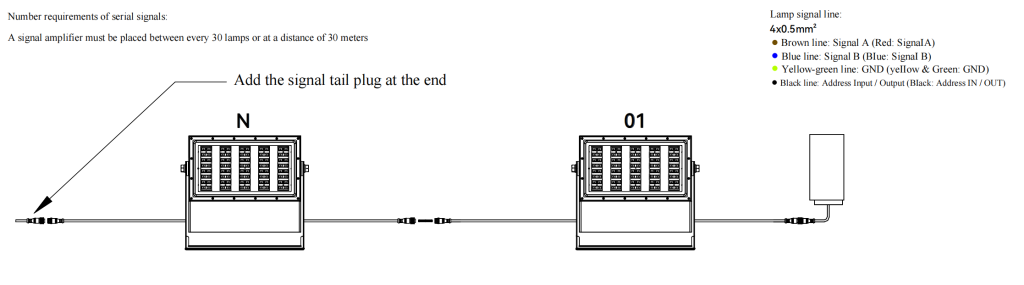

Signal Daisy-Chain Quantity Requirements:
A signal amplifier must be installed between every 30 fixtures or at a 30-meter distance.
Lamp signal wiring (waterproof joint in and out)
