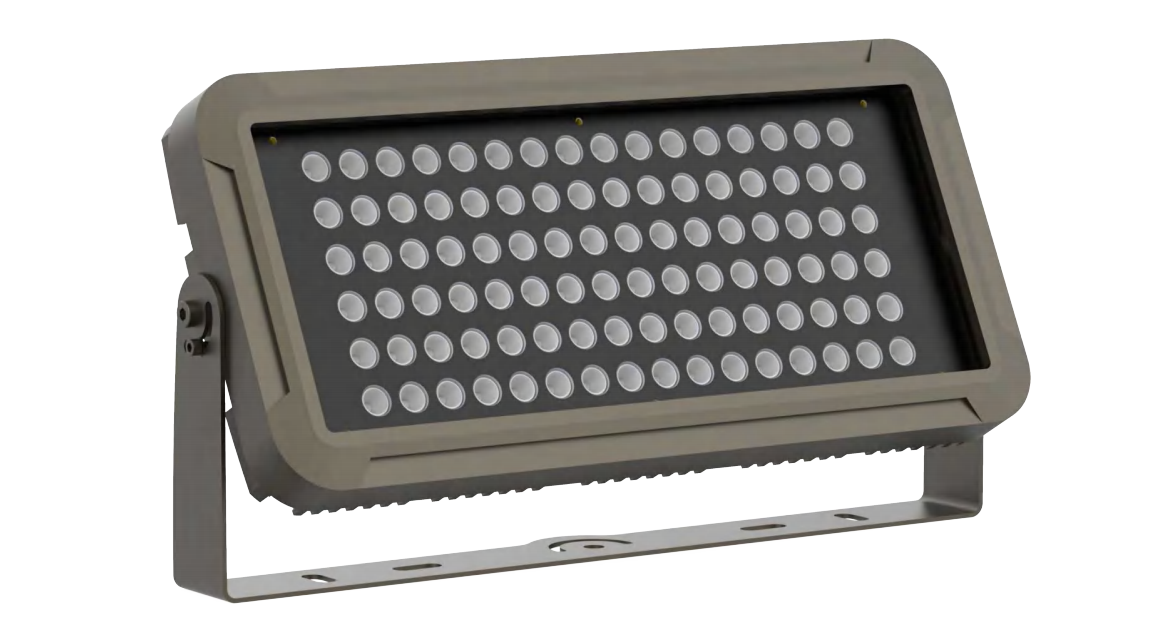

Product picture

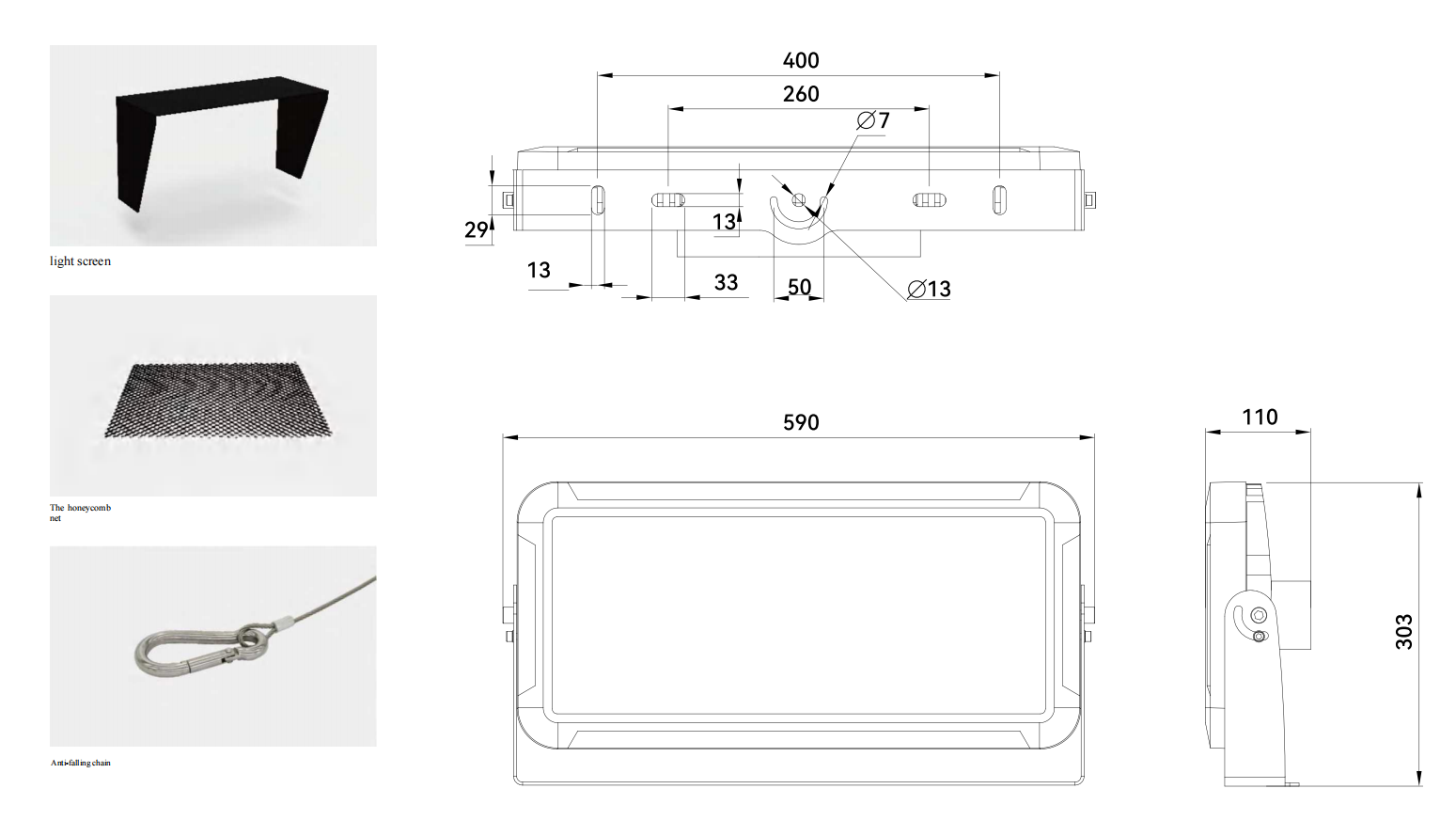

Product Size

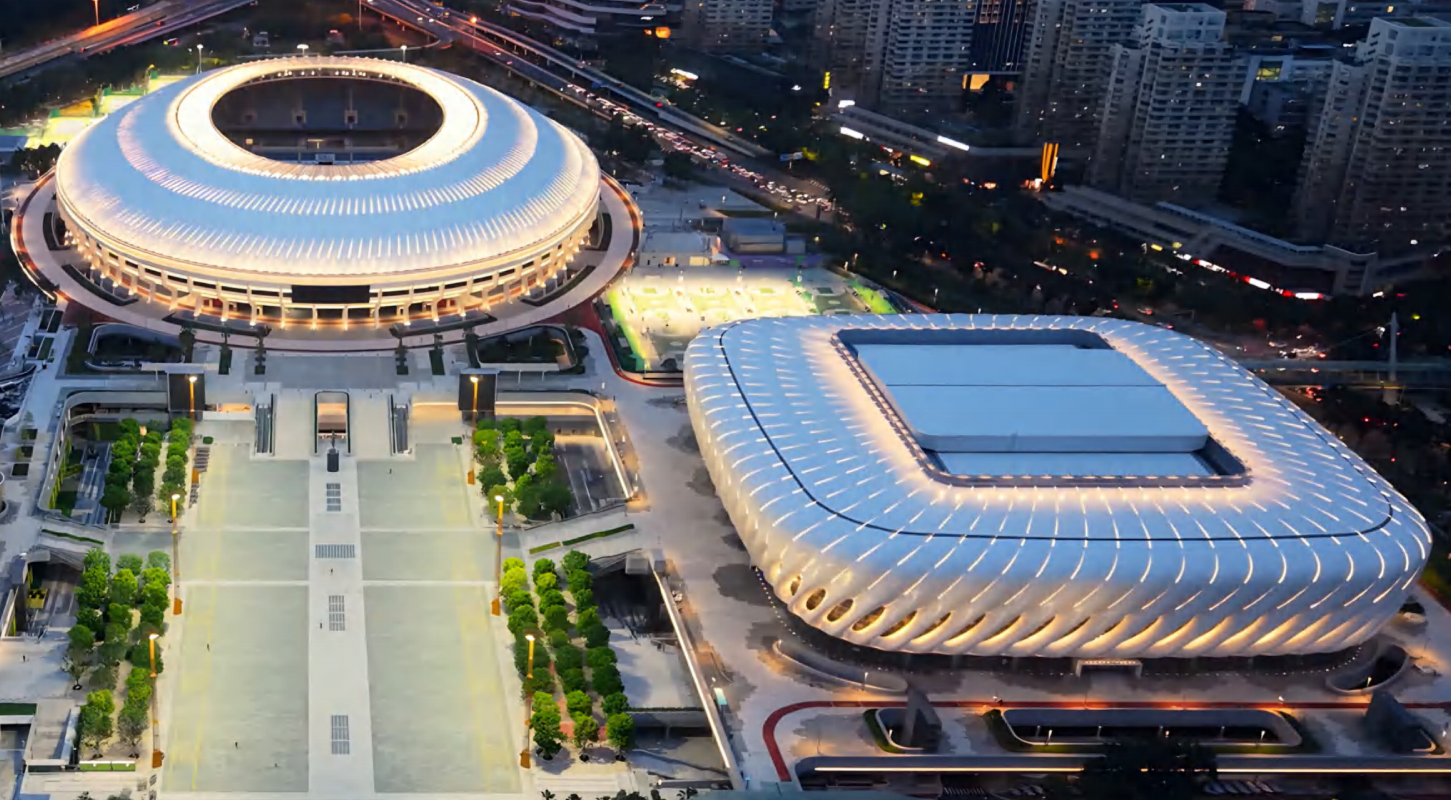

Real case
Product Specification
| Item | Specification |
|---|---|
| Light body material | ADC 12 aluminum alloy lamp body and face cover, 4mm ultra-white tempered glass, 304 stainless steel bracket |
| Surface preparation | Electrostatic spraying of nanoscale high weather corrosion resistant powder (through 500H neutral salt spray test) |
| Physical size | L590 * W110 * H303mm (standard stent) |
| Product power | Maximum 240w |
| Product color temperature | RGBW、RGB、2200K-6500K |
| Input voltage | AC220V |
| Control method | DMX512、ON/OFF |
| Levels of protection | IP65 |
| Luminescence Angle | 5°、10°、15°、20°、30°、35°、40°、45°、60° |
| Working temperature | -35~45℃ |
| Product weight | 11.5Kg |
More Models
| Product model | Input voltage | Power | Control method | The number of particles | Colour temperature | Angle |
|---|---|---|---|---|---|---|
| H1001S | AC220V | 200W | ON/OFF | 96 | 2200K-6500K | 10°、20°、30°、40°、60° |
| H1002S | AC220V | 150W | ON/OFF | 60 | 2200K-6500K | 10°、20°、30°、40°、60° |
| H1003S | AC220V | 200W | ON/OFF | 60 | 2200K-6500K | 5°、10°、15°、20°、35°、45° |
| H1004C | AC220V | 200W | DMX512 | 96 | 2200K-6500K | 10°、20°、30°、40°、60° |
| H1005C | AC220V | 200W | DMX512 | 96 | RGBW (3000K、4000K、5000K) | 15°、30°、40°、60° |
| H1006C | AC220V | 150W | DMX512 | 60 | RGBW (3000K、4000K、5000K) | 15°、30°、40°、60° |
| H1007C | AC220V | 240W | DMX512 | 96 | RGBW (3000K、4000K、5000K) | 15°、30°、40°、60° |
| H1008C | AC220V | 200W | DMX512 | 60 | R+G+B+W (3000K、4000K、5000K) | 5°、10°、15°、20°、35°、45° |

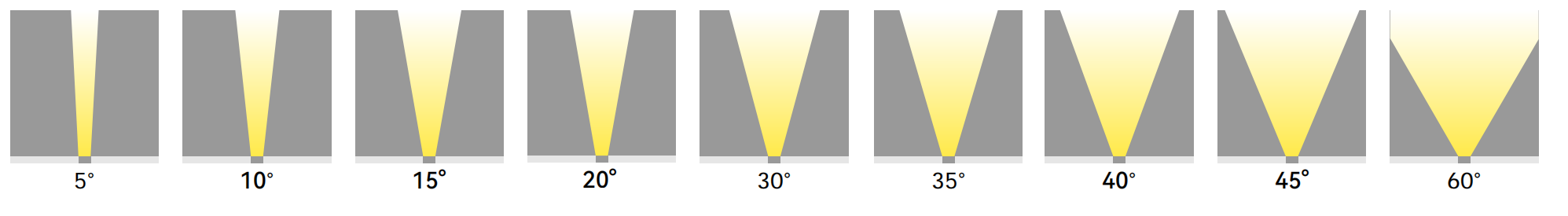

Optional beam angle:

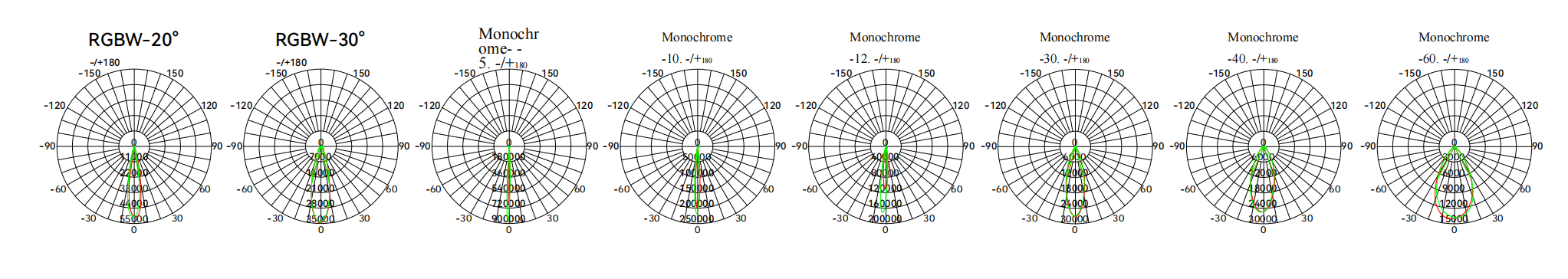

Power distribution curve:
Fixture Mounting Bracket
- Secure the bracket with M12 nuts
- Fix here with M6 nuts
Adjust the Fixture Angle and Tighten the Bolts to Secure the Fixture at the Desired Angle
- Adjust the light source surface to the required projection angle, then use a 5# wrench to tighten the angle adjustment bolts on both ends.
- Adjustable angle range: -15° to +105°
Note
For high-altitude installation, a steel cable must be used for secondary protection to prevent personal injury or property damage caused by fixture falling.
Power wiring of high voltage lamps (bare wire)
Wiring of high-voltage lamps (bare wire)
Signal wiring of high-voltage lamps (four-core bare wire)
Light lamp signal wiring (five-core bare wire, signal one in and one out)
Signal wiring of high-voltage lamps (waterproof joint)
