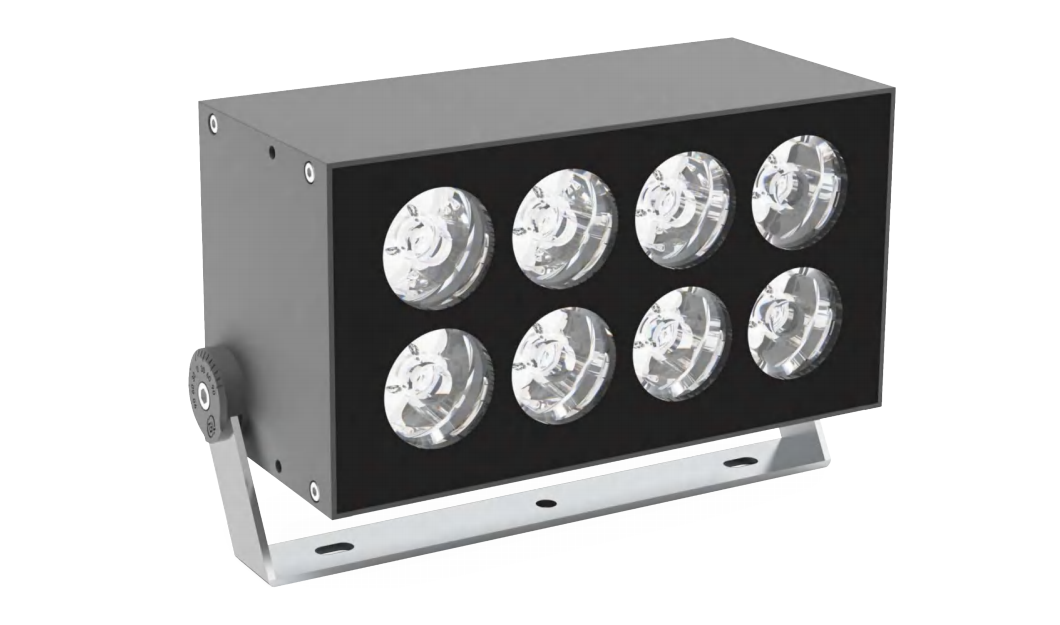

LED projector A Chinese Odyssey Part One: Pandoras Box S-Ⅱ

Product picture

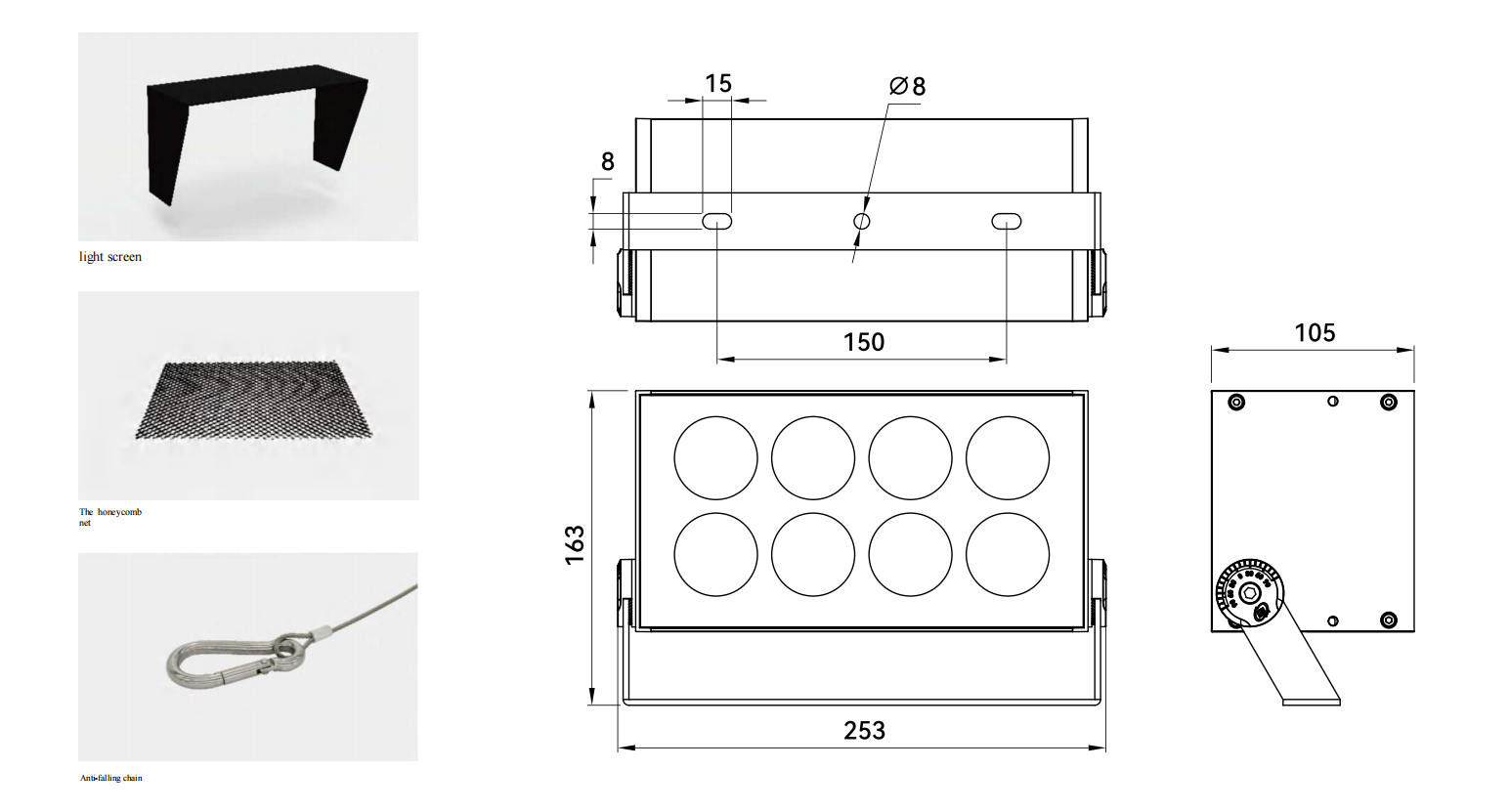

Product Size

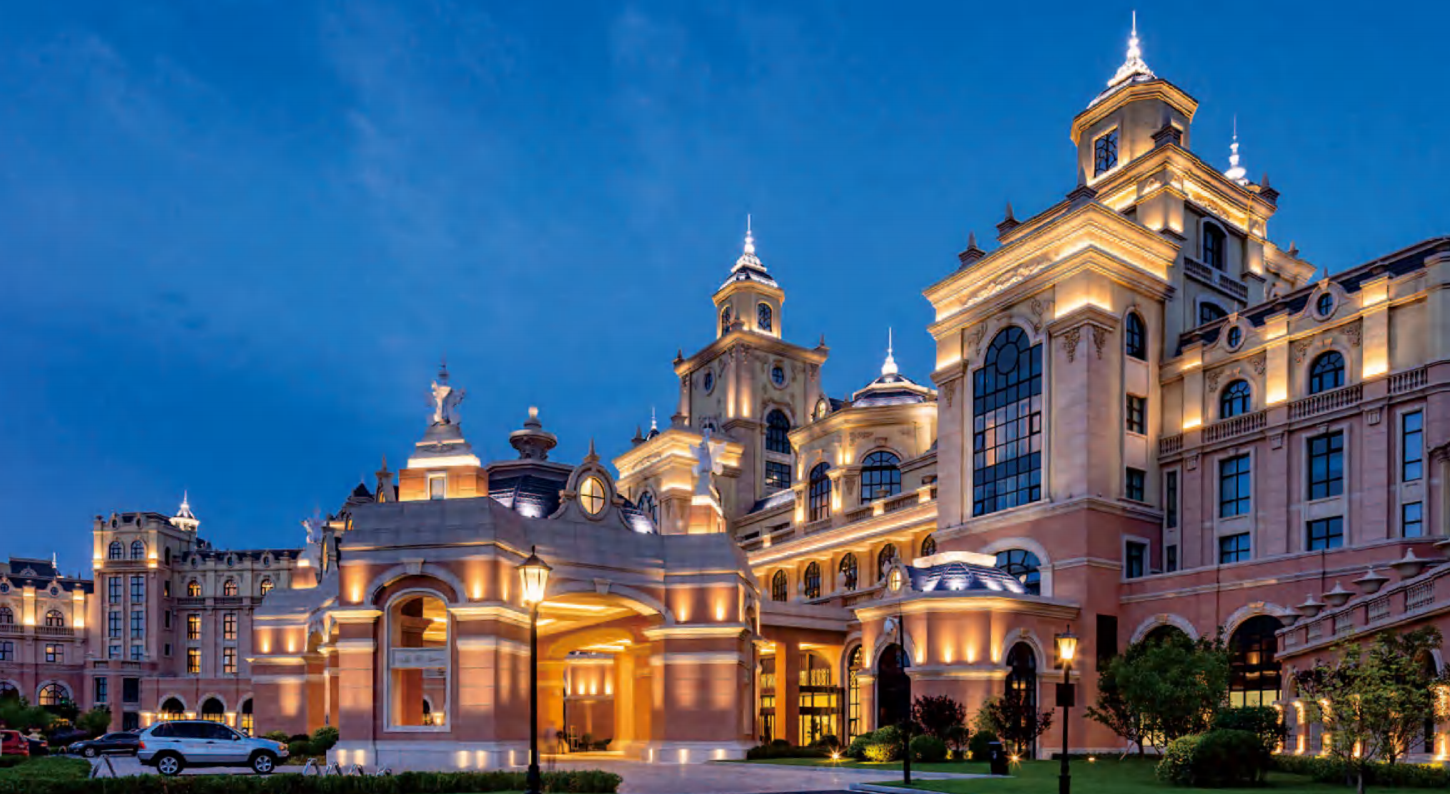

Real case

Product Specification

Item	Specification
Light body material	6063-T5 aviation grade aluminum alloy lamp body, ADC 12 aluminum alloy end cover, 4mm ultra-white tempered glass
Surface preparation	Electrostatic spraying of nanoscale high weather corrosion resistance powder (through 500H neutral salt spray test)
Physical size	L253W105H163mm
Product power	Maximum 72w
Product color temperature	RGBW、2200K-6500K
Input voltage	DC24V、AC220V
Control method	DMX512、ON/OFF
Levels of protection	IP66
Luminescence Angle	3.8°、5°、10°、15°、20°、30°、40°、60°
Working temperature	-35~45℃
Product weight	2.7Kg

More Models

Product model	Input voltage	Power	Control method	The number of particles	Colour temperature	Angle
H0201S	DC24V	72W	ON/OFF	24	2200K-6500K	10°、20°、30°、40°、60°
H0202S	DC24V	36W	ON/OFF	18	2200K-6500K	5°
H0203S	DC24V	24W	ON/OFF	8	2200K-6500K	3.8°
H0204C	DC24V	72W	DMX512	24	2200K-6500K	10°、20°、30°、40°、60°
H0205C	DC24V	36W	DMX512	18	2200K-6500K	5°
H0206C	DC24V	24W	DMX512	8	2200K-6500K	3.8°
H0207C	DC24V	60W	DMX512	24	R+G+B	10°、20°、30°、40°、60°
H0208C	DC24V	60W	DMX512	24	R+G+B+W (2200-6500K)	10°、20°、30°、40°、60°
H0209C	DC24V	72W	DMX512	24	The RGBW is a four-in-one one	15°、30°、40°、60°
H0210S	AC220V	72W	ON/OFF	24	2200K-6500K	10°、20°、30°、40°、60°
H0211S	AC220V	36W	ON/OFF	18	2200K-6500K	5°
H0212S	AC220V	24W	ON/OFF	8	2200K-6500K	3.8°
H0213C	AC220V	72W	DMX512	24	2200K-6500K	10°、20°、30°、40°、60°
H0214C	AC220V	36W	DMX512	18	2200K-6500K	5°
H0215C	AC220V	24W	DMX512	8	2200K-6500K	3.8°
H0216C	AC220V	60W	DMX512	24	R+G+B	10°、20°、30°、40°、60°
H0217C	AC220V	60W	DMX512	24	R+G+B+W (2200-6500K)	10°、20°、30°、40°、60°
H0218C	AC220V	72W	DMX512	24	The RGBW is a four-in-one one	15°、30°、40°、60°

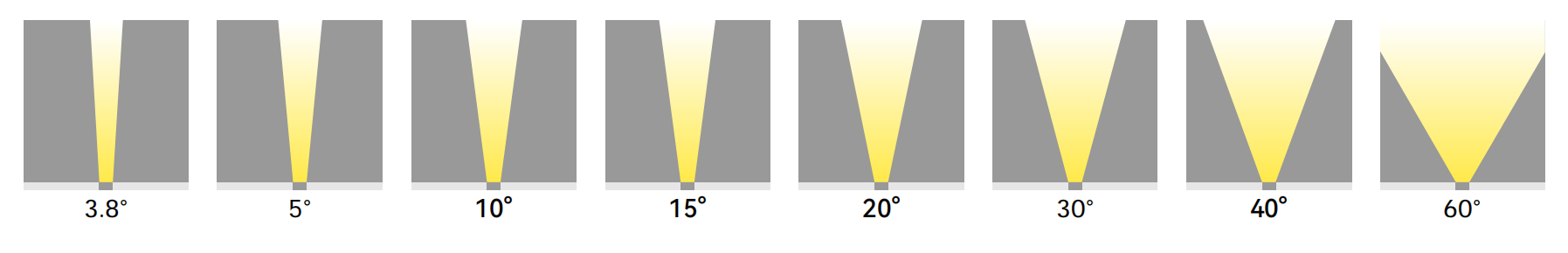

Optional beam angle:

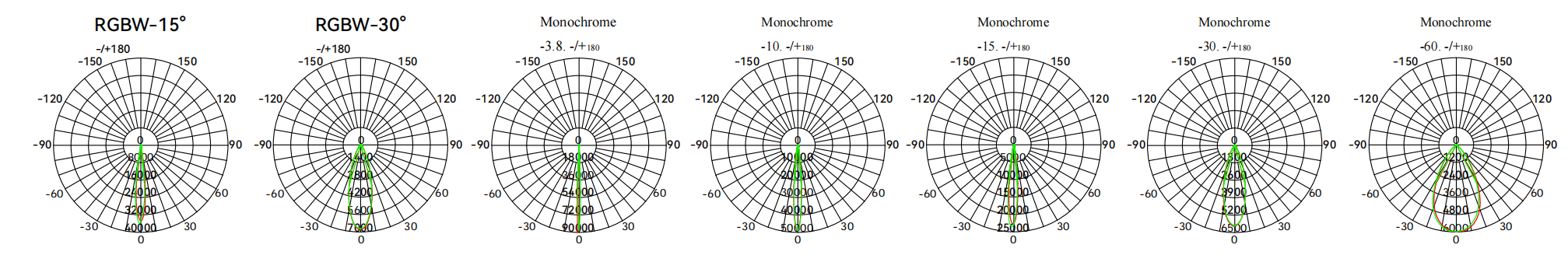

Power distribution curve:

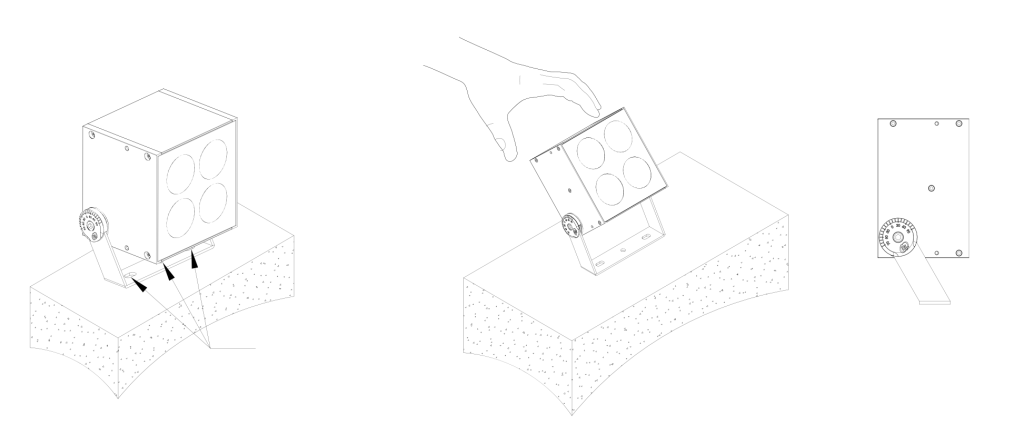

Fixing the fixture bracket Secure the bracket with M8 nuts Adjusting the fixture angle Adjustable angle: -90° to +90°

(Monochrome Always-On) Fixture Wiring (Low Voltage: DC24V/DC36V/DC42V)

• Connect to Constant-Voltage Driver (Internal Wiring)
• Note: The power of fixtures loaded by the constant-voltage driver shall be 80% of the driver’s maximum load power.
• Turn off the power before connecting the fixture (OFF/ON Switch)

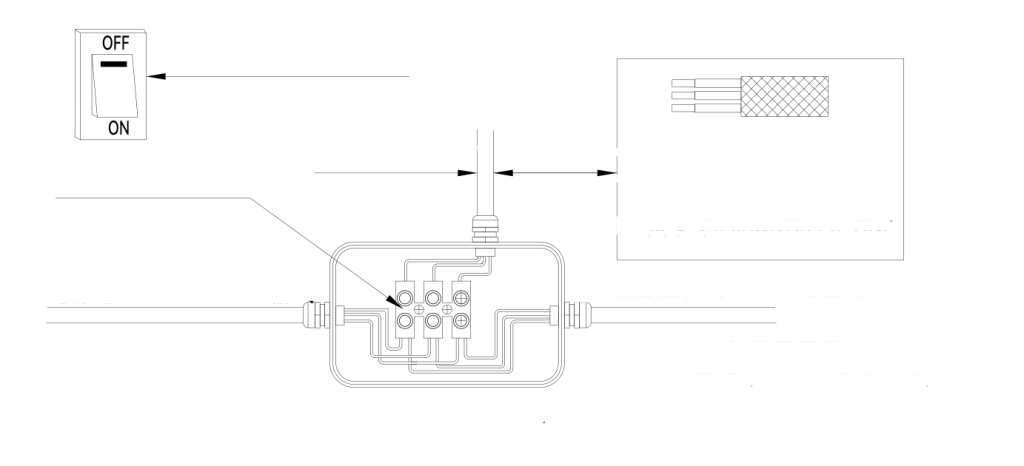

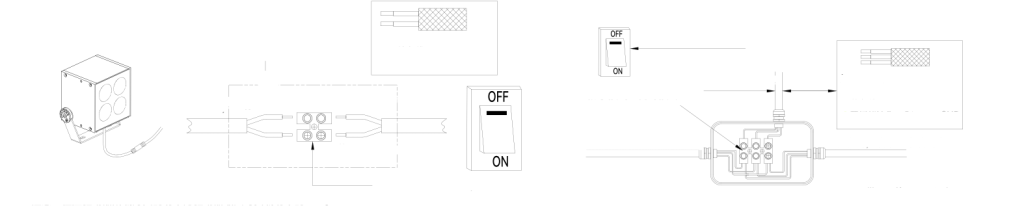

(Monochrome Always-On) Fixture Wiring (High Voltage)

• Turn off the power before connecting the fixture (OFF/ON Switch)
• Power Cable Input: 220V AC
• Internal Wiring of Waterproof Junction Box (Connect to LED Power Cable)
• IP67 Waterproof Junction Box
• Fixture Power Cable: 3*1.0mm²
• Note: The power of fixtures loaded by the constant-voltage driver shall be 80% of the driver’s maximum load power.

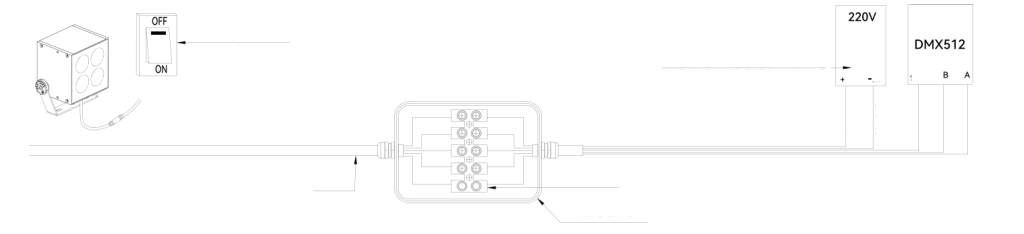

DMX512 Controlled Fixture Wiring (Low-Voltage Bare Wire, Input Only) DC24V/DC36V/DC42V

• Turn off the power before connecting the fixture (OFF/ON Switch)
• IP67 Waterproof Junction Box
• Note: The power of fixtures loaded by the constant-voltage driver shall not exceed 80% of the driver’s maximum load power.
