LED Projector A Chinese Odyssey Part One: Pandoras Box S-I

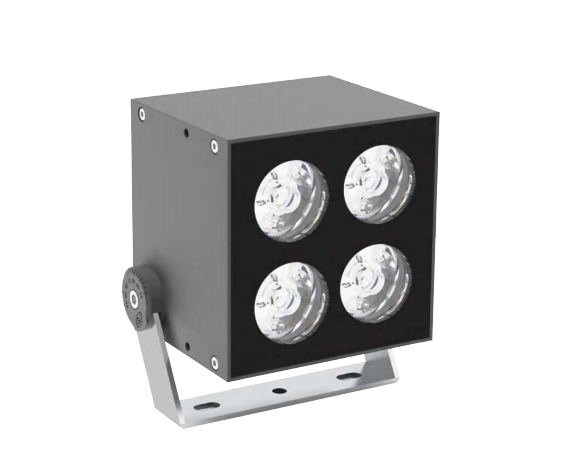

Product picture

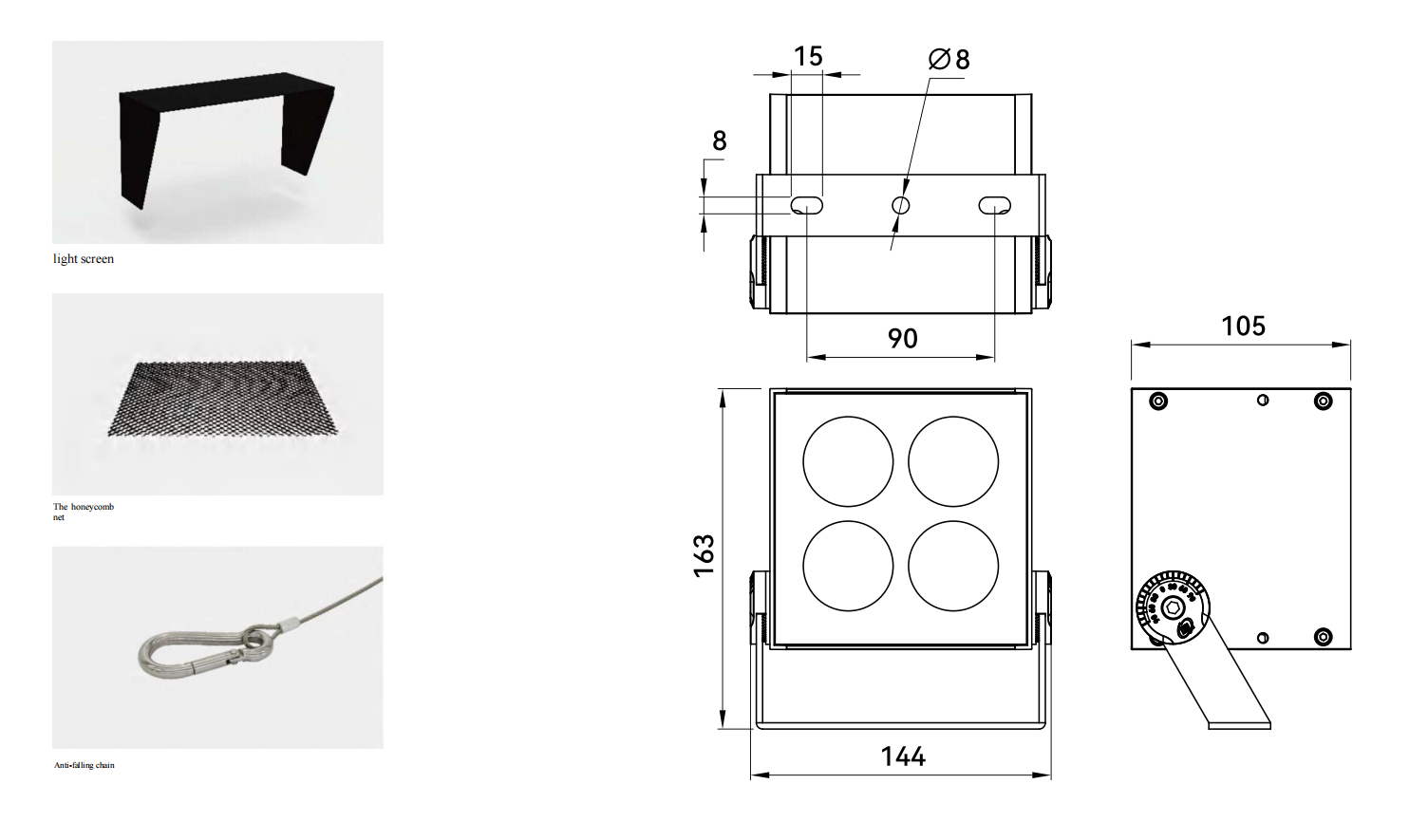

Product Size

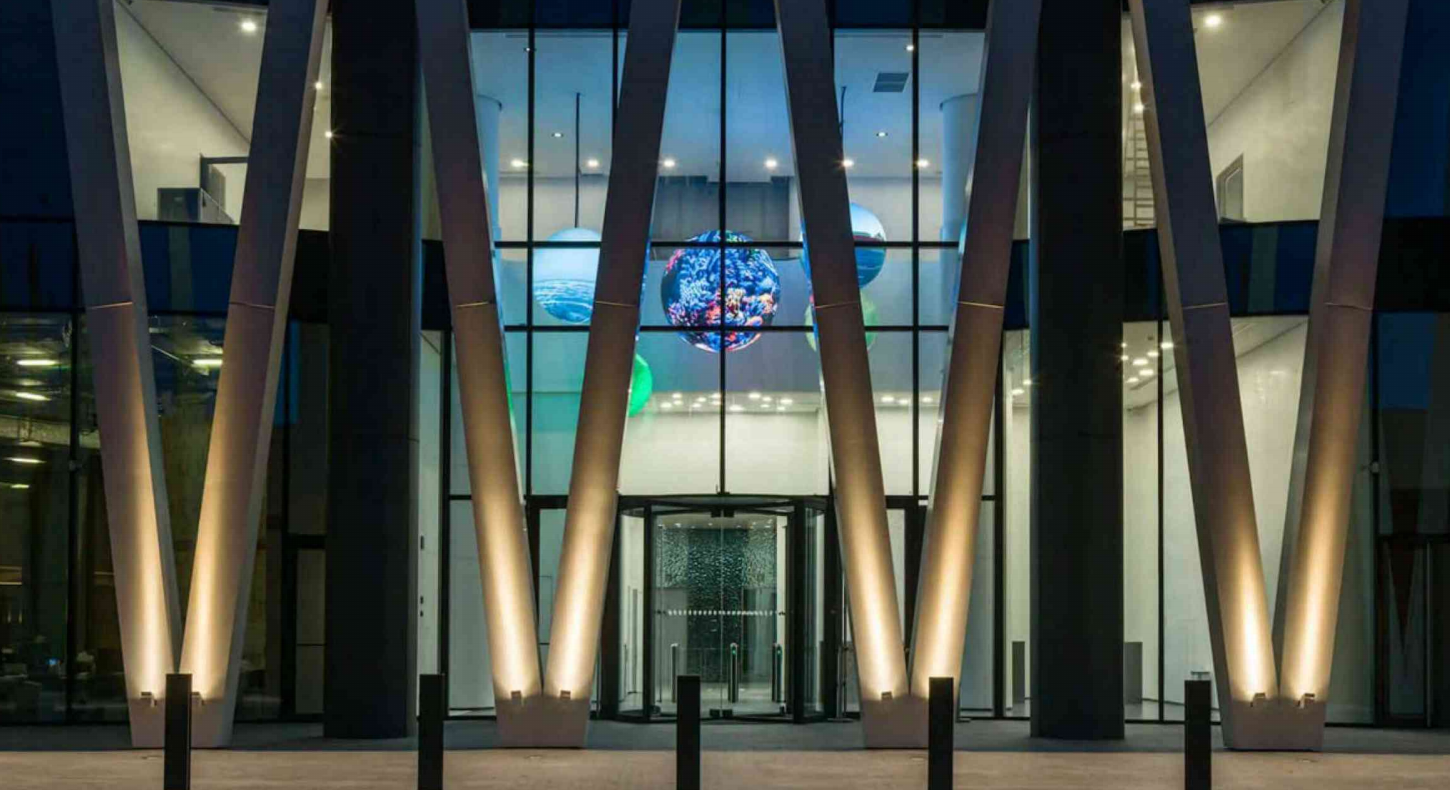

Real case

Product Specification

Item	Specification
Light body material	6063-T5 aviation grade aluminum alloy lamp body, ADC 12 aluminum alloy end cover, 4mm ultra-white tempered glass
Surface preparation	Electrostatic spraying of nanoscale high weather corrosion resistance powder (through 500H neutral salt spray test)
Physical size	L144W105H163mm
Product power	Maximum 40w
Product color temperature	RGBW、2200K-6500K
Input voltage	DC24V、AC220V
Control method	DMX512、ON/OFF
Levels of protection	IP66
Luminescence Angle	3.8°、5°、10°、15°、20°、30°、40°、60°
Working temperature	-35~45℃
Product weight	1.8Kg

More Models

Product model	Input voltage	Power	Control method	The number of particles	Colour temperature	Angle
H0101S	DC24V	40W	ON/OFF	12	2200K-6500K	10°、20°、30°、40°、60°
H0102S	DC24V	18W	ON/OFF	9	2200K-6500K	5°
H0103S	DC24V	12W	ON/OFF	4	2200K-6500K	3.8°
H0104C	DC24V	40W	DMX512	12	2200K-6500K	10°、20°、30°、40°、60°
H0105C	DC24V	18W	DMX512	9	2200K-6500K	5°
H0106C	DC24V	12W	DMX512	4	2200K-6500K	3.8°
H0107C	DC24V	30W	DMX512	12	R+G+B	10°、20°、30°、40°、60°
H0108C	DC24V	30W	DMX512	12	R+G+B+W (2200-6500K)	10°、20°、30°、40°、60°
H0109C	DC24V	40W	DMX512	12	RGBW (3000K、4000K、5000K)	15°、30°、40°、60°
H0110S	AC220V	40W	ON/OFF	12	2200K-6500K	10°、20°、30°、40°、60°
H0111S	AC220V	18W	ON/OFF	9	2200K-6500K	5°
H0112S	AC220V	12W	ON/OFF	4	2200K-6500K	3.8°
H0113C	AC220V	40W	DMX512	12	2200K-6500K	10°、20°、30°、40°、60°
H0114C	AC220V	18W	DMX512	9	2200K-6500K	5°
H0115C	AC220V	12W	DMX512	4	2200K-6500K	3.8°
H0116C	AC220V	30W	DMX512	12	R+G+B	10°、20°、30°、40°、60°
H0117C	AC220V	30W	DMX512	12	R+G+B+W (2200-6500K)	10°、20°、30°、40°、60°
H0118C	AC220V	40W	DMX512	12	RGBW (3000K、4000K、5000K)	15°、30°、40°、60°

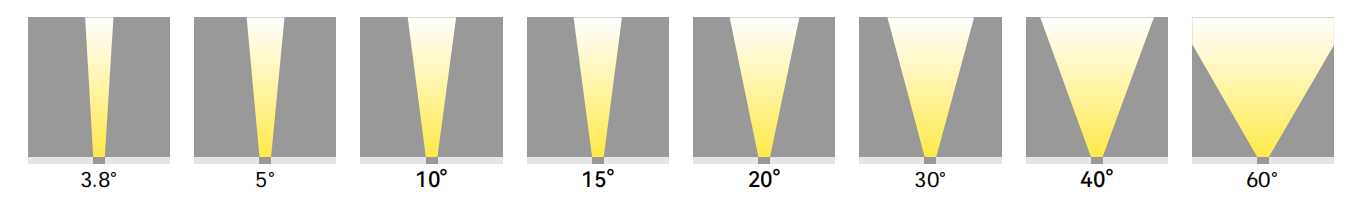

Optional beam angle:

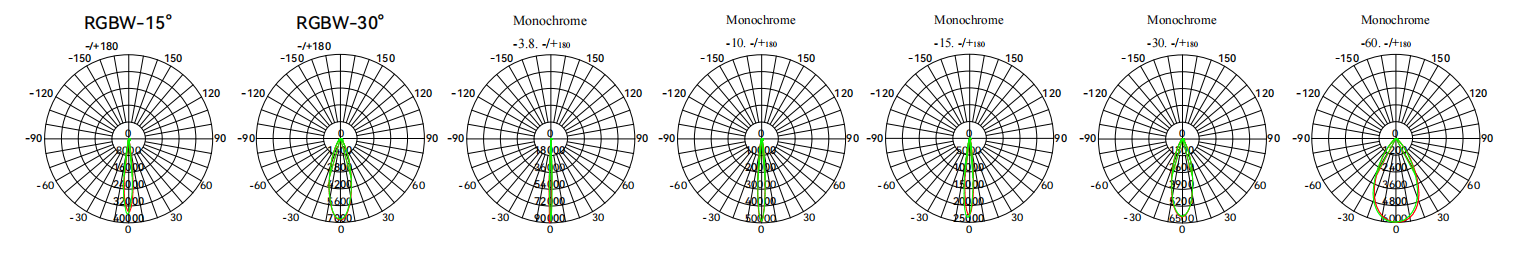

Power distribution curve:

Fixing the fixture bracket Secure the bracket with M8 nuts Adjusting the fixture angle Adjustable angle: -90° to +90°

(Monochrome Always-On) Fixture Wiring (Low Voltage: DC24V/DC36V/DC42V)

• Connect to Constant-Voltage Driver (Internal Wiring)
• Note: The power of fixtures loaded by the constant-voltage driver shall be 80% of the driver’s maximum load power.
• Turn off the power before connecting the fixture (OFF/ON Switch)

(Monochrome Always-On) Fixture Wiring (High Voltage)

• Turn off the power before connecting the fixture (OFF/ON Switch)
• Power Cable Input: 220V AC
• Internal Wiring of Waterproof Junction Box (Connect to LED Power Cable)
• IP67 Waterproof Junction Box
• Fixture Power Cable: 3*1.0mm²
• Note: The power of fixtures loaded by the constant-voltage driver shall be 80% of the driver’s maximum load power.

DMX512 Controlled Fixture Wiring (Low-Voltage Bare Wire, Input Only) DC24V/DC36V/DC42V

• Turn off the power before connecting the fixture (OFF/ON Switch)
• IP67 Waterproof Junction Box
• Note: The power of fixtures loaded by the constant-voltage driver shall not exceed 80% of the driver’s maximum load power.
