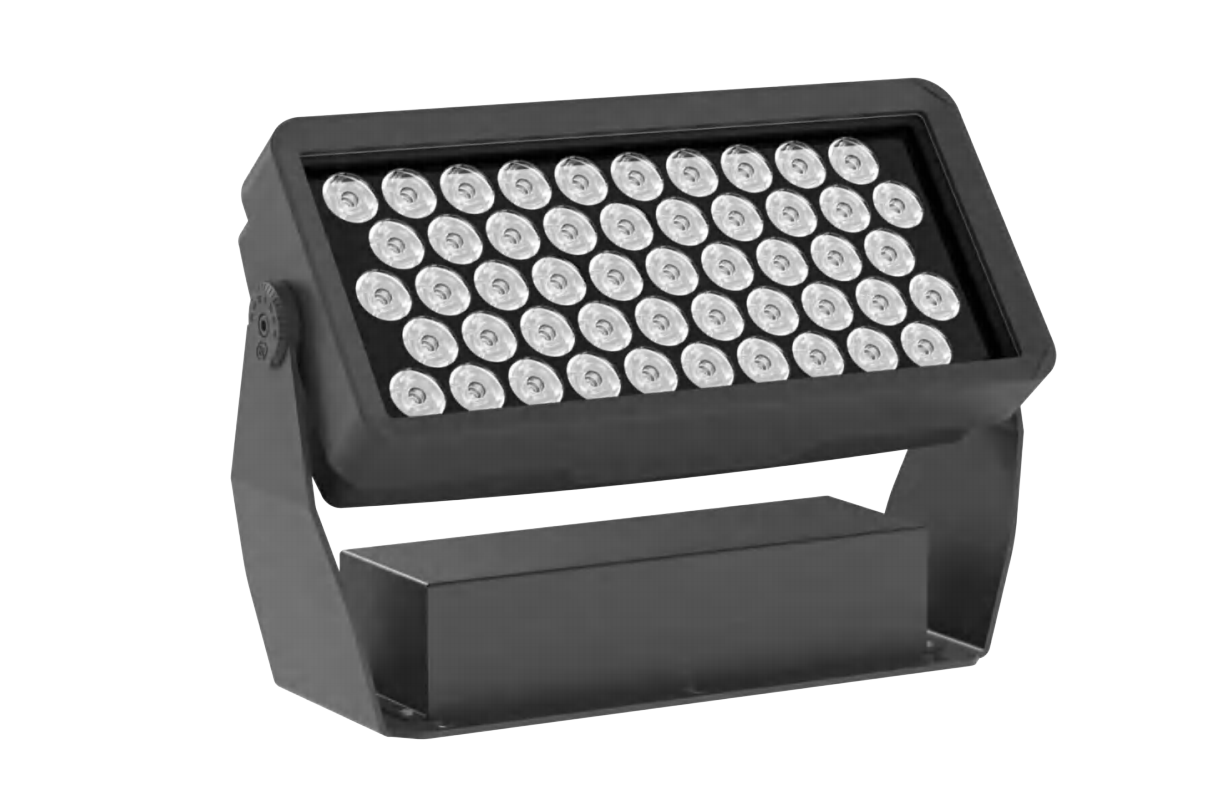

Product picture

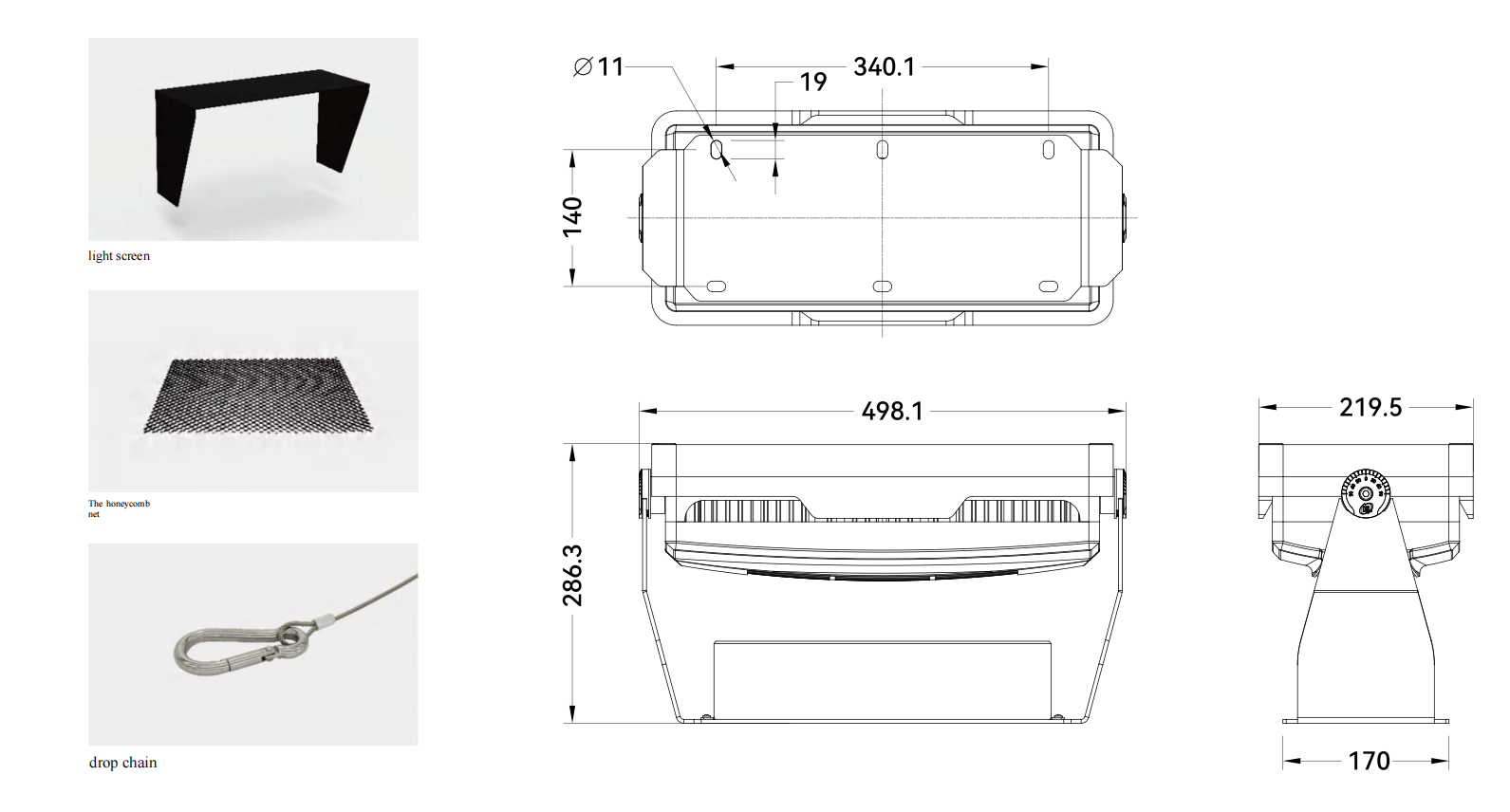

Product Size

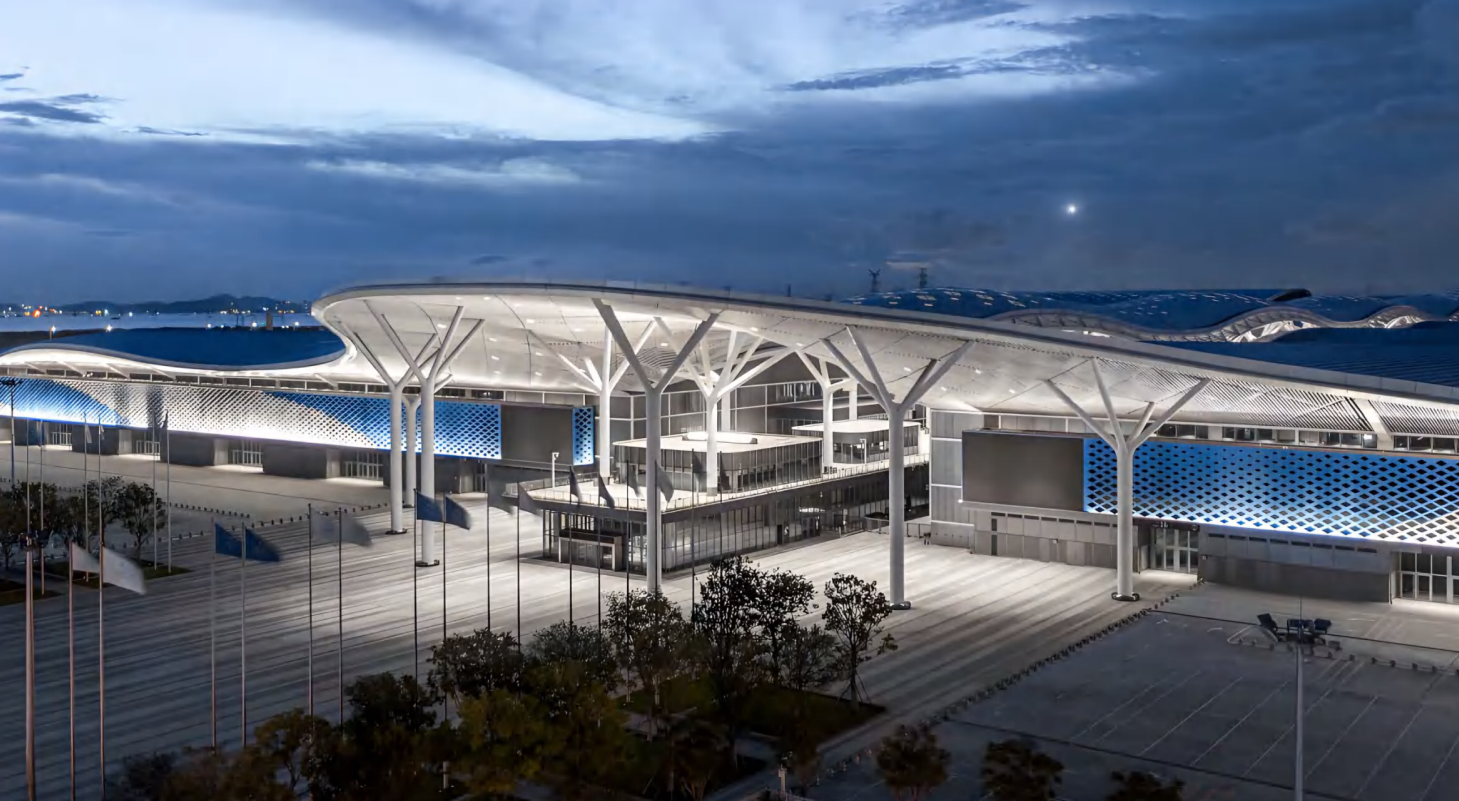

Real case
Product Specification
| Item | Specification |
|---|---|
| Light body material | ADC 12 aluminum alloy lamp body and surface cover (electrostatic spraying of nanoscale high weather corrosion resistant powder, passed 500H neutral salt spray test), 4mm ultra-white tempered glass, 304 stainless steel bracket |
| Physical size | L498.1W219.5H286.3mm (Standard stent) |
| Product power | Max. 450w |
| Product color temperature | RGBW、RGB、2200K-6500K |
| Input voltage | AC220V |
| Control mode | DMX512、ON/OFF |
| Protection grade | IP65 |
| Luminescence angle | 3.5°、5°、10°、12°、15°、20°、30°、40°、60° |
| Operating temperature | -35~45℃ |
| Product weight | 17Kg |
More Models
| Product model | Input voltage | Power | Control method | The number of particles | Colour temperature | Angle |
|---|---|---|---|---|---|---|
| H1201S | AC220V | 300W | ON/OFF | 108 | 2200K-6500K | 10°、20°、30°、40°、60° |
| H1202S | AC220V | 450W | ON/OFF | 144 | 2200K-6500K | 10°、20°、30°、40°、60° |
| H1203S | AC220V | 260W | ON/OFF | 40 | 2200K-6500K | 3.5°、5°、12° |
| H1204S | AC220V | 330W | ON/OFF | 50 | 2200K-6500K | 3.5°、5°、12° |
| H1205C | AC220V | 300W | DMX512 | 108 | 2200K-6500K | 10°、20°、30°、40°、60° |
| H1206C | AC220V | 450W | DMX512 | 144 | 2200K-6500K | 10°、20°、30°、40°、60° |
| H1207C | AC220V | 300W | DMX512 | 108 | RGBW (3000K、4000K、5000K) | 15°、30°、40°、60° |
| H1208C | AC220V | 450W | DMX512 | 144 | RGBW (3000K、4000K、5000K) | 15°、30°、40°、60° |
| H1209C | AC220V | 260W | DMX512 | 40 | R+G+B+W (3000K、4000K、5000K) | 3.5°、5°、12° |
| H1210C | AC220V | 330W | DMX512 | 50 | R+G+B+W (3000K、4000K、5000K) | 3.5°、5°、12° |

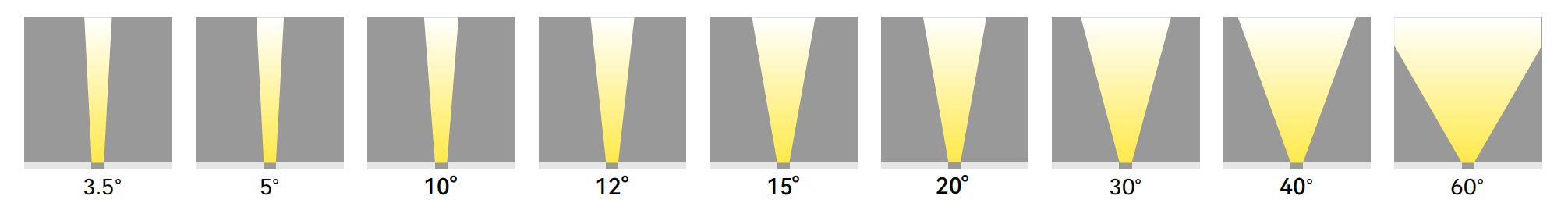

Optional beam angle:

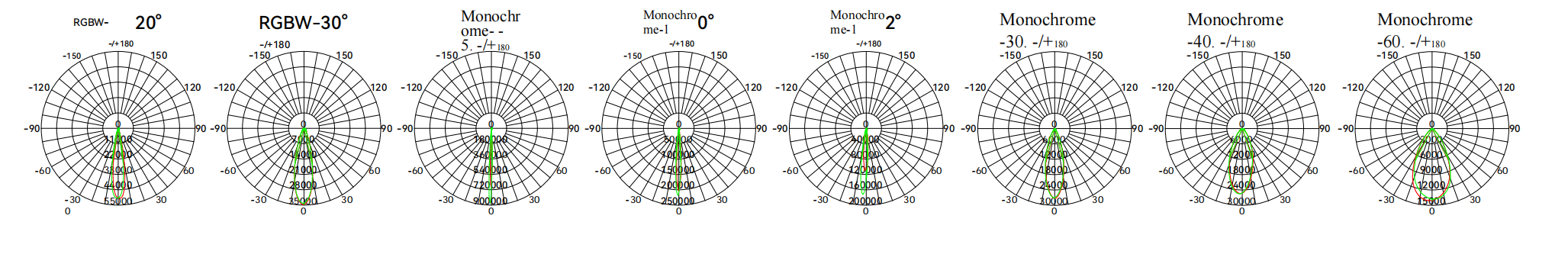

Power distribution curve:

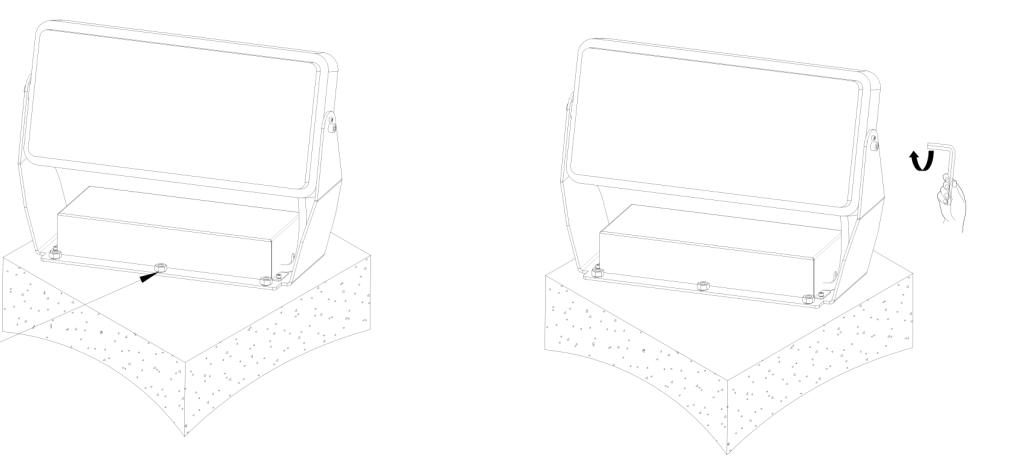

Secure the Fixture Mounting Bracket
Fasten the bracket with M10 nuts
Adjust the Fixture Angle and Tighten the Bolts to Secure the Fixture at the Desired Angle
High-voltage fixture wiring (bare wires)
High-voltage fixture signal wiring (4-core bare wires)
Fixture signal wiring (5-core bare wires, signal: one input and one output)

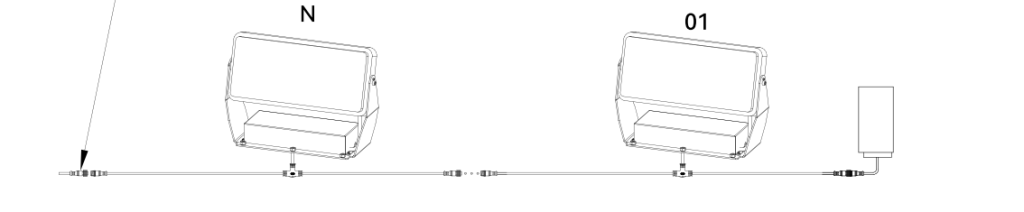

High-voltage fixture signal wiring (waterproof connector)
