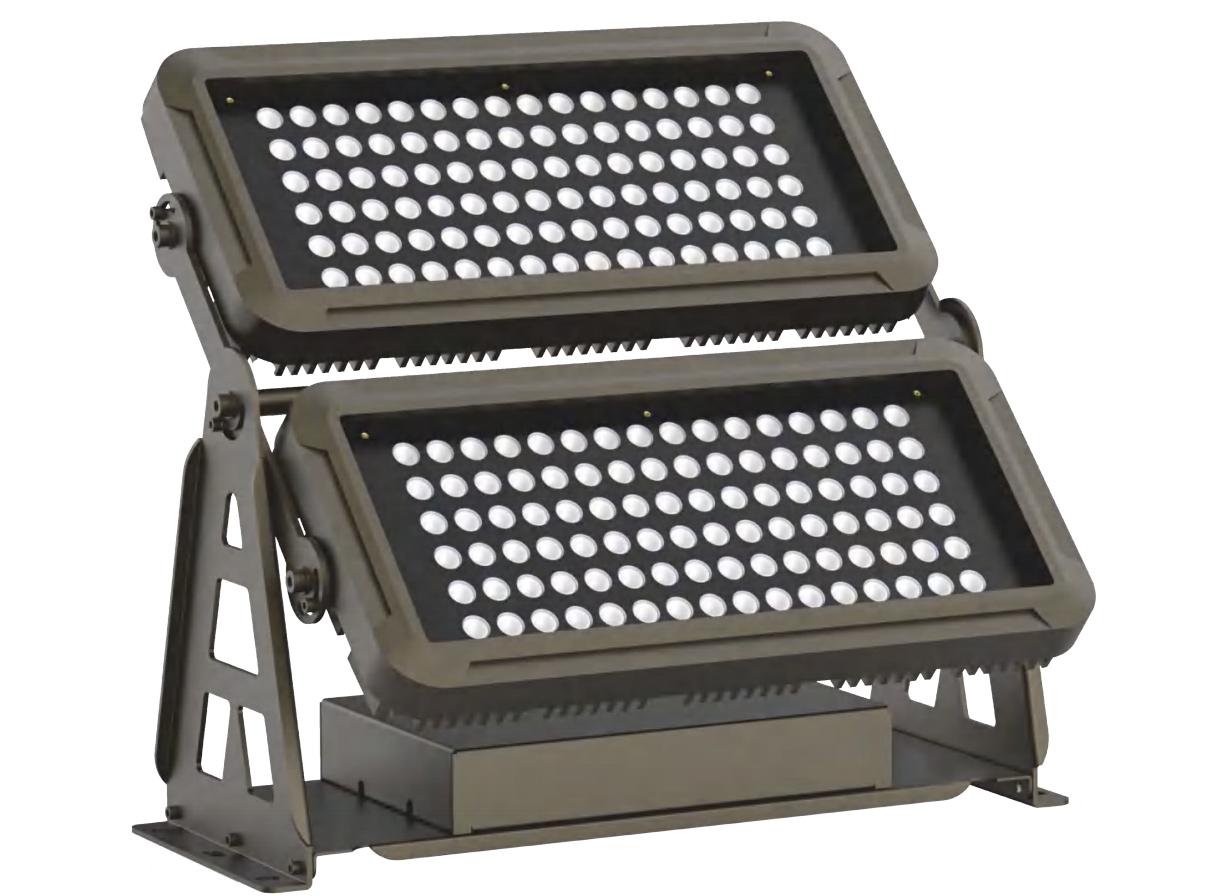

Product picture

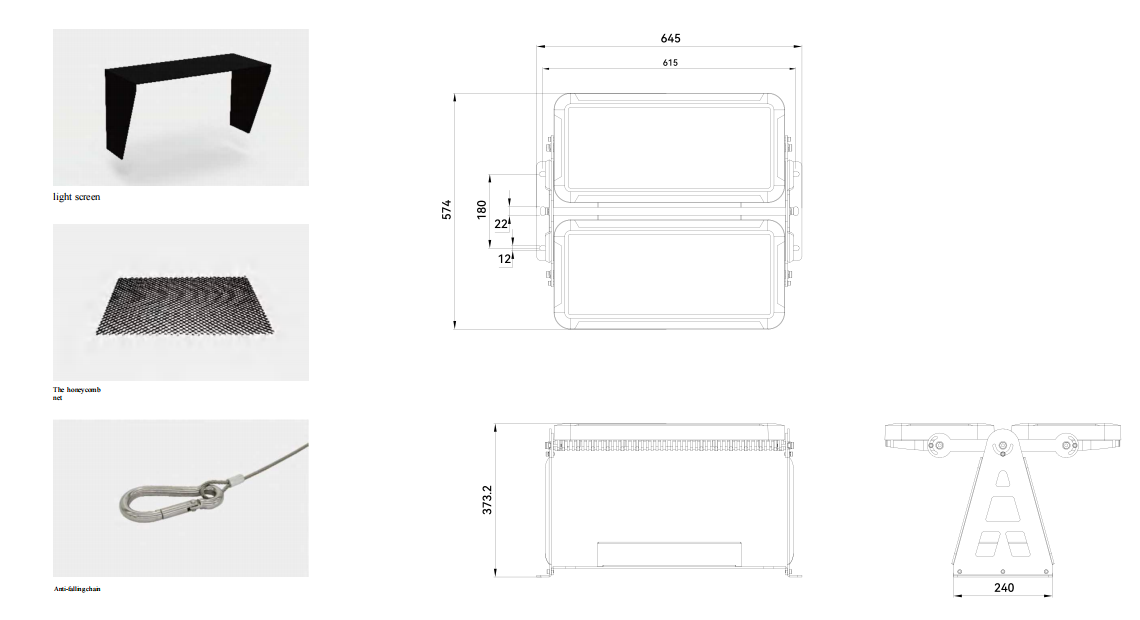

Product Size

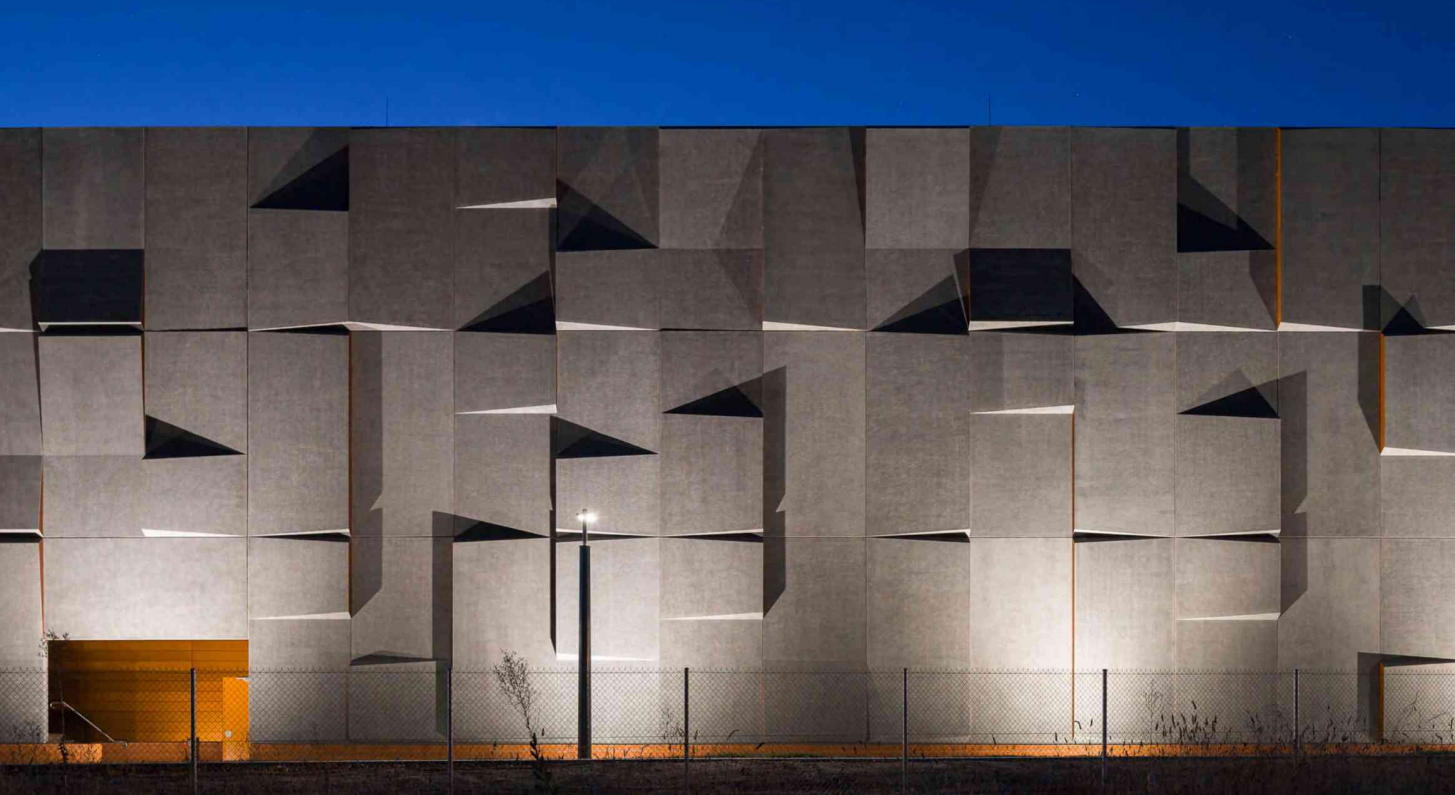

Real case
Product Specification
| Item | Specification |
|---|---|
| Light body material | ADC 12 aluminum alloy lamp body and face cover, 4mm ultra-white tempered glass, 304 stainless steel bracket |
| Surface preparation | Electrostatic spraying of nanoscale high weather corrosion resistant powder (through 500H neutral salt spray test) |
| Physical size | L645W574H373.2mm (Standard stent) |
| Product power | Maximum 480w |
| Product color temperature | RGBW、RGB、2200K-6500K |
| Input voltage | AC220V |
| Control method | DMX512、ON/OFF |
| Levels of protection | IP65 |
| Luminescence Angle | 5°、10°、15°、20°、30°、35°、40°、45°、60° |
| Working temperature | -35~45℃ |
| Product weight | 24Kg |
More Models
| Product model | Input voltage | Power | Control method | The number of particles | Colour temperature | Angle |
|---|---|---|---|---|---|---|
| H1101S | AC220V | 400W | ON/OFF | 192 | 2200K-6500K | 10°、20°、30°、40°、60° |
| H1102S | AC220V | 300W | ON/OFF | 120 | 2200K-6500K | 10°、20°、30°、40°、60° |
| H1103S | AC220V | 400W | ON/OFF | 120 | 2200K-6500K | 5°、10°、15°、20°、35°、45° |
| H1104C | AC220V | 400W | DMX512 | 192 | 2200K-6500K | 10°、20°、30°、40°、60° |
| H1105C | AC220V | 400W | DMX512 | 192 | RGBW | 15°、30°、40°、60° |
| H1106C | AC220V | 300W | DMX512 | 120 | RGBW | 15°、30°、40°、60° |
| H1107C | AC220V | 480W | DMX512 | 192 | RGBW | 15°、30°、40°、60° |
| H1108C | AC220V | 400W | DMX512 | 120 | R+G+B+W | 5°、10°、15°、20°、35°、45° |

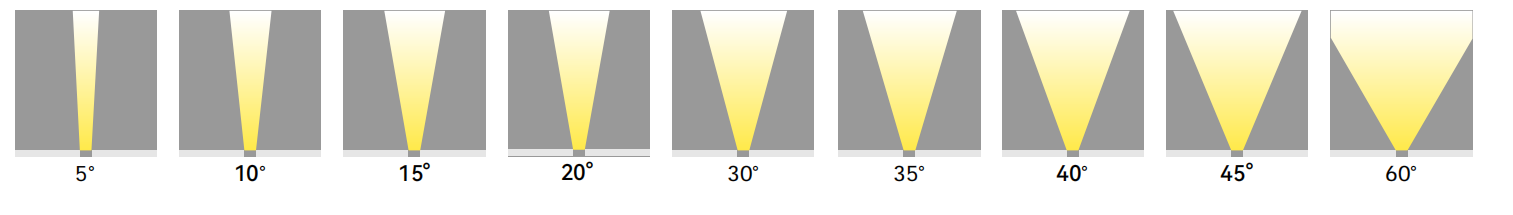

Optional beam angle:

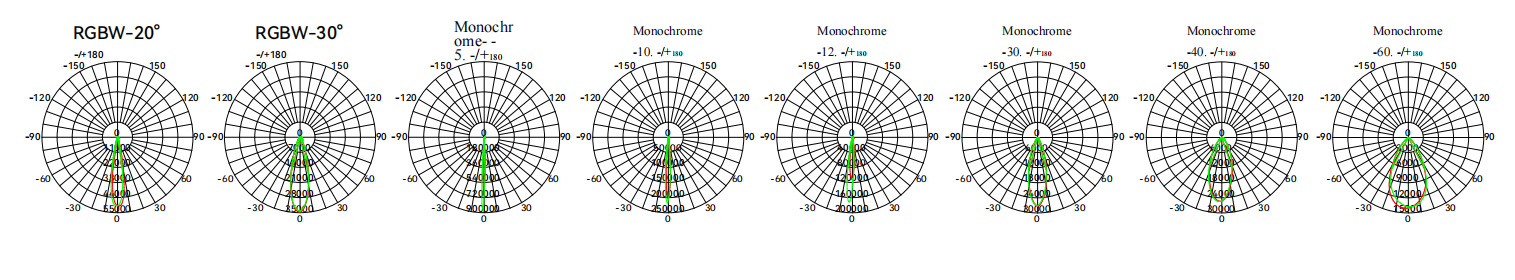

Power distribution curve:
Fix the Fixture Mounting Bracket
Secure the bracket with M12 nuts
Adjust the Fixture Angle and Tighten the Bolts to Fix the Fixture at the Desired Angle
Adjust the light source surface to the required projection angle, then use a 5# wrench to tighten the angle adjustment bolts on both ends
High-voltage fixture wiring (power bare wire, no signal wire)
High-voltage fixture wiring (power bare wire, signal bare wire: one input and one output)
High-voltage fixture wiring (power bare wire, signal waterproof connector: one input and one output)
